Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 91
Specifications
Groove Density: | 900 l/mm |
---|---|
Blaze Wavelength: | 350 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 90 mm |
Dimension (Height): | 90 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions
What are the specifications for custom master ruled gratings for CO2 lasers?
The custom master ruled gratings for CO2 lasers have a ruling density of 150 l/mm, a coating of gold, a substrate material of stainless steel, a substrate dimension of 25 mm diameter on 25x25 mm, and an absolute efficiency higher than 95% for TM polarization over 9 to 11 µm wavelength range.
What is the typical efficiency performance of ruled plane gratings?

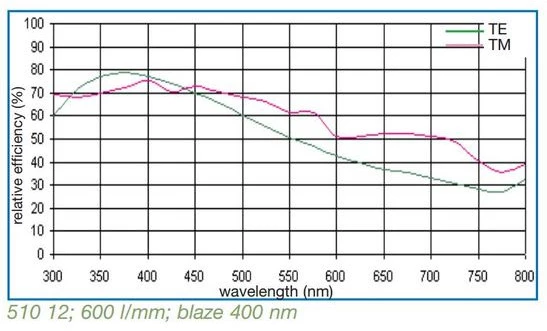

The efficiency curves for ruled plane gratings are absolute theoretical efficiencies, calculated using rigorous electromagnetic theory, taking into account the true groove profiles of manufactured gratings measured with an atomic force microscope (AFM).
What are ruled plane gratings used for?
Ruled plane gratings are used in monochromators, spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What is the commitment to quality for HORIBA Jobin Yvon?
HORIBA Jobin Yvon is ISO9001:2000 certified and committed to customer satisfaction and product quality.
What are the dimensions of high-precision replica gratings?
The dimensions of high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
