Reflection Gratings for 1030 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2021
Description

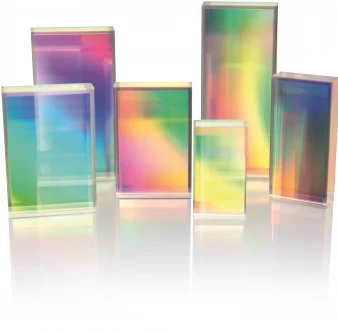

Reflection Gratings for 1030 nm are a cutting-edge solution offered by Gitterwerk GmbH, a pioneering company based in Magdala, Germany. These multi-layer dielectric reflection gratings are meticulously designed to meet the highest standards of quality and efficiency. With a center wavelength of 1030 nm, these gratings are engineered to deliver exceptional performance, making them an ideal choice for advanced optical applications.
Founded in 2015 in Jena, Germany, Gitterwerk GmbH has quickly established itself as a leader in the field of diffraction gratings. The company is driven by a passionate team dedicated to innovation and excellence. At the heart of Gitterwerk's success is a commitment to fostering a collaborative and supportive work environment, which fuels their ongoing quest to revolutionize the laser market. This dedication to quality and teamwork ensures that each product not only meets but exceeds customer expectations.
Gitterwerk's reflection gratings are crafted from high-quality fused silica, specifically Heraeus Suprasil 3002, ensuring durability and precision. With customizable grating sizes ranging from 12 x 10 mm to 132 x 67 mm, these products are tailored to meet specific customer requirements. The gratings boast a remarkable diffraction efficiency of up to 98.0%, highlighting their superior performance in various conditions. Whether you are looking for top-notch efficiency or bespoke design, Gitterwerk's reflection gratings are the perfect choice for your optical needs.
Reflection Gratings for 1030 nm
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Dimension (Length): | 137 mm |
| Dimension (Height): | 56 mm |
| Dimension (Thickness): | 6.35 mm |
Features
- High Diffraction Efficiency: Achieve a diffraction efficiency of ≥98.0%, ensuring superior performance in laser applications.
- Optimized for 1030 nm: Specifically designed for a center wavelength of 1030 nm, making it ideal for precise laser applications.
- Multi-Layer Dielectric Design: Features a multi-layer dielectric construction for enhanced durability and performance.
- Customizable Grating Sizes: Available in sizes ranging from 12 x 10 mm to 132 x 67 mm, with customization options to meet specific requirements.
- Wide Angle of Incidence Range: Supports an angle of incidence from 55° to 78°, providing flexibility in various setups.
- High Line Density: Offers a line density of 1739.1 lines/mm, ensuring precise and efficient diffraction.
- TE Polarization: Optimized for TE (s-pol.) polarization, enhancing compatibility with specific laser systems.
- Quality Substrate Material: Constructed with high-quality fused silica, specifically Heraeus Suprasil 3002, for superior optical performance.
- Angular Dispersion: Provides an angular dispersion range of -0.425°/nm to -0.171°/nm, depending on the center wavelength and angle of incidence.
- Robust Substrate Thickness: Features a substrate thickness of 6.35 mm, ensuring stability and durability.
Applications
- Laser Systems: Enhance the performance of laser systems operating at 1030 nm with high diffraction efficiency.
- Spectroscopy: Utilize in spectroscopic applications requiring precise wavelength separation and high resolution.
- Optical Communication: Improve signal processing in optical communication systems with efficient light management.
- Scientific Research: Support advanced research in physics and optics with customizable grating designs.
- Industrial Applications: Integrate into industrial laser systems for cutting, welding, and material processing.
- Medical Technology: Apply in medical laser systems for precise surgical and diagnostic procedures.
- Custom Optical Systems: Design bespoke optical systems with customizable grating sizes and specifications.
Frequently Asked Questions
The center wavelength of the Reflection Gratings is 1030 nm.
The diffraction efficiency of the gratings is at least 98.0%, depending on the center wavelength and angle of incidence.
The grating period is 575 nm, and the line density is 1739.1 lines per millimeter.
The angle of incidence range for these gratings is from 55° to 78°.
The substrate material used is fused silica, specifically Heraeus Suprasil 3002.
Yes, the grating sizes can be customized to meet specific demands, with available sizes ranging from 12 x 10 mm to 132 x 67 mm.
These gratings support TE (s-polarization).
