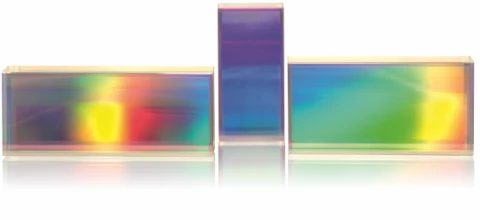

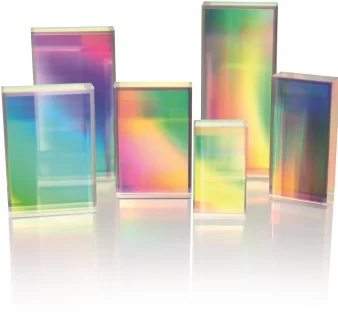

Transmission Gratings for 2 μm

Name: Transmission Gratings for 2 μm
Brand: Gitterwerk GmbH
Availability: InStock

Description

Transmission Gratings for 2 µm are a specialized optical component designed to meet the precise needs of your application. Crafted from high-quality fused silica, these gratings are tailored to deliver exceptional performance in a variety of settings. At Gitterwerk GmbH, we pride ourselves on our ability to customize each grating to meet the specific requirements of our clients, ensuring optimal efficiency and reliability.

Founded in 2015 in Jena, Germany, Gitterwerk GmbH is a dynamic start-up driven by a team of passionate pioneers. Our commitment to excellence and innovation has established us as a leading provider of diffraction gratings with world-renowned efficiencies. Our team spirit and dedication to perfection fuel our mission to shape the future of the laser market. We believe that our people are our greatest asset, and we are committed to fostering a respectful and encouraging work environment.

Our Transmission Gratings are engineered with precision to ensure high diffraction efficiency and angular dispersion. The use of fused silica with reduced OH content guarantees superior optical performance and durability. With customizable substrate thickness and dimensions, our gratings are designed to seamlessly integrate into your systems, providing unmatched performance and reliability.

Join us at Gitterwerk GmbH and become part of our inspiring story. We are dedicated to delivering top-quality gratings that meet the highest standards of excellence, ensuring that you receive the best possible solution for your optical needs. Experience the difference with our high-quality gratings, designed and manufactured with precision and care.

Specifications

Substrate Material:	Fused Silica
Dimension (Length):	137 mm
Dimension (Height):	56 mm

Download Data Sheet

Features

Customized Fused Silica Gratings: Tailored to meet your specific application needs, ensuring optimal performance and precision.
High Diffraction Efficiency: Achieve a diffraction efficiency of ≥97.5% at center wavelengths, including AR coating, for superior optical performance.
Wide Range of Center Wavelengths: Available from 1840 nm to 2350 nm, catering to diverse optical requirements.
Versatile Grating Periods: Choose from grating periods ranging from 1100 nm to 1666 nm, allowing for flexibility in design and application.
TE Polarization: All gratings are optimized for TE (s-pol.) polarization, ensuring consistent and reliable results.
Precise Angle of Incidence: Designed with angles of incidence from 36.4° to 68.7°, enabling accurate and efficient light manipulation.
Angular Dispersion: Offers angular dispersion values from -0.043°/nm to -0.144°/nm, providing detailed control over light dispersion.
High-Quality Substrate Material: Made from Fused Silica: Heraeus Suprasil 3002 with reduced OH content of <1 ppm, ensuring durability and clarity.
Customizable Substrate Thickness and Formats: Available in popular formats and customizable to meet your specific demands, with thickness options of 6.35 mm and 3.00 mm.
German Engineering Excellence: Manufactured by Gitterwerk GmbH, a company renowned for its high-quality diffraction gratings and commitment to innovation in the laser market.

Applications

Laser Spectroscopy: Enhance precision in laser spectroscopy applications with high-efficiency transmission gratings.
Optical Coherence Tomography (OCT): Improve imaging quality in OCT systems by utilizing customized gratings for specific wavelength requirements.
Telecommunications: Optimize wavelength division multiplexing (WDM) systems with gratings designed for 2 µm applications.
Environmental Monitoring: Facilitate accurate gas detection and analysis through tailored gratings for specific absorption lines.
Biomedical Imaging: Enhance imaging capabilities in biomedical devices with high-efficiency gratings for near-infrared applications.
Laser Manufacturing: Improve precision and efficiency in laser-based manufacturing processes with customized grating solutions.
Scientific Research: Support advanced research projects requiring precise wavelength control and high diffraction efficiency.
Metrology: Enhance measurement accuracy in metrology applications with gratings designed for specific optical requirements.
Defense and Security: Improve detection and analysis capabilities in defense systems with high-performance transmission gratings.
Astronomy: Enhance spectral analysis in astronomical instruments with gratings optimized for 2 µm wavelengths.

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Germany

Sold by:

Gitterwerk GmbH

On FindLight:

since 2021

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the transmission gratings made of?

The transmission gratings are made of fused silica, specifically Heraeus Suprasil 3002 with reduced OH content of < 1 ppm.

What is the diffraction efficiency of the gratings?

The diffraction efficiency of the gratings is at least 97.5%, including AR coating, at the center wavelength.

What are the available center wavelengths for these gratings?

The available center wavelengths for these gratings range from 1840 nm to 2350 nm.

Can the substrate dimensions be customized?

Yes, the substrate dimensions can be customized to meet specific demands.

What is the line density range for these gratings?

The line density for these gratings ranges from 600.2 l/mm to 909.1 l/mm.

What is the angle of incidence for these gratings?

The angle of incidence for these gratings varies from 36.4° to 68.7°, depending on the specific grating.
