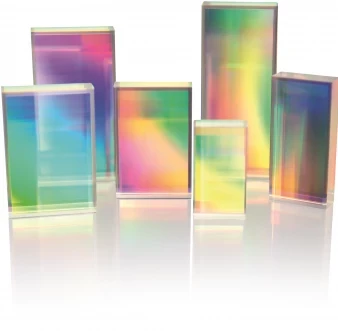

2 µm Multi-Layer Dielectric Reflection Gratings, 98% Efficiency
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2021
Description
Reflection Gratings for 2 µm by Gitterwerk GmbH represent the pinnacle of precision and efficiency in the field of diffraction gratings. These multi-layer dielectric reflection gratings are meticulously crafted to deliver exceptional performance, making them an ideal choice for advanced laser applications. With a focus on quality and innovation, Gitterwerk GmbH has established itself as a leader in the industry, offering products that are both reliable and efficient.
Founded in 2015 in Jena, Germany, Gitterwerk GmbH is a dynamic start-up driven by a team of passionate pioneers. The company is dedicated to providing high-quality diffraction gratings with world-renowned efficiencies. The team spirit and a shared passion for perfection are at the core of Gitterwerk's operations, fueling their commitment to positively shaping the future of the laser market. The company prides itself on fostering a respectful, open-minded, and encouraging work environment, which is reflected in the quality of their products.
The Reflection Gratings for 2 µm are designed with precision, featuring a center wavelength of 1975 nm and a grating period of 1100 nm. The line density stands at 909.1 l/mm, and the gratings are optimized for TE (s-pol.) polarization. With an angle of incidence ranging from 55° to 78°, these gratings achieve a diffraction efficiency of 98.0% or higher, depending on the center wavelength and angle of incidence. The substrate material is high-quality fused silica, specifically Heraeus Suprasil 3002, with a thickness of 6.35 mm. The grating sizes are customizable, ranging from 12 x 10 mm to 132 x 67 mm, to meet specific demands.
Gitterwerk GmbH is committed to delivering top conditions, high availability, and individual grating design, ensuring that each product meets the unique needs of its customers. By choosing Gitterwerk's Reflection Gratings for 2 µm, you are not only investing in superior technology but also becoming part of a story driven by innovation and excellence.
2 µm Multi-Layer Dielectric Reflection Gratings, 98% Efficiency
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Dimension (Length): | 137 mm |
| Dimension (Height): | 56 mm |
| Dimension (Thickness): | 6.35 mm |
Features
- High Diffraction Efficiency: Achieves a minimum diffraction efficiency of 98.0%, ensuring superior performance in optical applications.
- Optimal for 2 µm Wavelengths: Specifically designed for a center wavelength of 1975 nm, making it ideal for mid-infrared laser applications.
- Customizable Grating Sizes: Available in sizes ranging from 12 x 10 mm to 132 x 67 mm, with options for customization to meet specific requirements.
- Multi-Layer Dielectric Design: Utilizes advanced multi-layer dielectric technology for enhanced efficiency and durability.
- TE Polarization: Optimized for TE (s-polarization), providing excellent performance in polarized light applications.
- Wide Angle of Incidence Range: Supports an angle of incidence from 55° to 78°, offering flexibility in optical system design.
- High-Quality Substrate: Constructed with fused silica, specifically Heraeus Suprasil 3002, for superior optical clarity and stability.
- Precision Grating Period: Features a grating period of 1100 nm and a line density of 909.1 lines/mm, ensuring precise optical performance.
- German Engineering: Manufactured by Gitterwerk GmbH, a leading provider of high-quality diffraction gratings with a commitment to excellence and innovation.
Applications
- Medical Applications: Improve accuracy in laser surgeries and medical imaging techniques.
- Telecommunications: Optimize signal processing and data transmission in fiber optic networks.
- Spectroscopy: Increase resolution and sensitivity in spectroscopic measurements and analysis.
- Scientific Research: Facilitate advanced research in optics and photonics, including laser development and testing.
- Environmental Monitoring: Enhance detection and analysis of atmospheric gases and pollutants.
- Defense and Security: Improve laser-based surveillance, targeting, and communication systems.
- Industrial Automation: Boost performance in automated inspection and quality control systems.
Frequently Asked Questions
The Reflection Gratings have a center wavelength of 1975 nm, a grating period of 1100 nm, and a line density of 909.1 l/mm. They are designed for TE (s-pol.) polarization and have an angle of incidence between 55° and 78°. The diffraction efficiency is at least 98.0%, and the angular dispersion ranges from -0.241 to -0.090 °/nm. The substrate material is fused silica (Heraeus Suprasil 3002) with a thickness of 6.35 mm. Grating sizes can range from 12 x 10 mm to 132 x 67 mm and are customizable.
The diffraction efficiency of the Reflection Gratings for 2 µm is at least 98.0%.
The grating sizes range from 12 x 10 mm to 132 x 67 mm, and they can be customized to meet specific demands.
The angular dispersion of the gratings ranges from -0.241 to -0.090 °/nm, depending on the center wavelength and angle of incidence.
The substrate material used is fused silica, specifically Heraeus Suprasil 3002.
The angle of incidence for the Reflection Gratings ranges from 55° to 78°.
