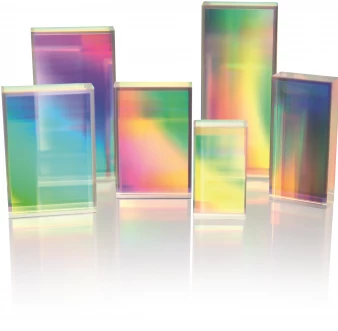

Thumbnail of Transmission Gratings for NIR photo 1

Description

Fused Silica Transmission Gratings for NIR are a pinnacle of optical engineering, designed to deliver exceptional performance in near-infrared applications. These high-efficiency gratings are meticulously customized to meet the specific needs of your application, ensuring optimal results. Crafted by Gitterwerk GmbH, a company renowned for its dedication to quality and innovation, these gratings are a testament to the company's commitment to excellence in the field of optics.

Founded in 2015 in Jena, Germany, Gitterwerk GmbH is a dynamic start-up driven by a team of passionate pioneers. The company has quickly established itself as a leader in the production of high-quality diffraction gratings, known for their world-renowned efficiencies. At the heart of Gitterwerk's success is its team spirit and a shared passion for perfection. The company is dedicated to fostering a respectful, open-minded, and encouraging work environment, which is reflected in the superior quality of its products.

Gitterwerk's Fused Silica Transmission Gratings are crafted from Heraeus Suprasil 3002, a substrate material known for its reduced OH content, ensuring minimal absorption and high transmission efficiency. These gratings are available in various customizable formats to suit your specific demands, making them an ideal choice for a wide range of optical applications. With a focus on high availability and individual grating design, Gitterwerk GmbH is your best partner for achieving unparalleled optical performance.

For more information or to discuss your specific requirements, please contact Gitterwerk GmbH at their headquarters in Magdala, Germany. Their dedicated team is ready to assist you in finding the perfect solution for your optical needs.

Transmission Gratings for NIR

Visit the Gitterwerk GmbH Store

Specifications

Substrate Material: Fused Silica
Dimension (Length): 137 mm
Dimension (Height): 56 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Efficiency Gratings: Our Fused Silica Transmission Gratings are designed for Near-Infrared (NIR) applications, ensuring exceptional performance with diffraction efficiencies of up to 98%.
  • Customizable Solutions: Tailor your gratings to meet specific application needs with customizable grating periods, line densities, and substrate dimensions.
  • Substrate Material: Made from high-quality Fused Silica (Heraeus Suprasil 3002) with reduced OH content of < 1 ppm for superior optical clarity.
  • Mechanical Specifications: Available in various substrate thicknesses and popular formats, customizable to your specific demands.
  • Company Expertise: Gitterwerk GmbH, founded in 2015 in Jena, Germany, is a pioneer in high-quality diffraction gratings, driven by team spirit and a passion for perfection.

Applications

  • Laser Spectroscopy: Enhance the precision of laser spectroscopy measurements with high-efficiency gratings designed for near-infrared applications.
  • Optical Communication: Improve signal processing in optical communication systems by utilizing gratings that offer high diffraction efficiency and low angular dispersion.
  • Biomedical Imaging: Utilize in advanced imaging techniques, such as OCT (Optical Coherence Tomography), to achieve superior resolution and clarity.
  • Material Analysis: Facilitate detailed material analysis and characterization through precise wavelength separation and high transmission efficiency.
  • Laser Manufacturing: Optimize laser manufacturing processes by integrating gratings that provide consistent performance and high availability.
  • Scientific Research: Support cutting-edge scientific research with customizable grating designs tailored to specific experimental needs.

Frequently Asked Questions

What are Fused Silica Transmission Gratings for NIR?
Fused Silica Transmission Gratings for NIR are high-efficiency diffraction gratings designed for near-infrared applications, customized to meet specific user requirements.
What is the diffraction efficiency of these gratings?
The diffraction efficiency of these gratings is 98.0% for the 1120 nm center wavelength and 97.5% for other specified center wavelengths, including anti-reflective coating.
What substrate material is used for these gratings?
The substrate material used is Fused Silica: Heraeus Suprasil 3002, which has a reduced OH content of less than 1 ppm.
Can the substrate dimensions be customized?
Yes, the substrate dimensions can be customized to meet specific demands, with popular formats including sizes like 137 x 28 mm and 65 x 25 mm.
What is the range of center wavelengths available for these gratings?
The available center wavelengths for these gratings range from 1120 nm to 1430 nm.
What is the line density of these gratings?
The line density of these gratings varies from 800.0 lines/mm to 1600.0 lines/mm, depending on the specific grating.
How can I contact Gitterwerk GmbH for more information?
You can contact Gitterwerk GmbH by phone at +49 36454 169910 or by email at info@gitterwerk.com. More information is also available on their website at www.gitterwerk.com.

Got more questions? Use the inquiry form to ask the supplier directly.
