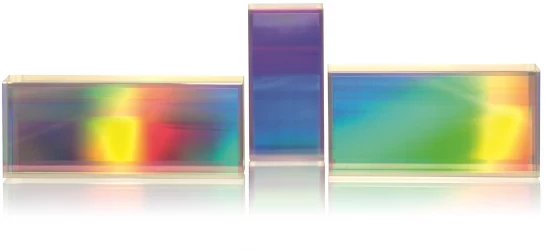

Transmission Gratings for UV
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2021
Description
Transmission Gratings for UV are a specialized product offered by Gitterwerk GmbH, a pioneering company based in Magdala, Germany. These gratings are crafted from high-quality fused silica, specifically Heraeus Suprasil 3002, known for its exceptional optical properties and reduced OH content. Designed to meet the rigorous demands of various applications, these gratings are customizable, ensuring they fit seamlessly into your specific requirements.
Founded in 2015 in Jena, Germany, Gitterwerk GmbH has quickly established itself as a leader in the field of diffraction gratings. The company is driven by a team of passionate pioneers dedicated to delivering products with world-renowned efficiencies. At the heart of Gitterwerk's success is a commitment to team spirit and a shared passion for perfection, which fuels their desire to contribute positively to the future of the laser market.
Gitterwerk GmbH prides itself on creating a respectful and open-minded work environment, fostering innovation and excellence. Their transmission gratings are designed with precision, offering high diffraction efficiency and customizable grating sizes to meet diverse needs. With a focus on quality and availability, Gitterwerk ensures that each product is crafted to the highest standards, making them a trusted partner in the industry.
For more information or to discuss your specific needs, you can reach out to Gitterwerk GmbH at their office in Magdala, Germany. Their team is ready to assist you in becoming part of their inspiring story and to provide you with the best solutions for your optical requirements.
Transmission Gratings for UV
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Dimension (Length): | 137 mm |
| Dimension (Height): | 56 mm |
Features
- Customized Fused Silica Gratings: Tailored to meet your specific application needs, ensuring optimal performance and precision.
- High Diffraction Efficiency: Achieves a diffraction efficiency of ≥82.0%, including AR coating, for superior performance in UV applications.
- Wide Range of Grating Sizes: Available in dimensions from 12 x 10 mm to 132 x 67 mm, customizable to fit your requirements.
- Advanced Substrate Material: Made from Heraeus Suprasil 3002 fused silica with reduced OH content of < 1 ppm for enhanced durability and clarity.
- Optimal Angular Dispersion: Provides an angular dispersion of -0.188°/nm at the center wavelength for precise light manipulation.
- Versatile Polarization: Supports TE+TM (unpolarized) polarization modes, ensuring flexibility in various applications.
- Precision Grating Period: Features a grating period of 333 nm and a line density of 3003.0 l/mm for high-resolution diffraction.
- Reliable Performance: Designed for a center wavelength of 266 nm with an angle of incidence of 23.5°.
Applications
- UV Spectroscopy: Ideal for applications requiring precise wavelength separation and analysis in the ultraviolet spectrum.
- Laser Tuning: Used in laser systems to finely tune the output wavelength, enhancing performance and accuracy.
- Optical Communication: Enhances data transmission by efficiently managing light signals in fiber optic networks.
- Scientific Research: Essential for experiments that demand high diffraction efficiency and accuracy in UV light manipulation.
- Material Analysis: Facilitates the study of material properties by dispersing light into its component wavelengths.
- Environmental Monitoring: Utilized in devices that monitor UV radiation levels, contributing to environmental and health safety.
- Biomedical Applications: Supports advanced imaging and diagnostic techniques by providing precise light control.
- Quality Control: Used in manufacturing processes to ensure product quality through precise optical measurements.
Frequently Asked Questions
The center wavelength of the transmission gratings is 266 nm.
The grating period of the UV transmission gratings is 333 nm.
The line density of the gratings is 3003 lines per millimeter (l/mm).
The substrate material used for the gratings is fused silica, specifically Heraeus Suprasil 3002 with reduced OH content of less than 1 ppm.
The diffraction efficiency of the gratings is at least 82.0%, averaged over polarization modes and including AR coating.
Yes, the grating sizes can be customized to meet specific demands, with available sizes ranging from 12 x 10 mm to 132 x 67 mm.
The angular dispersion of the gratings is -0.188 degrees per nanometer at the center wavelength.
