Transmission Gratings for 1030 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2021
Description

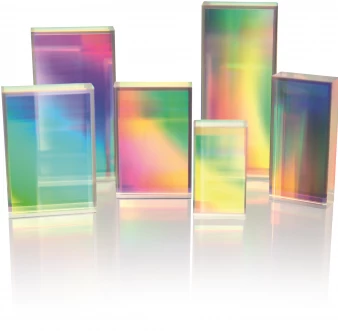

Fused Silica Transmission Gratings for 1030 nm are a pinnacle of precision and efficiency in the realm of optical components. Crafted by Gitterwerk GmbH, these gratings are specifically designed for high-efficiency pulse compression applications. The use of fused silica as a substrate ensures exceptional durability and optical clarity, making these gratings an ideal choice for demanding laser systems. With a focus on achieving world-renowned efficiencies, Gitterwerk's gratings are engineered to deliver outstanding performance at the center wavelength of 1030 nm.
Gitterwerk GmbH, located in Magdala, Germany, is a company driven by innovation and a passion for excellence. Since its inception in 2015, Gitterwerk has been at the forefront of developing cutting-edge diffraction gratings. The company's commitment to quality and precision is evident in every product they create. The team at Gitterwerk is dedicated to fostering a collaborative and inspiring work environment, ensuring that each grating produced meets the highest standards of performance and reliability.
The Fused Silica Transmission Gratings are characterized by their high diffraction efficiency, which is crucial for maximizing the performance of laser systems. These gratings are available in various grating periods and line densities, allowing for customization to suit specific application needs. The use of TE (s-polarization) ensures optimal performance, and the gratings are designed to operate efficiently at various angles of incidence. With customizable substrate thickness and dimensions, Gitterwerk's gratings offer flexibility and adaptability for a wide range of optical setups.
At Gitterwerk GmbH, the pursuit of perfection is a continuous journey. The company's dedication to innovation and quality is reflected in their high-efficiency gratings, which are designed to meet the evolving needs of the laser market. By choosing Gitterwerk's Fused Silica Transmission Gratings, you are investing in a product that embodies precision, reliability, and exceptional performance.
Transmission Gratings for 1030 nm
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Dimension (Length): | 137 mm |
| Dimension (Height): | 56 mm |
Features
- High-Efficiency Gratings: Designed specifically for pulse compression at 1030 nm, these gratings offer exceptional diffraction efficiency of ≥98%, including AR coating.
- Fused Silica Material: Made from Heraeus Suprasil 3002 with reduced OH content of <1 ppm, ensuring high optical quality and durability.
- Customizable Substrate Thickness: Available in thicknesses of 6.35 mm and 3.00 mm, with customizable formats to meet specific demands.
- Wide Range of Grating Periods: Grating periods range from 543 nm to 1000 nm, allowing for various line densities from 1841.6 l/mm to 1000.0 l/mm.
- TE Polarization: Optimized for TE (s-pol.) polarization, ensuring high performance in specific laser applications.
- Precise Angular Dispersion: Offers angular dispersion ranging from -0.333°/nm to -0.066°/nm, providing precise control over light diffraction.
- Optimized Angle of Incidence: Designed for angles of incidence from 31.0° to 71.5°, tailored for specific application needs.
- High Availability and Individual Design: Gitterwerk GmbH provides top conditions, high availability, and the option for individual grating design to suit unique requirements.
Applications
- Pulse Compression: Fused silica transmission gratings are designed for high-efficiency pulse compression, making them ideal for applications in ultrafast laser systems.
- Laser Systems: These gratings are optimized for a center wavelength of 1030 nm, suitable for various laser systems requiring precise wavelength control.
- Optical Communication: With high diffraction efficiency, these gratings can be used in optical communication systems to manage signal dispersion and enhance performance.
- Spectroscopy: The gratings' ability to disperse light efficiently makes them useful in spectroscopic applications for analyzing light properties.
- Research and Development: Ideal for R&D in photonics and optics, these gratings provide reliable performance for experimental setups.
- Custom Optical Solutions: With customizable substrate thickness and dimensions, these gratings can be tailored to specific optical setups and requirements.
- High-Power Laser Applications: The gratings' high efficiency and low OH content substrate make them suitable for high-power laser applications where material integrity is crucial.
Frequently Asked Questions
The center wavelength of the Fused Silica Transmission Gratings is 1030 nm.
The diffraction efficiency of these gratings is at least 98.0%, including AR coating.
The substrate material used is Fused Silica: Heraeus Suprasil 3002 with reduced OH content of < 1 ppm.
The line densities range from 1000.0 l/mm to 1841.6 l/mm.
The angle of incidence for the grating with the highest line density (1841.6 l/mm) is 71.5°.
Yes, the grating sizes are customizable to meet specific demands.
These gratings use TE (s-pol.) polarization.
