How does a diffractive focusing lens work in terms of phase profile and diffraction orders?

A diffractive focusing lens implements a spiral or concentric phase profile, typically approximating a blazed grating that converts an incoming plane wave into a converging spherical wavefront. The microrelief structure is designed to direct as much power as possible into the desired diffraction order (usually the +1 order), while minimizing energy in other orders that would otherwise create stray foci or reduce overall efficiency.

What are the main types of diffractive focusing lenses and their typical use cases?

Common types include binary or multilevel DOEs, Fresnel zone plates, and hybrid refractive-diffractive lenses. Binary DOEs are easier to fabricate but have lower efficiency; multilevel or continuous-relief DOEs provide higher diffraction efficiency and are suited for high-power or high-throughput systems, while hybrid refractive-diffractive lenses are used to correct chromatic aberrations or compress optical path length in imaging and beam delivery systems.

Which key specifications should I evaluate when selecting a diffractive focusing lens for my application?

Critical parameters include design wavelength, focal length, numerical aperture (NA), clear aperture, and diffraction efficiency at the operating wavelength or band. You should also consider substrate material, AR coatings, damage threshold, surface relief depth and feature size, as well as the intended wavelength range (single-line laser vs broadband source) to ensure that efficiency and focal position meet your system requirements.

How should I compare performance between different diffractive focusing lenses from various suppliers?

Compare specified diffraction efficiency curves versus wavelength, the tolerance on focal length and NA, and the maximum allowable wavefront error or MTF where available. Also review fabrication tolerances (minimum feature size, depth accuracy), surface quality and flatness, coating performance, and any data on power handling or LIDT, as these factors directly impact system throughput, stability, and reliability.

What typical lead times, customization options, and pricing factors apply to diffractive focusing lenses?

Stock diffractive lenses at common wavelengths (e.g., 532 nm, 633 nm, 1064 nm) may ship in days, while custom designs with specific phase profiles, substrates, or coatings often require 4–12 weeks depending on feature complexity and volume. Pricing is driven by design complexity (number of phase levels, smallest feature size), wafer or substrate size, material choice (fused silica vs polymers vs IR crystals), coating requirements, and whether you need prototyping quantities or full-volume production.

How can I find and request quotes for diffractive focusing lenses on FindLight without creating an account?

On FindLight, navigate to Optics → Diffractive Optics and Gratings → Diffractive Focusing Lens, then use filters such as wavelength, focal length, substrate material, and aperture to narrow the catalog. You can open individual product pages to compare specs in the parameter tables and use the built-in contact or “Request Quote” form to send technical requirements directly to suppliers without registration; responses are handled via the email address you provide.

Filter Products

Optics
Diffractive Optics and Gratings
Diffractive Focusing Lens

Diffractive Focusing Lens Solutions for Beam Control

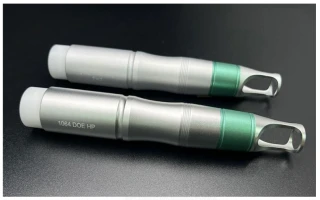

DOE Handpiece for Laser Skin Treatment
