DOE Handpiece for Laser Skin Treatment
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2018
Description

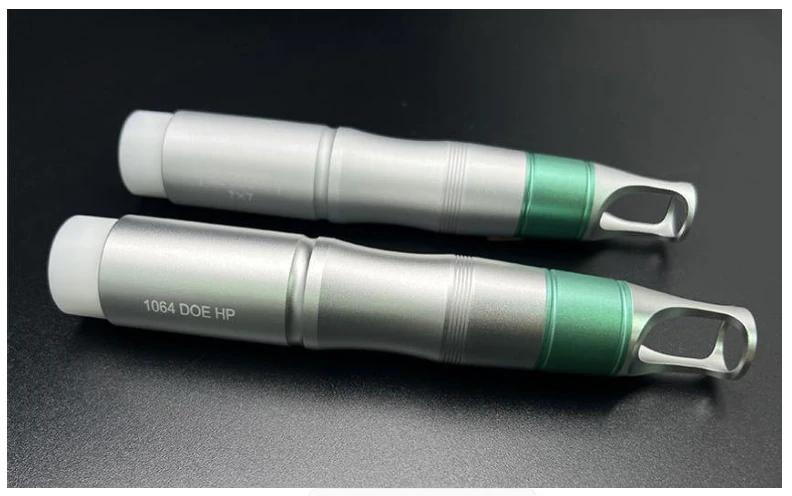

The DOE Handpiece from CRYSTECH is an innovative optical component designed for precision in the field of medical cosmetology. Based on the principle of binary optics, this handpiece employs a Diffractive Optical Element (DOE) to meticulously manage the light intensity distribution of beams passing through it. This advanced technology is particularly beneficial in skin cosmetology, offering solutions for treating acne, removing pigmented spots, and improving the appearance of fine lines and wrinkles.
Developed to enhance the capabilities of laser beauty instruments, the DOE Handpiece connects seamlessly to the laser output terminal, serving as an essential tool for medical cosmetic procedures. Its primary function is to facilitate the lattice output of treatment laser beams, ensuring precise and effective results. The handpiece boasts a compact structure, making it both user-friendly and stable in performance. Additionally, it offers the flexibility of replacing the handpiece to achieve various laser beam emission modes, thereby maximizing the versatility of a single laser treatment apparatus.
CRYSTECH's commitment to innovation and quality is evident in the DOE Handpiece, which stands out not only for its cutting-edge technology but also for its convenience and reliability. This product embodies a significant advancement in the realm of medical cosmetology, providing practitioners with a powerful tool to enhance treatment outcomes and patient satisfaction.
DOE Handpiece for Laser Skin Treatment
Specifications |
|
|---|---|
| Design Wavelength: | 1064 nm |
| Signal Cable: | No |
| Signal Cable: | Yes |
| Spot Shape: | square |
| Spot Size: | 10×10mm² |
| Number Of Spots: | 49 |
| Efficiency: | 60% |
| Wavelength: | 532nm |
| Model: | HP532-DOE-71S |
| Signal Cable: | Yes |
| Spot Shape: | square |
| Spot Size: | 10×10mm² |
| Number Of Spots: | 49 |
| Efficiency: | 60% |
| Wavelength: | 1064nm |
| Model: | HP1064-DOE-71S |
| Spot Shape: | square |
| Spot Size: | 10×10mm² |
| Number Of Spots: | 49 |
| Efficiency: | 60% |
| Wavelength: | 532nm |
| Model: | HP532-DOE-71N |
| Signal Cable: | No |
| Spot Shape: | square |
| Spot Size: | 10×10mm² |
| Number Of Spots: | 49 |
| Efficiency: | 60% |
| Wavelength: | 1064nm |
| Model: | HP1064-DOE-71N |
Features
- Compact Structure & Convenient Replacement: The DOE Handpiece is designed for easy handling and quick replacement, ensuring seamless integration with laser beauty instruments.
- Efficient Light Spot Transformation: Easily achieve the transformation of light spot patterns to suit various cosmetic treatments.
- Uniform Energy Distribution: Ensures consistent energy output across the treatment area for effective and reliable results.
- Versatile Applications: Ideal for pigmented spot removal, acne and acne mark treatment, skin wrinkle removal, and improvement of joint wrinkles, stretch marks, and deep skin scars.
- Stable Performance: Designed to deliver stable and reliable performance for medical cosmetology procedures.
- Multiple Models Available:
- HP1064-DOE-71N: 1064nm, 60% efficiency, 49 spots, 10×10 mm2 spot size, square shape, no signal cable.
- HP532-DOE-71N: 532nm, 60% efficiency, 49 spots, 10×10 mm2 spot size, square shape, no signal cable.
- HP1064-DOE-71S: 1064nm, 60% efficiency, 49 spots, 10×10 mm2 spot size, square shape, with signal cable.
- HP532-DOE-71S: 532nm, 60% efficiency, 49 spots, 10×10 mm2 spot size, square shape, with signal cable.
Applications
- Pigmented spot removal
- Treatment of acne and acne marks
- Skin wrinkle removal
- Improvement of joint wrinkles and stretch marks
- Improvement of deep skin scars
Frequently Asked Questions
A Diffractive Optical Element (DOE) is an optical component fabricated based on the principle of binary optics, which can precisely control the light intensity distribution of the light beam passing through it.
The DOE Handpiece is mainly used in skin cosmetology for treating acne and acne marks, removing pigmented spots and fine lines on the skin, and improving joint wrinkles and stretch marks.
Key features of the DOE Handpiece include a compact structure, convenient replacement, ability to easily transform light spot patterns, and uniform energy distribution.
The DOE Handpiece connects to the laser output terminal of the laser beauty instrument and serves as the operating handle for medical cosmetology procedures.
The available models are HP1064-DOE-71N, HP532-DOE-71N, HP1064-DOE-71S, and HP532-DOE-71S. They have a wavelength of 1064nm or 532nm, efficiency of 60%, 49 spots, spot size of 10×10mm², square spot shape, and some models include a signal cable.
The efficiency of the DOE Handpiece is 60%.
Yes, the DOE Handpiece can be used for the improvement of deep skin scars.
