Description

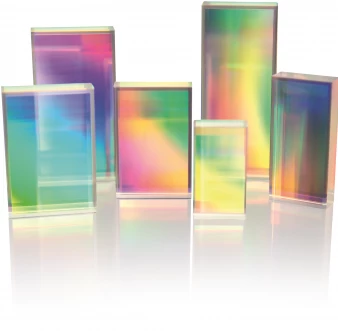

Fused Silica Transmission Gratings for VIS are a testament to precision and innovation, designed to meet the highest standards of optical performance. These high-efficiency gratings are meticulously customized to suit your specific applications, ensuring optimal results in various optical systems. Crafted by the experts at Gitterwerk GmbH, these gratings are a perfect blend of advanced technology and superior craftsmanship.
Founded in 2015 in Jena, Germany, Gitterwerk GmbH has quickly established itself as a leader in the field of diffraction gratings. Our company is driven by a passionate team of pioneers who are committed to delivering products with world-renowned efficiencies. At Gitterwerk, we believe in the power of team spirit and a shared passion for perfection, which fuels our desire to contribute positively to the future of the laser market. Our cornerstone is our people, and we are dedicated to fostering a respectful, open-minded, and encouraging work environment.
Our Fused Silica Transmission Gratings are crafted from high-quality fused silica, specifically Heraeus Suprasil 3002, known for its reduced OH content of less than 1 ppm. This ensures exceptional optical clarity and performance. The gratings are available in various popular formats, with substrate thicknesses customizable to meet your specific demands. Whether you require a standard size or a unique configuration, our gratings are designed to provide unparalleled efficiency and reliability.
At Gitterwerk GmbH, we are committed to delivering products that not only meet but exceed your expectations. Our high-efficiency gratings are engineered to provide top conditions, high availability, and individual grating design, making them the ideal choice for your optical applications. Join us in our journey to shape the future of the laser market with cutting-edge technology and innovative solutions.
Transmission Gratings for VIS
Specifications |
|
|---|---|
| Substrate Material: | Fused Silica |
| Dimension (Length): | 137 mm |
| Dimension (Height): | 56 mm |
Features
- High-Efficiency Gratings: Our Fused Silica Transmission Gratings for VIS are designed to deliver exceptional efficiency, customized to meet your specific application needs.
- Customizable Optical Specifications: Choose from a range of center wavelengths (450 nm to 671 nm) and grating periods (333 nm to 625 nm) to suit your requirements.
- Versatile Polarization Options: Available in TE (s-pol.), TM (p-pol.), and unpolarized (TE+TM) configurations to match your optical setup.
- Optimized Angle of Incidence: Our gratings are designed with angles of incidence ranging from 24.4° to 57.0° for optimal performance.
- Superior Diffraction Efficiency: Achieve diffraction efficiencies of up to 97.5%, ensuring maximum light throughput.
- Precision Angular Dispersion: Benefit from precise angular dispersion values, ranging from -0.101°/nm to -0.275°/nm, for accurate spectral separation.
- Premium Substrate Material: Manufactured using Fused Silica: Heraeus Suprasil 3002, known for its low OH content (< 1 ppm) and superior optical quality.
- Flexible Substrate Thickness and Formats: Available in substrate thicknesses of 6.35 mm and 3.00 mm, with popular formats customizable to your specific demands.
- High Availability and Individual Design: We ensure high availability of our products and offer individual grating design to cater to unique project requirements.
- Trusted Manufacturer: Gitterwerk GmbH, established in 2015, is your reliable partner for high-quality diffraction gratings, driven by a passion for perfection and innovation in the laser market.
Applications
- Laser Spectroscopy: Enhance the precision and efficiency of laser-based spectroscopic measurements.
- Optical Coherence Tomography (OCT): Improve imaging resolution and depth penetration in medical diagnostics.
- Telecommunications: Optimize signal processing and wavelength multiplexing in fiber optic communications.
- Laser Pulse Compression: Achieve shorter pulse durations for high-intensity laser applications.
- Raman Spectroscopy: Increase the sensitivity and accuracy of chemical analysis.
- Holography: Enhance image quality and detail in holographic displays and data storage.
- Astrophysics: Improve the resolution and sensitivity of astronomical instruments.
- Environmental Monitoring: Enhance the detection and analysis of atmospheric gases and pollutants.
- Scientific Research: Support a wide range of optical experiments and innovations in research laboratories.
- Industrial Applications: Improve precision in material processing and quality control systems.
Frequently Asked Questions
The substrate material used is Fused Silica, specifically Heraeus Suprasil 3002, with reduced OH content of less than 1 ppm.
The available substrate thicknesses are 6.35 mm and 3.00 mm.
Yes, the dimensions of the gratings can be customized to meet specific demands.
The line densities range from 1600.0 l/mm to 3003.0 l/mm.
The diffraction efficiency is generally 90.0% to 97.5%, depending on the specific grating and conditions, including AR coating.
These gratings are designed for high-efficiency diffraction in the visible spectrum (VIS) and can be customized for specific applications.
