Description

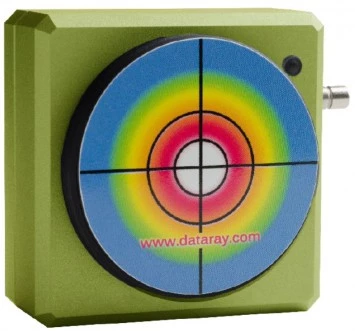

This laser beam profiler from DataRay provides a solution for THz laser beam measurements in OEM, industrial, and scientific applications. WinCam-THz comes with a full user friendly software suite for laser beam profile measurements.
Note: This product requires 64-bit Windows 7, 8/8.1, or 10
WinCamD-THz CMOS Based Beam Profiler
Specifications
Sensor Type: | CMOS |
---|---|
Measurable Sources: | Pulsed |
Wavelength Range: | 355 – 1150 nm |
# Pixels (Width): | 2048 |
# Pixels (Height): | 2048 |
Pixel Size (Width): | 5.5 um |
Pixel Size (Height): | 5.5 um |
Max Full Frame Rate: | 12.5 Hz |
ADC: | 12-bit |
IR Wavelength Range: | 3 - 20 THz |
Part Number: | S-WCD-THz |
Interface: | USB 3.0 Port-powered |
ADC: | 12 bit |
Signal To RMS Noise: | >500:1 |
Single Pulse Capture Max PRR: | USB 3.0: 12.6 kHz | USB 2.0: 6.3 kHz |

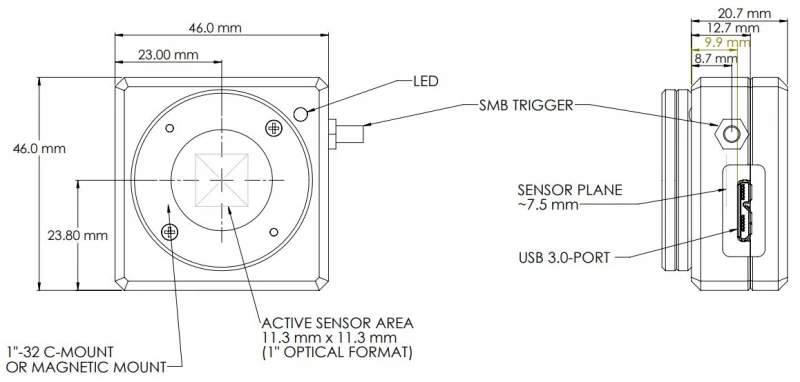

Sensor Image Area: | 11.3 x 11.3 mm |
Features
- 3 – 20 THz (15 to 100 µm) plus 350- 1150 nm
- 2048 x 2048 pixels, 11.3 x 11.3 mm active area
- 5.5 µm pixels
- 12 fps @ 2048x2048 to 60 fps @ 512x512
- Port-powered, USB 3.0; flexible 3 m cable
- HyperCal™ – Dynamic noise and baseline correction software
- Real-time non-linearity correction
- Global electronic shutter, 85 µs to 2 s
- TTL, optical and auto-trigger options
- 12-bit ADC
- Parallel capture on multiple cameras
- Field-replaceable image sensors
- Relative power level display
Applications
- THz laser profiling/alignment
- Non-linear spectroscopy
- Medical & security inspection/QA of opaque objects
- Field servicing of THz lasers & laser-based systems
Frequently Asked Questions
What is the WinCamD-THz CMOS Based Beam Profiler?
The WinCamD-THz CMOS Based Beam Profiler is a laser beam profiler that provides a solution for THz laser beam measurements in OEM, industrial, and scientific applications.
What are the features of the WinCamD-THz CMOS Based Beam Profiler?
The features of the WinCamD-THz CMOS Based Beam Profiler include 3 – 20 THz (15 to 100 µm) plus 350- 1150 nm, 2048 x 2048 pixels, 11.3 x 11.3 mm active area, 5.5 µm pixels, 12 fps @ 2048x2048 to 60 fps @ 512x512, port-powered, USB 3.0; flexible 3 m cable, HyperCal™ – Dynamic noise and baseline correction software, real-time non-linearity correction, global electronic shutter, 85 µs to 2 s, TTL, optical and auto-trigger options, 12-bit ADC, parallel capture on multiple cameras, field-replaceable image sensors, and relative power level display.
What are the applications of the WinCamD-THz CMOS Based Beam Profiler?
The applications of the WinCamD-THz CMOS Based Beam Profiler include THz laser profiling/alignment, non-linear spectroscopy, medical & security inspection/QA of opaque objects, and field servicing of THz lasers & laser-based systems.
What are the power/energy range specifications of the WinCamD-THz CMOS Based Beam Profiler?
The saturation power/energy range of the WinCamD-THz CMOS Based Beam Profiler is ~100 mJ/cm2 @ 3 THz, ~15 mJ/cm2 @ 6 THz, and ~5 mJ/cm2 @ 10 THz.
What software features does the WinCamD-THz CMOS Based Beam Profiler come with?

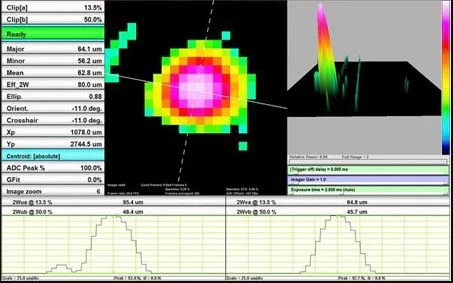

The WinCamD-THz CMOS Based Beam Profiler comes with XY profiles and centroids, image & intensity zoom, linear and logarithmic displays, linear and area filters, Gaussian and Top Hat least squares fits, image averaging, 1.
