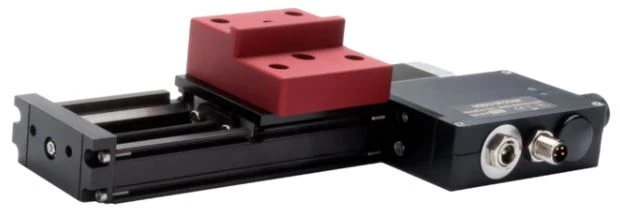

Line Laser Profiling System (LLPS)

Name: Line Laser Profiling System (LLPS)
Brand: DataRay Inc.
Availability: InStock

Description

The Line Laser Profiling System (LLPS) is a complete solution for analyzing line lasers up to 1000 mm in length and down to 55 µm in width. By scanning DataRay's flagship WinCamD-LCM beam profiling camera across the length of the beam using stages up to 1000mm in length, the full-featured free software will display a full image of the line laser intensity distribution along with a vertical centroid plot, line width plot, and several other useful measurements. Line Laser Profiling – up to 1000 mm in length.

The line laser profiling system is supported by DataRay’s full featured, highly customizable, user-centric software which has no license fees, unlimited installations, and free software updates. The software controls the movement of the stage, automatically configures the optimal exposure time for the line laser scan, and provides an analysis of the line.

Specifications

Sensor Type:	CMOS
Measurable Sources:	CW, Pulsed
Wavelength Range:	190 – 1150 nm
# Pixels (Width):	2048
# Pixels (Height):	2048
Pixel Size (Width):	5.5 um
Pixel Size (Height):	5.5 um
Max Full Frame Rate:	12 Hz
ADC:	12-bit

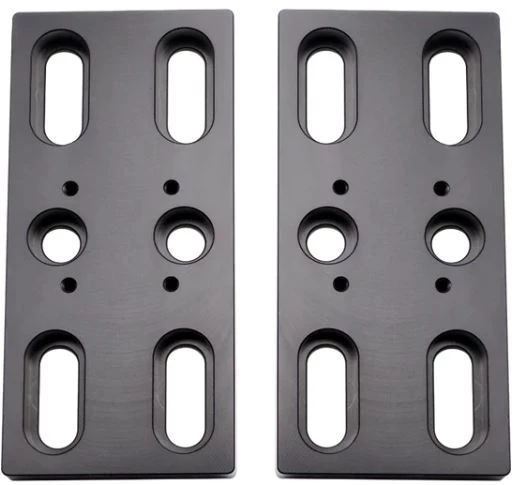

Stage Length:	50, 200, 500, and 1000 mm
Part Numbers:	LLPS-50-LCM, LLPS-200-LCM, LLPS-500-LCM, LLPS-1000-LCM

Download Data Sheet

Features

Line laser length/width measurements
Absolute vertical centroids
Deviation of vertical centroids from a linear regression line
Line tilt measured in degrees
50mm or 200 mm Translation Stage
190 to 1150 nm, CMOS detector o 4.2 MPixel, 2048 x 2048 pixels o 11.3 x 11.3 mm active area o 5.5 µm pixel size
HyperCal™ – Dynamic Noise and Baseline Correction software
2,500:1 Signal to RMS Noise
12-bit ADC
Window-free sensors standard to prevent fringing
Global shutter allowing for pulsed or CW measurements

Applications

Calibration
Machine vision
3D Scanning
Particle Counting
Survey Instruments
Bar code scanning
Laser optics
Metrology
