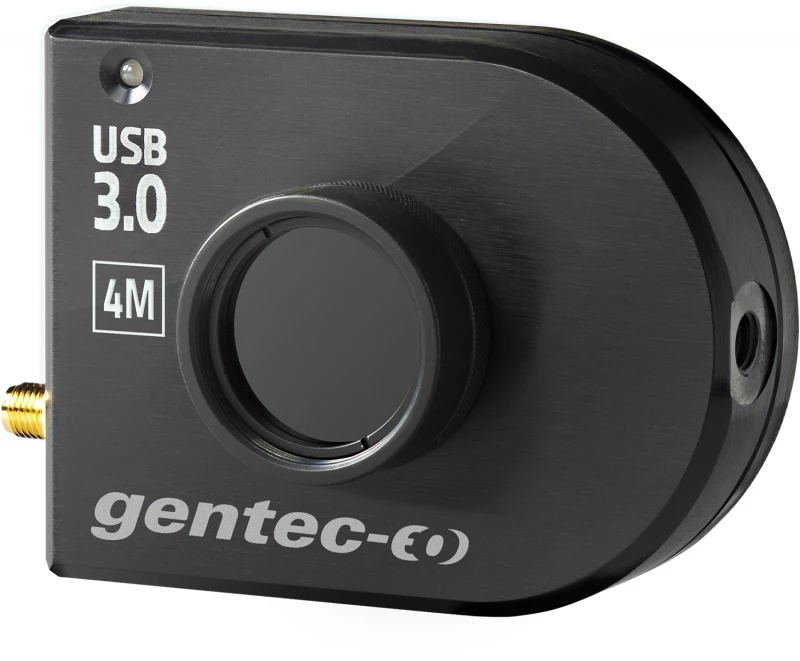

Product Description: Gentec-EO introduces the new Beamage-4M laser beam profiler. Its sleek and thin design allows the Beamage-4M to fit between tight optical components. Its USB 3.0 connection and improved algorithm allow very fast frame rates. The new 4.2 MPixel CMOS sensor has a large 1” optical format with a small 5.5μm pixel pitch allowing high resolution. Most importantly the innovative and improved PC-Beamage-4M software is simple and intuitive to any new or expert beam profiling user.

Gentec-EO - Laser Beam Profiler - Beamage-4M

Specifications

Sensor Type: CMOS
Measurable Sources: CW, Pulsed
Wavelength Range: 350 – 1150 nm
# Pixels (Width): 2048
# Pixels (Height): 2048
Pixel Size (Width): 5.5 um
Pixel Size (Height): 5.5 um
Max Full Frame Rate: 6.2 Hz
ADC: 10-bit, 12-bit
Sensor Technology: CMOS without coverglass

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Displays: 3D, 2D, XY (crosshair), Beam Tracking
  • Beam Diameter Definition:
    4 Sigma (ISO) - ISO-11146-1:2005
    FWHM along crosshair (50%)
    1/e2 along crosshair (13.5%)
    86% effective diameter (D86)
  • Beam Center Definition:
    First Encountered Peak
    Displayed Measurements
    Major Axis
    Minor Axis
    Effective Diameter
    Ellipticity
    Orientation
    Centroid X and Y
    Peak X and Y
    Peak Saturation Level
    Peak to Average Ratio X and Y
    Divergence
    Fitted Gaussian equations
    Roughness fit along crosshairs
    Gaussian fit along crosshairs
    Mean Centroid Position
    Azimuth
    Beam Position Stability
  • Setup Options:
    Exposure Time (auto or manual)
    Image Orientation (rotation and flip)
    Image Averaging (temporal filter)
    Active Area
    Pixel Addressing
    Gain
    ADC Level
    Magnifying Lens
  • Processing Option:
    Background Subtraction
    Area Filters (triangular and flat spatial filters)
    Normalized Display
    Trigger
  • Buffer: Buffer size from 1 to 64 frames
    Possibility to animate stored frames
  • File options:
    Save 1 or all images in buffer
    Save in native format, text format, or binary format
    Load native format files
    Print report
    Save 3D or 2D image in bitmap format
    Save crosshairs in text format
    Data Acquisition of measurements in text format and in native format

Applications

  • Field service of lasers and laser-based systems
  • Optical assembly and instrument alignment
  • Beam pointing and drift measurements
  • M² measurements

Frequently Asked Questions

What is the Beamage-4M laser beam profiler?
The Beamage-4M is a laser beam profiler designed for measuring and analyzing laser beams.
What are the features of the Beamage-4M beam profiler?
The Beamage-4M features 3D, 2D, and XY (crosshair) displays, beam diameter and center definitions, various measurements, setup options, processing options, and data acquisition options.
What is the resolution of the Beamage-4M laser beam profiler?
The Beamage-4M has a 4.2 MPixel CMOS sensor with a small 5.5μm pixel pitch, allowing for high resolution.
What is the software used for the Beamage-4M laser beam profiling module?
The Beamage-4M uses the PC-Beamage-4M software, which is simple and intuitive for both new and expert beam profiling users.
What are some applications of the Beamage-4M beam profiler?
The Beamage-4M can be used for field service of lasers and laser-based systems, optical assembly and instrument alignment, beam pointing and drift measurements, and M² measurements.
