Description
The BEAMAGE-4M-FOCUS is an advanced beam profiling camera designed for large beams, featuring a fiber optic taper. With a high-resolution 4.2 MPixel CMOS sensor, this camera is capable of ISO-compliant measurements in the spectral range of 350 to 1150 nm.
Its pixel multiplication factor (PMF) of 1.8 (typical) ensures precise beam characterization. The BEAMAGE-4M-FOCUS is equipped with a global shutter and operates at a frame rate of 6.2 fps at 4.2 MPixels, making it an excellent choice for applications requiring accurate measurements of large laser beams.

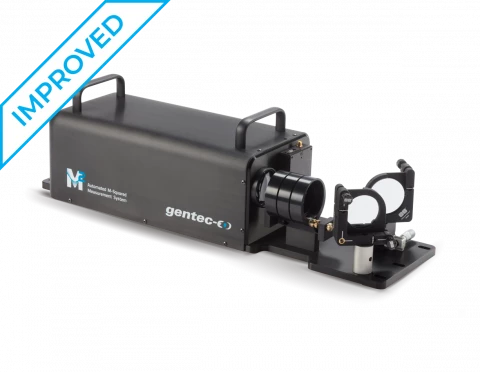

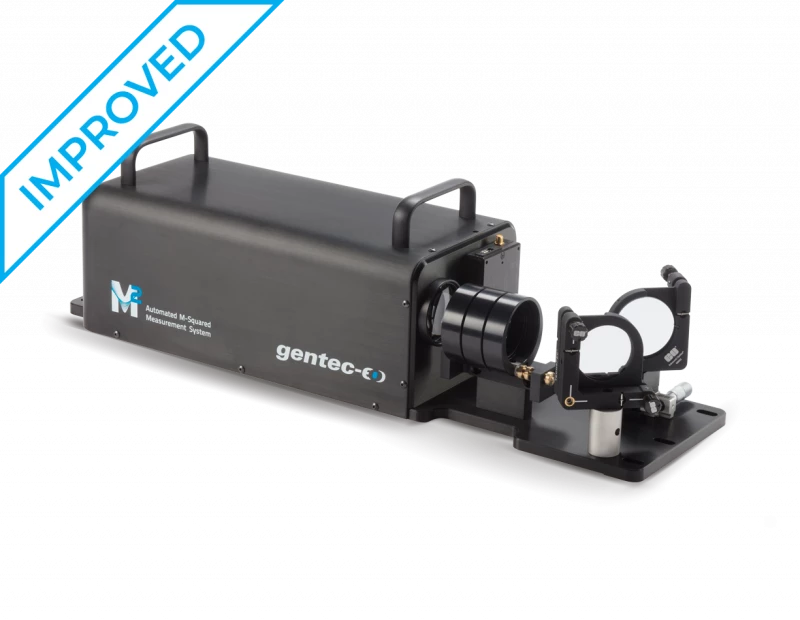

BEAMAGE-M2 Automated Measurement System
Specifications
Sensor Type: | CMOS |
---|---|
Measurable Sources: | CW, Pulsed |
Wavelength Range: | 350 – 1100 nm |
Pixel Size (Width): | 55 um |
Pixel Size (Height): | 55 um |
ADC: | 8-bit, 10-bit, 12-bit |
Minimum Measurable Beam: | 55 μm |
Included Filter: | 3 flip-mount attenuators for 8 levels of attenuation, from none to ND3.5 |
Sensor Technology: | BEAMAGE-4M included |
Effective Aperture: | Ø 48 mm optics, 11.3 x 11.3 mm sensor |
Beam Diameter Range: | 55 μm to 11.3 mm, at the sensor |
Mechanical Travel Range: | 200 mm |
Effective Optical Path Range: | 400 mm |
Lens Focal Length: | 5 AR-coated lenses included: 200 mm, 250 mm, 300 mm, 400 mm and 500 mm |
Typical M2 Accuracy: | ±5%, depending on the beam quality and optical configuration |
Typical M2 Repeatability: | ±2%, depending on the beam quality and optical configuration |
Typical Measurement Time: | 45 sec with full-frame acquisition |
Beam Diameter Definitions: | D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%) |
D4σ (ISO Compliant) 1/e2 Along Crosshairs (13.5%) FWHM Along Crosshairs (50%) Custom (%): | D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%) |
Dimensions: | 172H x 193W x 602D mm |
Weight: | 6.6 kg |
Features
- Spectral Range: Covers wavelengths from 350 to 1150 nm
- Fiber Optic Taper: Designed for large beams, providing accurate measurements
- High-Resolution Sensor: Equipped with a 4.2 MPixel CMOS sensor
- ISO-Compliant: Provides ISO-compliant measurements for beam characterization
- Pixel Multiplication Factor (PMF): Offers a PMF of 1.8 (typical)
- Minimum Measurable Beam: Measures beams with a minimum size of 120 μm
- Global Shutter: Offers precise measurements of dynamic laser beams
- Fast Frame Rate: Operates at a frame rate of 6.2 fps at 4.2 MPixels
- High-Resolution Beam Profiling: Ideal for applications demanding detailed beam profiling
Applications
- Suitable for laser beam analysis, particularly for large beams
- Ideal for research, industrial, and scientific laser systems
- Accurate characterization of laser beam profiles for quality control and research purposes
Frequently Asked Questions
What is the BEAMAGE-M2 Automated Measurement System used for?
It is used for laser beam measurement and characterization.
What are the key features of the BEAMAGE-M2 Automated Measurement System?
The key features include large apertures, simple alignment, compact size, ISO compliance, fast acquisition, and flexible and intuitive software.
What is the measurement capability of the BEAMAGE-M2 Automated Measurement System?
The system can measure wavelengths ranging from 350-1100 nm and has an attenuation range of 3 flip-mount attenuators for 8 levels of attenuation.
What is the typical M2 accuracy and repeatability of the BEAMAGE-M2 Automated Measurement System?
The typical M2 accuracy is ±5% and the typical M2 repeatability is ±2%.
What is the maximum average power and density for the BEAMAGE-M2 Automated Measurement System?
The maximum average power is 1 W with ND filter and the maximum density at 1064 nm is CW: 10 W/cm2; Pulsed: 300 μJ/cm2.
