Description

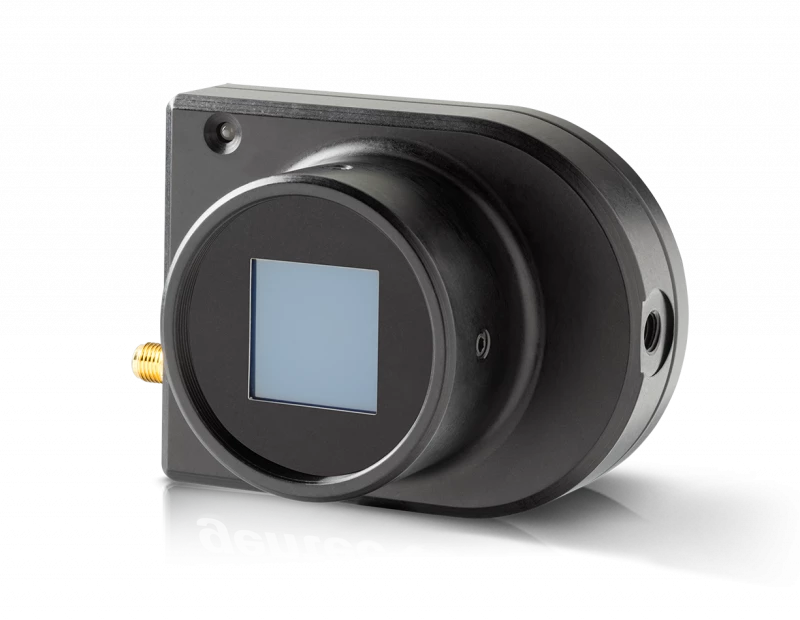

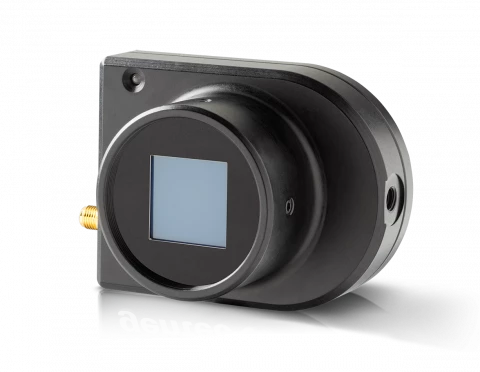

The BEAMAGE-4M-FOCUS is an advanced beam profiling camera designed for large beams, featuring a fiber optic taper. With a high-resolution 4.2 MPixel CMOS sensor, this camera is capable of ISO-compliant measurements in the spectral range of 350 to 1150 nm.

Its pixel multiplication factor (PMF) of 1.8 (typical) ensures precise beam characterization. The BEAMAGE-4M-FOCUS is equipped with a global shutter and operates at a frame rate of 6.2 fps at 4.2 MPixels, making it an excellent choice for applications requiring accurate measurements of large laser beams.

BEAMAGE-4M-FOCUS Beam Profiling Camera with Fiber Optic Taper

Visit the Gentec-EO Store

Specifications

Sensor Type: CMOS
Measurable Sources: CW, Pulsed
Wavelength Range: 350 – 1150 nm
# Pixels (Width): 2048
# Pixels (Height): 1088
Pixel Size (Width): 10 um
Pixel Size (Height): 10 um
Max Full Frame Rate: 11.4 Hz
ADC: 10-bit, 12-bit
Pixel Multiplication Factor (PMF): 1.8 typical
Minimum Measurable Beam: 120 μm
Pixel Count: 4.2 MPixels
Beam Diameter Definitions: D4σ (ISO compliant) 1/e2 along crosshairs (13.5%) FWHM along crosshairs (50%) Custom (%)
Shutter Type: Global
Frame Rate: 6.2 fps @ 4.2 MPixels (Full Frame)
RMS Noise: 1000:1 (60 dB)
Maximum Power Density: 10 W/cm²
Maximum Energy Density: 100 mJ/cm²
Maximum Power: 1 W
Dimensions: 61H x 81.1W x 46.5D mm
Weight: 0.24 kg
Pixel Dimension: 10 μm μm
Included Filter: ND4

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Spectral Range: Covers wavelengths from 350 to 1150 nm
  • Fiber Optic Taper: Designed for large beams, providing accurate measurements
  • High-Resolution Sensor: Equipped with a 4.2 MPixel CMOS sensor
  • ISO-Compliant: Provides ISO-compliant measurements for beam characterization
  • Pixel Multiplication Factor (PMF): Offers a PMF of 1.8 (typical)
  • Minimum Measurable Beam: Measures beams with a minimum size of 120 μm
  • Global Shutter: Offers precise measurements of dynamic laser beams
  • Fast Frame Rate: Operates at a frame rate of 6.2 fps at 4.2 MPixels
  • High-Resolution Beam Profiling: Ideal for applications demanding detailed beam profiling

Applications

  • Suitable for laser beam analysis, particularly for large beams
  • Ideal for research, industrial, and scientific laser systems
  • Accurate characterization of laser beam profiles for quality control and research purposes

Frequently Asked Questions

What is the BEAMAGE-4M-FOCUS CMOS Profiling Camera used for?
The BEAMAGE-4M-FOCUS CMOS Profiling Camera is used for laser beam measurement and characterization.
What are the key features of the BEAMAGE-4M-FOCUS CMOS Profiling Camera?
The key features of the BEAMAGE-4M-FOCUS CMOS Profiling Camera include USB 3.0 for fast transfer rates, high resolution, large apertures, availability with IR coating, ISO compliance, an intuitive software interface, and external trigger.
What is the effective aperture of the BEAMAGE-4M-FOCUS CMOS Profiling Camera?
The effective aperture of the BEAMAGE-4M-FOCUS CMOS Profiling Camera is 20.5 x 20.5 mm.
What is the maximum average power that the BEAMAGE-4M-FOCUS CMOS Profiling Camera can handle?
The BEAMAGE-4M-FOCUS CMOS Profiling Camera can handle a maximum average power of 1 W with an ND filter.
What is the wavelength range that the BEAMAGE-4M-FOCUS CMOS Profiling Camera can measure?
The BEAMAGE-4M-FOCUS CMOS Profiling Camera can measure a wavelength range of 350 - 1150 nm, and with the UG11-UV filter, it can measure a range of 250 - 370 nm. With the B3-IR-FILTER, it can measure a range of 1250 - 1350 nm.
