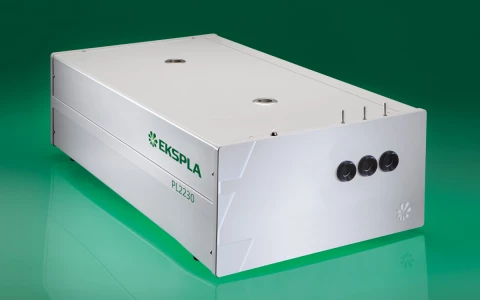

PL2230 Series - Diode Pumped High Energy Picosecond Nd:YAG Lasers
Description
The PL2230 series is a family of high-performance Diode Pumped Solid-State (DPSS) picosecond Nd:YAG lasers, designed to deliver exceptional pulse energies and precise pulse durations in the picosecond range. These mode-locked lasers are ideal for various applications in time-resolved fluorescence, spectroscopy, laser-induced breakdown spectroscopy, remote laser sensing, satellite ranging, and other nonlinear optics applications.
The lasers feature a diode-pumped power amplifier, a hermetically sealed DPSS master oscillator, and a regenerative amplifier, ensuring reliable and efficient performance. With pulse durations of less than 30 ps and pulse energies of up to 140 mJ at a pulse repetition rate of 10 to 100 Hz, the PL2230 series offers exceptional versatility and control for demanding scientific and industrial applications.
PL2230 Series - Diode Pumped High Energy Picosecond Nd:YAG Lasers
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Repetition Rate: | 0.05-0.1kHz |
| Pulse Energy: | 3-40 mJ |
| Energy Stability (RMS): | 0.5 % |
| Pulse Duration: | 28000 fs |
| Pointing Stability (RMS): | 25 urad |
| Polarization: | Vertical, Horizontal |
| Spatial Mode (M^2): | Not Specified |
| Amplification Scheme: | Regenerative |
Features
- High pulse energies of up to 140 mJ at 1064 nm
- Pulse durations of 20 – 80 ps, with excellent stability
- Pulse repetition rate adjustable from 10 to 100 Hz
- Advanced beam shaping system for improved beam profile
- Hermetically sealed DPSS master oscillator
- Air-cooled for convenient operation
- Streak camera triggering pulse with <10 ps jitter for precise measurements
- Thermo stabilized second, third, or fourth harmonic generator options
- PC control and remote control via keypad for ease of use
- Excellent beam pointing stability for accurate targeting
Applications
- Time-resolved fluorescence measurements, including streak camera applications
- Second harmonic generation (SHG) and sum frequency generation (SFG)
- spectroscopy
- Nonlinear spectroscopy experiments
- Laser-induced breakdown spectroscopy (LIBS)
- Optical parametric generator (OPG) pumping
- Remote laser sensing applications
- Satellite ranging and precision measurements
- Other spectroscopic and nonlinear optics applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The PL2230 SERIES laser can produce up to 40 mJ per pulse at 1064 nm.
The PL2230 SERIES laser has excellent pulse duration stability of less than 30 ps.
The PL2230 SERIES laser can be used for time resolved fluorescence, SFG/SHG spectroscopy, nonlinear spectroscopy, laser-induced breakdown spectroscopy, OPG pumping, remote laser sensing, satellite ranging, and other spectroscopic and nonlinear optics applications.
Yes, the output pulse energy can be adjusted in approximately 1% steps.
The pulse-to-pulse energy stability of the PL2230 SERIES laser remains at less than 0.5% rms at 1064 nm.
