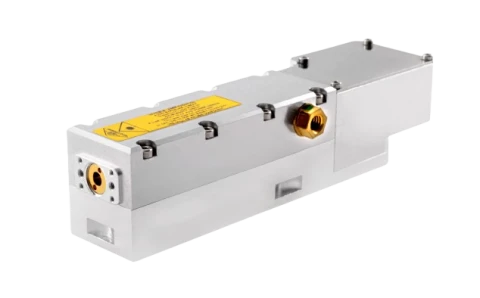

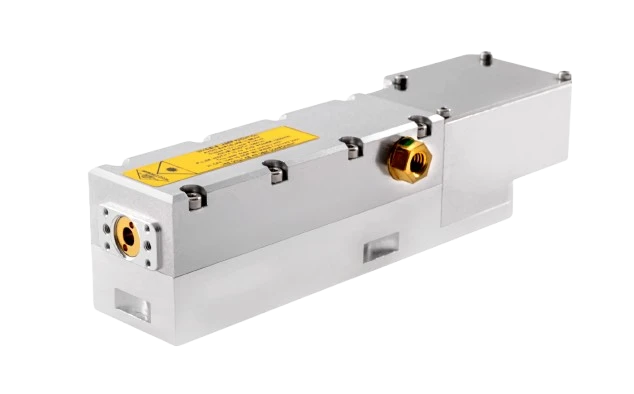

Thumbnail of SNG-20F-100 SNG High Performances Green Microchip Laser photo 1

Description

For generating high peak power green pulses of a few hundred picoseconds, microchip lasers are economical, compact, and reliable. The 532nm pulses are produced by harmonic conversion from the IR systems, the same compact sealed package being used for either wavelength.

Microchips are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

The SNG series are designed for high average power, delivering multi-kW peak power at repetition rates up to 70kHz.

SNG-20F-100 SNG High Performances Green Microchip Laser

Visit the Teem Photonics Store

Specifications

Avg. Power: 0.048 W
Wavelength: 532 nm
Repetition Rate: 19 – 19 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.75 ns
Pulse-to-Pulse Stability (RMS): 1 %
Cooling: Air
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.3
Polarization: Linear, PER>20dB
Output Energy: >2.5uJ
Peak Power: >3kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Repetition rate up to 70 kHz
  • Ultrashort pulses down to 500 ps
  • Multi-kW peak power
  • Excellent beam quality – TEM00, M²<1.1
  • Efficient, air-cooled
  • Sealed package, extremely long life

Applications

  • Material Processing
    • Cost effective marking solutions
    • Graphitization
  • Instrumentation
    • Ranging
    • Differential absorption LIDAR
    • Super-continuum generation
    • Distributed temperature sensing
    • Raman spectroscopy
  • Biophotonics
    • Nanosurgery
    • Protein cross-linking

Frequently Asked Questions

What is the SNG-20F-100 SNG High Performances Green Microchip Laser used for?
The SNG-20F-100 SNG High Performances Green Microchip Laser is used for generating high peak power green pulses of a few hundred picoseconds.
What is the repetition rate of the SNG series?
The SNG series has a repetition rate of up to 70 kHz.
What is the beam quality of the SNG series?
The SNG series has excellent beam quality with TEM00 and M²<1.1.
Is the SNG series air-cooled?
Yes, the SNG series is air-cooled and efficient.
Can the controllers be used with every laser head model?
Yes, the controllers can be used with every laser head model and swapped within minutes while conserving constant performances.

Got more questions? Use the inquiry form to ask the supplier directly.
