Description

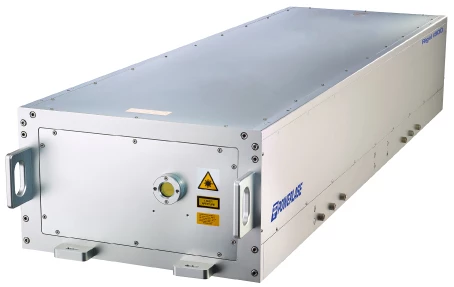

The Rigel i800 is a cutting-edge 800 watt, Q-switched, diode-pumped solid-state (DPSS) laser, designed to deliver exceptional performance with high average power and peak power at 1064 nm. Unpolarised and engineered with a rugged head design, the Rigel i800 stands out as a robust solution for demanding industrial environments. Its state-of-the-art universal control system architecture ensures seamless integration and synchronization with OEM equipment and process lines, making it an ideal choice for high-volume industrial applications.
Powerlase Photonics has meticulously crafted the Rigel i800 to meet the rigorous demands of modern manufacturing processes. The laser's high power and short pulse capabilities enable precise material processing, ensuring superior results in applications that require meticulous attention to detail. The Rigel i800's condition monitoring and optional features such as fiber delivery and computer-controlled attenuation further enhance its versatility, offering tailored solutions to meet specific operational requirements.
With a commitment to reliability and excellence, the Rigel i800 is designed to operate efficiently under varied environmental conditions. Its robust construction and innovative features make it a valuable asset for industries looking to optimize production processes and achieve consistent quality. Whether for thin film removal, rapid laser patterning, or other advanced manufacturing tasks, the Rigel i800 delivers unparalleled performance, underscoring Powerlase Photonics' dedication to advancing laser technology.
Rigel i800 Q-Switched DPSS Laser for Industrial Applications
Specifications |
|
|---|---|
| Avg. Power: | 800 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 5 – 20 kHz |
| Spatial Mode (M^2): | 30 |
| Pulse Duration: | 42 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Water |
| Pulse Energy: | Up To 120 mJ |
| Divergence: | 12 mrad |
| Power Stability: | 0.3% |
| Typical Fibre Core: | 800 μm |
| Supply Voltage: | 3-phase N+E, 220 or 400 VAC (±10%) |
| Supply Frequency: | 50 or 60 Hz |
| Nominal Power Consumption: | 18 kVA |
| Gas Purge: | N2 or Air (Grade N5.0, <1 ppm THC) |
| Laser Dimensions: | 1800 x 560 x 320 mm |
| Control Rack Dimensions: | 1195 x 600 x 970 mm (h w d) |
| Environmental Conditions: | Temp 15 - 32°C and RH <60% (90% max, non condensing) |
Features
- High Power Output: The Rigel i800 is an 800-watt, Q-switched, DPSS laser providing high average power and high peak power at 1064 nm, unpolarised.
- Rugged Design: Features a well-proven rugged head design suitable for demanding industrial environments.
- Advanced Control System: Equipped with a state-of-the-art universal control system architecture for seamless integration with OEM equipment and process lines.
- Pulse Energy: Delivers pulse energy up to 120 mJ with excellent stability.
- Condition Monitoring: Includes condition monitoring for reliable operation.
- Optional Features: Offers optional fibre delivery (round or square), computer-controlled attenuation, and repetition frequency optimisation.
Applications
- LCD Production
- Photovoltaic Processing
- Thin Film Removal
- Rapid Laser Patterning
- Material Processing
Frequently Asked Questions
The Rigel i800 laser has a maximum pulse energy of 120 mJ.
The typical fibre core size for the Rigel i800 laser is 800 μm (square or round).
The Rigel i800 laser is suitable for LCD production, photovoltaic processing, thin film removal, rapid laser patterning, and material processing.
The dimensions of the Rigel i800 laser are 1800 x 560 x 320 mm.
The nominal power consumption of the Rigel i800 laser is 18 kVA.
