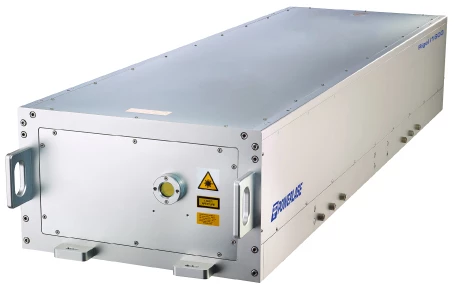

Rigel i1600 High Power Diode Pumped Short Pulse Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2014
Description
The Rigel i1600 by Powerlase Photonics is a cutting-edge high-power, diode-pumped, short pulse laser designed to meet the demanding needs of industrial applications. With an impressive output of 1600W, this Q-switched DPSS laser delivers both high average and peak power at 1064 nm in an unpolarized beam. The Rigel i1600 is built with a rugged head design that has been proven in the field, ensuring durability and reliability in various operational environments.
This laser system features a state-of-the-art universal control system architecture, allowing for seamless integration and synchronization with OEM equipment and process lines. The user-friendly design makes it an ideal choice for high-volume industrial processes, offering exceptional performance and efficiency. The Rigel i1600 is engineered to provide excellent stability and condition monitoring, ensuring consistent and reliable operation.
The Rigel i1600 also offers optional features such as fiber delivery in either round or square configurations, computer-controlled attenuation, and repetition frequency optimization, providing flexibility for various applications. Its robust construction and advanced technology make it suitable for a range of processes, including material processing, photovoltaic processing, thin film removal, rapid laser patterning, and extreme ultraviolet (EUV) generation.
Designed with facility requirements in mind, the Rigel i1600 operates on a 3-phase N+E, 220 or 400 VAC supply and requires a cooling water flow of 60 liters per minute at 11 - 17°C. The system's dimensions are thoughtfully crafted for ease of installation, with the laser measuring 1800 x 560 x 320 mm and the control rack at 1195 x 600 x 970 mm. For optimal performance, it is recommended to maintain environmental conditions between 15 - 32°C with a relative humidity of less than 60%.
Rigel i1600 High Power Diode Pumped Short Pulse Laser
Specifications |
|
|---|---|
| Avg. Power: | 1600 W |
| Wavelength: | 1064 nm |
| Repetition Rate: | 5 – 20 kHz |
| Spatial Mode (M^2): | 30 |
| Pulse Duration: | 42 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Water |
| Pulse Energy: | 250 mJ |
| Divergence: | 12 mrad |
| Power Stability: | 0.3% |
| Supply Voltage: | 3-phase N+E, 220 or 400 VAC (±10%) |
| Supply Frequency: | 50 or 60 Hz |
| Nominal Power Consumption: | 29 kVA |
| Gas Purge: | N2 or Air (Grade N5.0, <1 ppm THC) |
| Laser Dimensions: | 1800 x 560 x 320 mm |
| Control Rack Dimensions: | 1195 x 600 x 970 mm (h w d) |
| Environmental Conditions: | Temp 15 - 32°C and RH <60% (90% max, non condensing) |
Features
- High Power Output: The Rigel i1600 offers an impressive 1600W of power, making it ideal for high volume industrial applications.
- Diode Pumped Solid State (DPSS) Laser: Utilizes a Q-switched DPSS laser system for high average and peak power at 1064 nm.
- Pulse Energy: Delivers pulse energy up to 250 mJ, ensuring efficient material processing.
- Excellent Beam Quality: With an M2 value of 30, the laser provides excellent beam quality for precision tasks.
- Rugged Design: Features a well-proven rugged head design for durability in industrial environments.
- Advanced Control System: State-of-the-art universal control system architecture allows for easy integration with OEM equipment and process lines.
- Optional Features: Includes optional fibre delivery (round or square), computer-controlled attenuation, and repetition frequency optimization.
Applications
- Material Processing
- Photovoltaic Processing
- Thin Film Removal
- Rapid Laser Patterning
- Extreme Ultraviolet (EUV) Generation
Frequently Asked Questions
The Rigel i1600 DPSS Infra-Red Laser is a 1.6 kW, Q-switched, DPSS laser that delivers high average power and high peak power at 1064 nm, unpolarised.
The Rigel i1600 DPSS Infra-Red Laser is suitable for material processing, photovoltaic processing, thin film removal, rapid laser patterning, and extreme ultraviolet (EUV) generation.
The dimensions of the Rigel i1600 DPSS Infra-Red Laser are 1800 x 560 x 320 mm.
The facility requirements for the Rigel i1600 DPSS Infra-Red Laser include a supply voltage of 3-phase N+E, 220 or 400 VAC (±10%), a supply frequency of 50 or 60 Hz, and a nominal power consumption of 29 kVA.
The Rigel i1600 DPSS Infra-Red Laser is a Class 4 laser product, so it is important to avoid eye or skin exposure to direct or scattered radiation.
