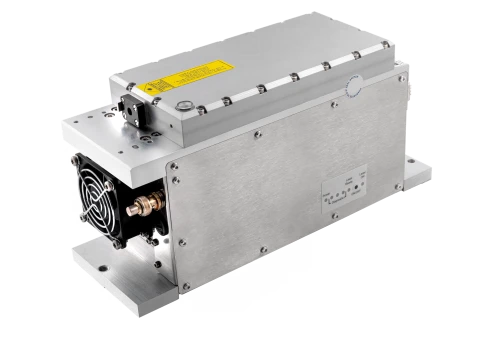

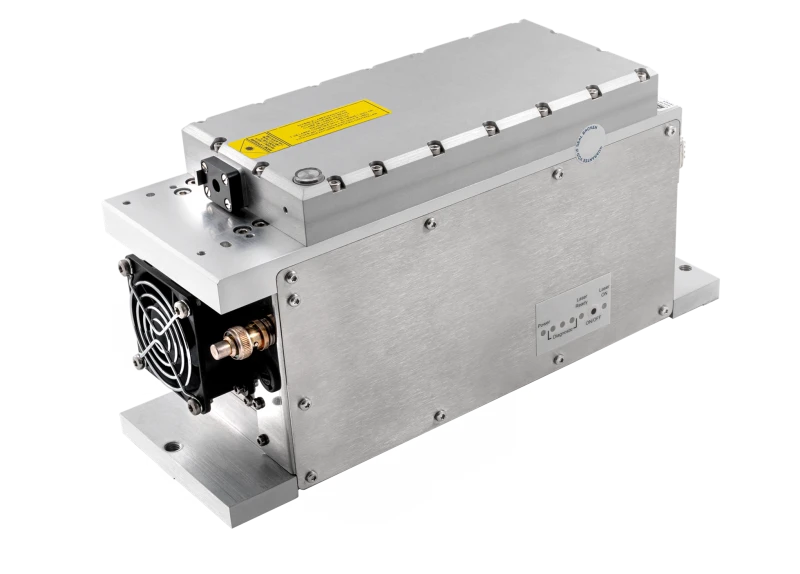

Thumbnail of PNV-M02510 1x0 High Peak Power Powerchip Laser photo 1

Description

The PowerChip™ passively Q-switched MicroChip lasers offer the highest peak powers and shortest pulses at kilohertz repetition rates with an excellent beam quality. They feature a completely integrated platform which includes the laser head, power supply and air cooling in a compact, rugged, and turnkey package.

PNV-M02510 1x0 High Peak Power Powerchip Laser

Visit the Teem Photonics Store

Specifications

Avg. Power: 0.025 W
Wavelength: 355 nm
Repetition Rate: 1 – 1 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.35 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Air, Conductive
Peak Power: >60kW
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.3
Polarization Extinction Ratio: >20dB

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Peak power up to 200 kW
  • Pulse width down to 350 ps
  • 1064, 532, 355 and 266 nm
  • Single shot to 1000 Hz
  • Excellent beam quality, TEM00 M²<1.1
  • All-in-one package

Applications

  • Materials Processing
    • Inscribing glass
    • Via drilling printed circuit boards
    • Micromachining
  • MALDI-TOF
  • Microdissection
  • Laser Induced Fluorescence (LIF)
  • Time Resolved Fluorescence
  • Laser Induced Breakdown Spectroscopy (LIBS)
  • Light Detection and Ranging (LIDAR)

Frequently Asked Questions

What is the peak power of the PNV-M02510 laser?
The peak power of the PNV-M02510 laser is up to 200 kW.
What is the pulse width range of the PNV-M02510 laser?
The pulse width range of the PNV-M02510 laser is down to 350 ps.
What is the beam quality of the PNV-M02510 laser?
The beam quality of the PNV-M02510 laser is excellent, with TEM00 M²<1.1.
What applications is the PNV-M02510 laser suitable for?
The PNV-M02510 laser is suitable for materials processing such as inscribing glass, via drilling printed circuit boards, and micromachining. It is also suitable for MALDI-TOF, microdissection, laser-induced fluorescence (LIF), time-resolved fluorescence, laser-induced breakdown spectroscopy (LIBS), and light detection and ranging (LIDAR).
What is included in the PNV-M02510 laser package?
The PNV-M02510 laser package includes the laser head, power supply, and air cooling in a compact, rugged, and turnkey package.

Got more questions? Use the inquiry form to ask the supplier directly.
