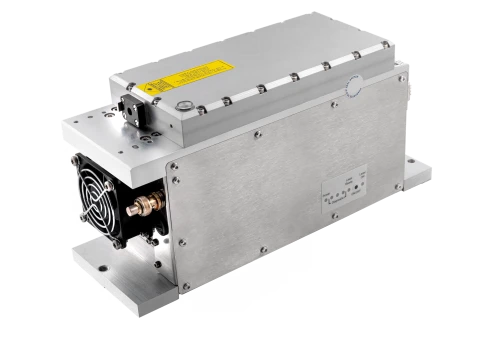

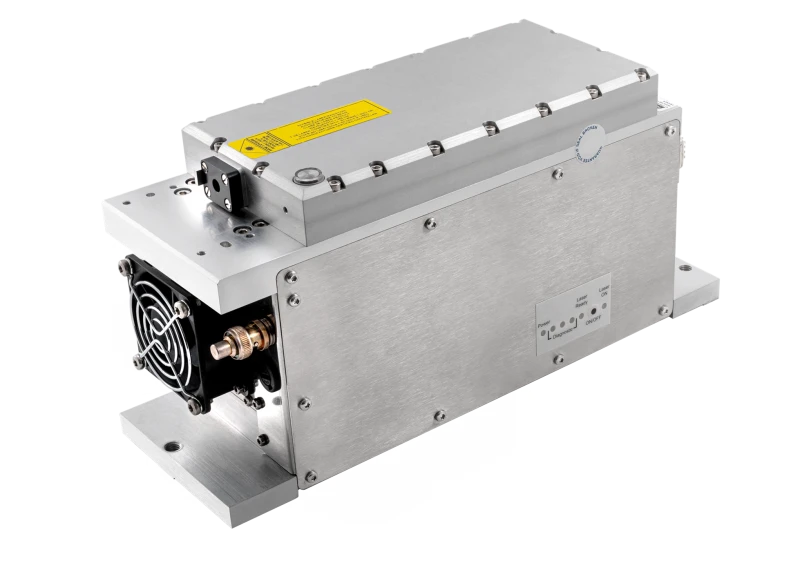

Thumbnail of PNU-M01210 1x0 High Peak Power Powerchip Laser photo 1

Description

The PowerChip™ passively Q-switched MicroChip lasers offer the highest peak powers and shortest pulses at kilohertz repetition rates with an excellent beam quality. They feature a completely integrated platform which includes the laser head, power supply and air cooling in a compact, rugged, and turnkey package.

PNU-M01210 1x0 High Peak Power Powerchip Laser

Visit the Teem Photonics Store

Specifications

Avg. Power: 0.012 W
Wavelength: 266 nm
Repetition Rate: 1 – 1 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.35 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Air
Peak Power: >35kW
Polarization Extinction Ratio: >20dB

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Peak power up to 200 kW
  • Pulse width down to 350 ps
  • 1064, 532, 355 and 266 nm
  • Single shot to 1000 Hz
  • Excellent beam quality, TEM00 M²<1.1
  • All-in-one package

Applications

  • Materials Processing
    • Inscribing glass
    • Via drilling printed circuit boards
    • Micromachining
  • MALDI-TOF
  • Microdissection
  • Laser Induced Fluorescence (LIF)
  • Time Resolved Fluorescence
  • Laser Induced Breakdown Spectroscopy (LIBS)
  • Light Detection and Ranging (LIDAR)

Frequently Asked Questions

What is the peak power of the PNU-M01210 1x0 High Peak Power Powerchip Laser?
The peak power of the PNU-M01210 1x0 High Peak Power Powerchip Laser can go up to 200 kW.
What is the pulse width range of the PNU-M01210 1x0 High Peak Power Powerchip Laser?
The pulse width range of the PNU-M01210 1x0 High Peak Power Powerchip Laser is down to 350 ps.
What is the beam quality of the PNU-M01210 1x0 High Peak Power Powerchip Laser?
The PNU-M01210 1x0 High Peak Power Powerchip Laser has an excellent beam quality with TEM00 M²<1.1.
What are some applications of the PNU-M01210 1x0 High Peak Power Powerchip Laser?
The PNU-M01210 1x0 High Peak Power Powerchip Laser can be used for materials processing such as inscribing glass, via drilling printed circuit boards, and micromachining. It can also be used for MALDI-TOF, microdissection, laser-induced fluorescence (LIF), time-resolved fluorescence, laser-induced breakdown spectroscopy (LIBS), and light detection and ranging (LIDAR).
What is included in the PNU-M01210 1x0 High Peak Power Powerchip Laser package?
The PNU-M01210 1x0 High Peak Power Powerchip Laser features a completely integrated platform which includes the laser head, power supply, and air cooling in a compact, rugged, and turnkey package.
