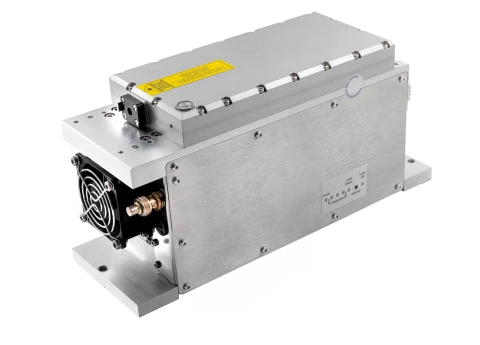

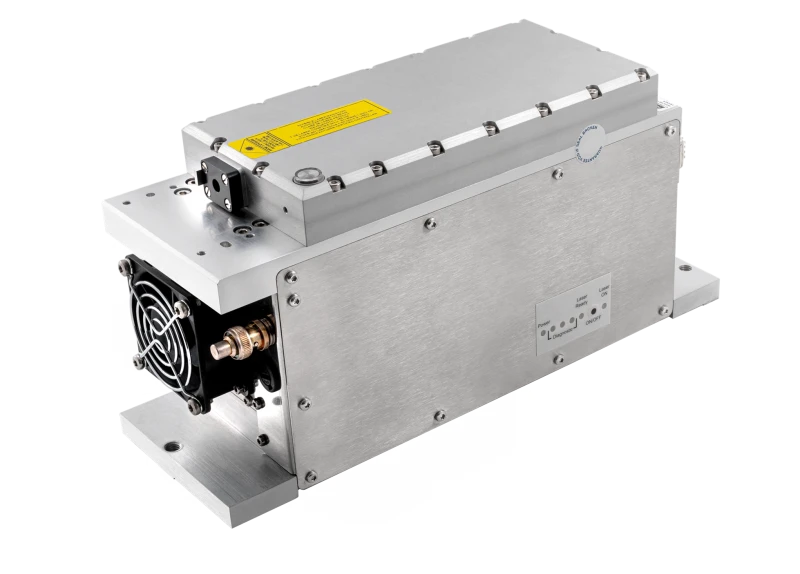

Thumbnail of PNP-M08010 1x0 High Peak Power Powerchip Laser photo 1

Description

The PowerChip™ passively Q-switched MicroChip lasers offer the highest peak powers and shortest pulses at kilohertz repetition rates with an excellent beam quality. They feature a completely integrated platform which includes the laser head, power supply and air cooling in a compact, rugged, and turnkey package.

PNP-M08010 1x0 High Peak Power Powerchip Laser

Visit the Teem Photonics Store

Specifications

Avg. Power: 0.08 W
Wavelength: 1064 nm
Repetition Rate: 1 – 1 kHz
Spatial Mode (M^2): 1.3
Pulse Duration: 0.5 ns
Pulse-to-Pulse Stability (RMS): 3 %
Cooling: Air
Beam Profile: Gaussian TEM00
Beam Ellipticity: <1.3
Polarization Extinction Ratio: >20dB
Peak Power: >160kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Peak power up to 200 kW
  • Pulse width down to 350 ps
  • 1064, 532, 355 and 266 nm
  • Single shot to 1000 Hz
  • Excellent beam quality, TEM00 M²<1.1
  • All-in-one package

Applications

  • Materials Processing
    • Inscribing glass
    • Via drilling printed circuit boards
    • Micromachining
  • MALDI-TOF
  • Microdissection
  • Laser Induced Fluorescence (LIF)
  • Time Resolved Fluorescence
  • Laser Induced Breakdown Spectroscopy (LIBS)
  • Light Detection and Ranging (LIDAR)

Frequently Asked Questions

What is the peak power of the PNP-M08010 1x0 High Peak Power Powerchip Laser?
The peak power of the PNP-M08010 1x0 High Peak Power Powerchip Laser can go up to 200 kW.
What is the pulse width range of the PNP-M08010 1x0 High Peak Power Powerchip Laser?
The pulse width range of the PNP-M08010 1x0 High Peak Power Powerchip Laser is down to 350 ps.
What are the available wavelengths for the PNP-M08010 1x0 High Peak Power Powerchip Laser?
The available wavelengths for the PNP-M08010 1x0 High Peak Power Powerchip Laser are 1064, 532, 355, and 266 nm.
What is the beam quality of the PNP-M08010 1x0 High Peak Power Powerchip Laser?
The PNP-M08010 1x0 High Peak Power Powerchip Laser has an excellent beam quality with TEM00 M²<1.1.
What are the applications of the PNP-M08010 1x0 High Peak Power Powerchip Laser?
The applications of the PNP-M08010 1x0 High Peak Power Powerchip Laser include materials processing such as inscribing glass, via drilling printed circuit boards, and micromachining, as well as other applications like MALDI-TOF, microdissection, LIF, time-resolved fluorescence, LIBS, and LIDAR.

Got more questions? Use the inquiry form to ask the supplier directly.
