Description
The PowerChip™ passively Q-switched MicroChip lasers offer the highest peak powers and shortest pulses at kilohertz repetition rates with an excellent beam quality. They feature a completely integrated platform which includes the laser head, power supply and air cooling in a compact, rugged, and turnkey package.

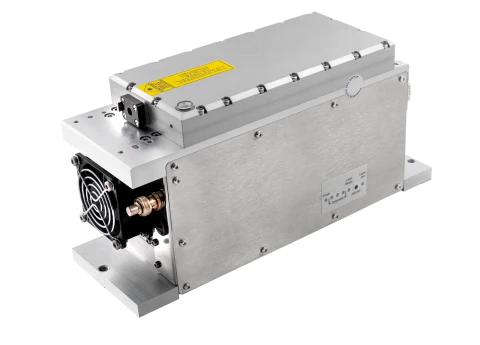

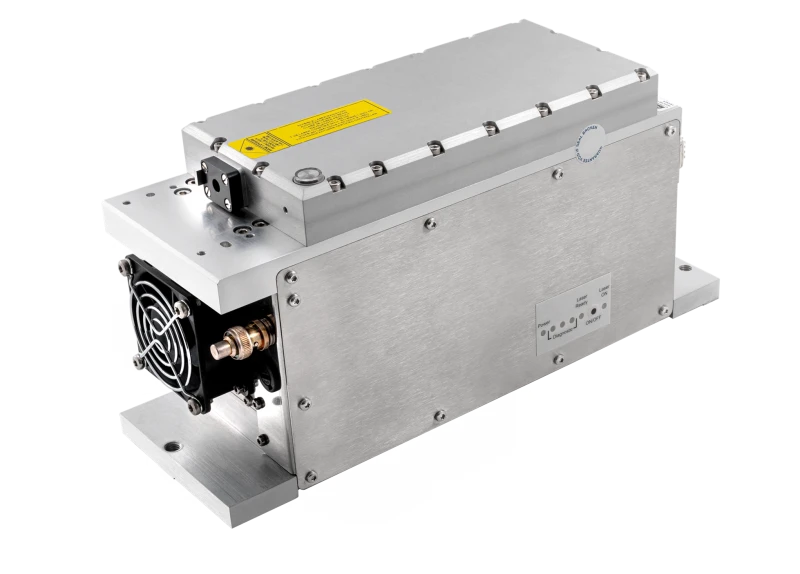

PNG-M04005 1x0 High Peak Power Powerchip Laser
Specifications
| Avg. Power: | 0.018 W |
|---|---|
| Wavelength: | 532 nm |
| Repetition Rate: | 0.5 – 0.5 kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 0.4 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |
| Cooling: | Air |
| Beam Profile: | Gaussian TEM00 |
| Beam Ellipticity: | <1.3 |
| Peak Power: | >80kW |
| Polarization Extinction Ratio: | >20dB |
Download Data Sheet
Features
- Peak power up to 200 kW
- Pulse width down to 350 ps
- 1064, 532, 355 and 266 nm
- Single shot to 1000 Hz
- Excellent beam quality, TEM00 M²<1.1
- All-in-one package
Applications
- Materials Processing
- Inscribing glass
- Via drilling printed circuit boards
- Micromachining
- MALDI-TOF
- Microdissection
- Laser Induced Fluorescence (LIF)
- Time Resolved Fluorescence
- Laser Induced Breakdown Spectroscopy (LIBS)
- Light Detection and Ranging (LIDAR)
Frequently Asked Questions
What is the peak power of the PowerChip laser?
The peak power of the PowerChip laser can go up to 200 kW.
What is the pulse width range of the PowerChip laser?
The pulse width range of the PowerChip laser is down to 350 ps.
What is the beam quality of the PowerChip laser?
The PowerChip laser has an excellent beam quality, with TEM00 M² 1.1.
What are some applications of the PowerChip laser?
The PowerChip laser can be used for materials processing such as inscribing glass and via drilling printed circuit boards, as well as for MALDI-TOF, microdissection, LIF, time-resolved fluorescence, LIBS, and LIDAR.
What is the stability of the PowerChip laser's output power?
The long-term output power stability of the PowerChip laser is ≤3% and the short-term pulse-to-pulse stability is 1σ.
