Description

The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials.

Also available at 266nm, 355nm, 532nm and 1064nm, the internal optical layout and accurate temperature management of the Onda series enables high output energies without compromising the lifetime of the THG and FHG stages. Depending on wavelength, the Onda is operational from single shot up to 100 kHz with a pulse duration between 2 and 15 ns.

The Onda series is an OEM laser configuration whose compactness and ease of use allow for a straight-forward integration with superior flexibility and good performance to cost ratio.  The Onda is also available with our optional Cbox controller with a proprietary GUI software interface for simplified remote control and monitoring of the laser.

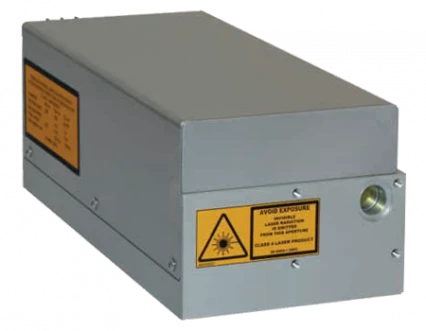

Onda 1064: 1064nm High Energy Laser

Specifications

Avg. Power: 15 W
Wavelength: 1064 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 1.5
Pulse Duration: 2 ns
Pulse-to-Pulse Stability (RMS): Not Specified
Cooling: Air

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Up to 0.8mJ pulse energy
  • @266nm @355nm @532nm @1064nm
  • 2 to 10ns pulsewidth
  • Single shot to 100kHz
  • MOPA configurations
  • Monolithic design
  • Air cooling
  • Low heat waste

Applications

  • Specialty marking
  • Micromachining of glass
  • Electronic manufacturing
  • LIDAR and bathymetry
  • Thin film removal
  • Hole drilling

Frequently Asked Questions

What is the Onda 1064 laser used for?
The Onda 1064 laser is used for high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials.
What is the pulse energy of the Onda 1064 laser?
The pulse energy of the Onda 1064 laser is up to 800 uJ at 266nm, 355nm, 532nm, and 1064nm.
What is the pulse width of the Onda 1064 laser?
The pulse width of the Onda 1064 laser is between 2 and 12 ns.
What is the repetition rate of the Onda 1064 laser?
The repetition rate of the Onda 1064 laser is from single shot up to 100 kHz.
Is the Onda 1064 laser easy to integrate?
Yes, the Onda 1064 laser is an OEM laser configuration whose compactness and ease of use allow for a straight-forward integration with superior flexibility and good performance to cost ratio.
