Description
The industrial-grade nanosecond solid-state laser feature a unique resonator design to ensure stability at high power and high repetition rates, and are equipped with a high-precision cooling system. The high-precision electric control platform is designed for high pulse stability while obtaining high-quality beams through a transmission-type spatial filter module.
With superior beam quality (M2 < 1.2), pulse width less than 25ns, and a small heat-affected zone during processing, it particularly suitable for precision
machining applications.

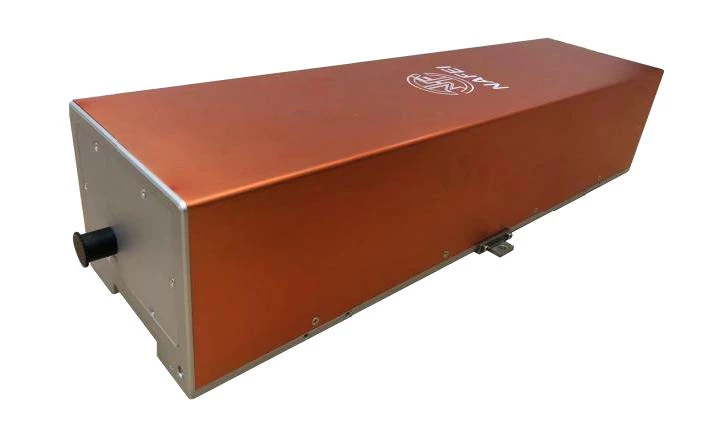

532 nm Nanosecond Solid-state Laser
Fuzhou Min-optronics.com Technology Co.,Ltd
Specifications
| Avg. Power: | 30 W |
|---|---|
| Wavelength: | 532 nm |
| Repetition Rate: | 1 – 500 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 25 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
Download Data Sheet
Features
- Compact structure
- High power and stability
- High repetition rate
- High beam quality
- Stable pulse sequence
Applications
- PCB/FPCB cutting
- Cutting and drilling of glass and ceramic materials
- Laser Marking
- Solar cell processing
- Laser stripping
- SLA 3D printing
