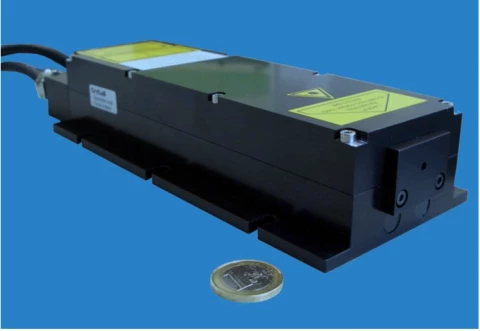

FQSS 266-50 Diode Pumped Q-Switched Laser Solid-State Laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Description
The FQSS 266-50 laser by CRYLAS GmbH is a cutting-edge diode-pumped, passively Q-switched solid-state laser designed for precision and reliability. Operating at a wavelength of 266 nm, this laser system is engineered to deliver exceptional performance across various scientific fields, including biology, biomedicine, chemistry, and analytics. With its compact design and advanced technology, the FQSS 266-50 is an ideal choice for research and industrial applications requiring high precision and stability.
This laser system boasts a single pulse duration ranging from 0.9 to 1.3 nanoseconds, ensuring rapid and efficient operation. It offers a pulse repetition rate that can be externally triggered from 1 to 100 Hz, with an optional upgrade to 1 kHz for more demanding applications. The FQSS 266-50 delivers a pulse energy of over 50 µJ at 1-100 Hz, and its peak power ranges between 45 kW and 65 kW, providing the necessary power for intricate tasks.
Engineered for precision, the FQSS 266-50 features a TEM00 spatial mode with an M² value of less than 1.5, ensuring high-quality beam profiles. The beam divergence is kept under 3.0 mrad, and the beam ellipticity is maintained below a 1.5:1 ratio, making it suitable for applications that demand high beam quality. Additionally, the laser's polarization ratio exceeds 100:1, vertical, which is critical for certain experimental setups.
Designed with user convenience in mind, the FQSS 266-50 includes a range of interface options such as RS 232 and USB, allowing seamless integration into existing systems. The laser is also equipped with a manual or electrical driven wavelength switch, enabling easy transitions between 266 nm and 532 nm wavelengths. The system's warm-up time is less than 10 minutes, ensuring minimal downtime and maximum productivity.
Safety and compliance are paramount with the FQSS 266-50, which is classified as a Class 4 laser product according to IEC 60825-1:2007 standards. It also complies with 21 CFR 1040.10 and 1040.11, with specific deviations as noted in Laser Notice No. 50. This ensures that users can operate the laser with confidence, knowing that it meets rigorous safety standards.
FQSS 266-50 Diode Pumped Q-Switched Laser Solid-State Laser
Specifications |
|
|---|---|
| Avg. Power: | 0.005 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 1 – 0.1 kHz |
| Spatial Mode (M^2): | 1 |
| Pulse Duration: | 1.3 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 50 uJ |
Features
- High Peak Power: Generates >130 kW peak power at 20 Hz for demanding UV applications
- Short Pulse Duration: Delivers <1.5 ns pulses for high temporal resolution tasks
- High Pulse Energy: Produces >200 µJ per pulse at 266 nm for effective UV processing
- Adjustable Repetition Rate: Supports 1 – 60 Hz via external trigger for operational flexibility
- Excellent Beam Quality: Features <3.0 mrad divergence and <2:1 beam ellipticity
- Stable Output: Maintains pulse energy stability within ±5% over six hours
- Compact Design: Laser head measures just 217 x 65 x 45 mm for easy integration
- Versatile Interfaces: Equipped with RS-232 and USB for straightforward control
- Low Power Consumption: Operates efficiently with <90 W electrical consumption
Applications
- UV Micromachining: Enables precision processing of materials with sub-nanosecond UV pulses
- Fluorescence Spectroscopy: Ideal for excitation in time-resolved and analytical spectroscopy
- Biomedical Research: Suitable for laser ablation, cell manipulation, and UV-based imaging
- Chemical Analysis: Supports photolysis and trace detection in analytical chemistry
- OEM Systems: Compact and efficient design for seamless integration into analytical instruments
Frequently Asked Questions
The CryLaS FQSS-266-50 laser system is widely used in biology, biomedicine, chemistry, analytics, micromachining and environmental technology.
Yes, the CryLaS FQSS-266-50 laser system has internal energy monitoring and closed loop control of output energy, making it user-friendly.
The pulse duration of the CryLaS FQSS-266-50 laser system is between 0.9-1.3 ns.
The CryLaS FQSS-266-50 laser system emits at a wavelength of 266 nm.
The maximum output of the CryLaS FQSS-266-50 laser system is 120 µJ.
