Description
CryLaS provides passively Q-switched laser systems (DPSS) emitting at wavelengths of 213 nm, 266 nm, 355 nm, 532 nm and 1064 nm with excellent beam quality.
Thousands of lasers of the passively q-switched series “FTSS 355-50” have been supplied and are in industrial operation for more than 7 years.

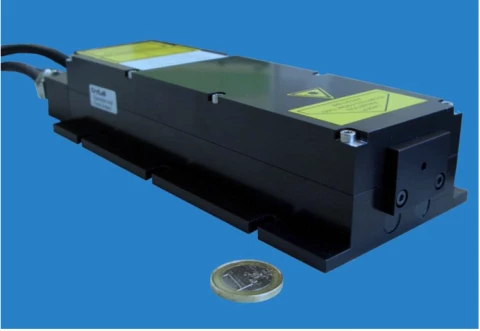

CryLaS FDSS-532-150
Specifications
| Avg. Power: | 0.015 W |
|---|---|
| Wavelength: | 532 nm |
| Repetition Rate: | Not Specified |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 1.1 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
| Energy / Pulse: | 150 uJ |
Download Data Sheet
Features
Plug and play
Air-cooled
Small footprint very compact
Short pulsed
TEM00
Closed loop control of output energy
Internal energy monitoring
User friendly
Applications
Pulsed lasers from the IR to the deep UV ranges of the spectrum are widely used in biology, biomedicine, chemistry, analytics, micromachining and environmental technology.
Frequently Asked Questions
What is the CryLaS FDSS-532-150?
The CryLaS FDSS-532-150 is a diode pumped passively Q-switched solid state laser that emits at a wavelength of 532 nm.
What are some applications of the CryLaS FDSS-532-150?
The CryLaS FDSS-532-150 is used in biology, biomedicine, chemistry, and analytics.
What is the pulse duration of the CryLaS FDSS-532-150?
The pulse duration of the CryLaS FDSS-532-150 is between 1.1 and 1.5 nanoseconds.
What is the maximum repetition rate of the CryLaS FDSS-532-150?
The maximum repetition rate of the CryLaS FDSS-532-150 is 100 Hz.
What is the maximum output of the CryLaS FDSS-532-150?
The maximum output of the CryLaS FDSS-532-150 is 300 µJ.
