Description
The AWAVE SERIES by Advanced Optowave represents a pinnacle of industrial laser technology, designed to meet the rigorous demands of continuous production environments. At the heart of this innovation is the NANO-GR-527/532, which employs cutting-edge end-pumping technology to deliver exceptional performance. This series is renowned for its air-cooling capability, supporting average power outputs of up to 10W, which ensures efficient and consistent operation.
One of the standout characteristics of the AWAVE GR Series is its commitment to quality and stability. Users can expect excellent beam quality, pulse stability, and point stability, all of which are crucial for precision applications. The integration of patent-pending harmonic conversion technologies further enhances the laser's capabilities, making it a versatile tool for a variety of industrial applications.
Designed with practicality in mind, the AWAVE GR Series lasers are ultra-compact and lightweight, which simplifies installation and integration into existing systems. They feature brand-new focusing optics and a field-replaceable diode, making maintenance straightforward and reducing operational downtime. These lasers are engineered for 24/7 reliability, ensuring that they can withstand the demands of continuous use while maintaining a low operational cost.

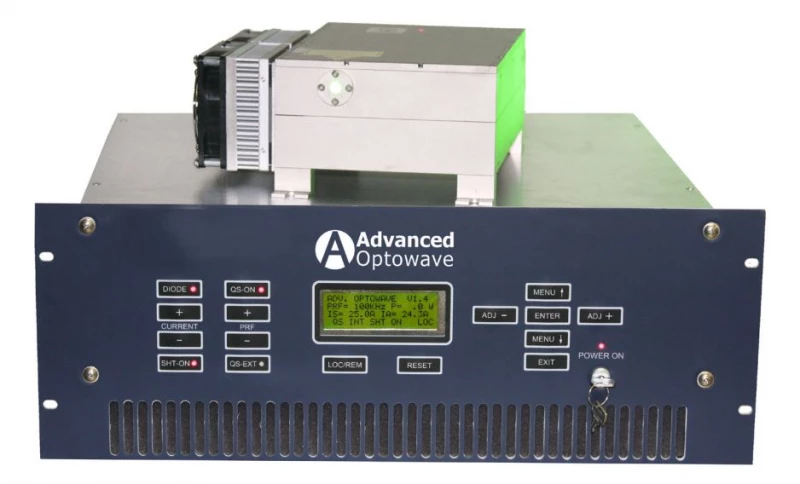

The AWAVE GR Series is built with a flexible architecture, allowing for customization to meet specific requirements. Each system comprises a laser head and a laser controller, connected by a 2.5-meter umbilical cable. The fiber-coupled pumping diodes are housed within the laser controller, facilitating easy field replacement. The laser head is sealed in a clean room environment, guaranteeing long-term reliability and performance.
With pulse frequencies ranging from 1-300 kHz (and optional extension up to 1 MHz), and average power capabilities from 10mW to 30W, the AWAVE GR Series offers a broad spectrum of operational parameters. For applications requiring power above 30W, the AW-HP Series is recommended. Advanced Optowave's commitment to continuous product improvement ensures that the AWAVE Series remains at the forefront of laser technology, providing solutions that exceed standard specifications.
AONano 527-20W-10K ND:YLF GR Laser
Specifications |
|
|---|---|
| Avg. Power: | 20 W |
| Wavelength: | 527 nm |
| Repetition Rate: | 1 – 20 kHz |
| Spatial Mode (M^2): | 1.2 |
| Pulse Duration: | 30 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Air |
| Spatial Mode: | TEM00 |
| Beam Roundness: | >90% |
| Pulse Energy (mJ @ 1kHz): | >300uJ |
| Polarization Ratio: | >100:1 LINEAR, VERTICAL |
| Communication Protocol: | RS-232 |
| Operating Voltage (VAC): | 90-260 |
| Line Frequency (Hz): | 47-63 |
| Operation Temperature: | 15º - 30º C |
| Storage Temperature: | -20º - 50º C |
Features
- Innovative End-Pumping Technology: Utilizes advanced end-pumping for superior performance.
- Air-Cooling: Efficient air-cooling system supports average power up to 10W.
- Excellent Beam Quality: Offers outstanding beam quality, pulse stability, and point stability.
- Patent Pending Harmonic Conversion Technologies: Cutting-edge technology for enhanced laser performance.
- Ultra-Compact & Light-Weight: Designed for easy integration and transport.
- Brand-New Focusing Optics: State-of-the-art optics for precision applications.
- Field-Replaceable Diode: Allows for quick and easy diode replacement in the field.
- 24/7 Proven Reliability: Engineered for continuous operation in demanding environments.
- Low Operational Cost: Economical design reduces overall operating expenses.
- Flexible Laser Architectures: Customizable designs to meet specific production requirements.
- Wide Pulse Frequency Range: Pulse frequencies from 1-300 kHz, with options up to 1 MHz.
- Versatile Power Options: Average power from 10mW to 30W, with pulse energy exceeding 10mJ.
- Sealed Clean Room Laser Head: Ensures long-term reliability and performance.
- Comprehensive Warranty: Limited warranty coverage for peace of mind.
Applications
- Semiconductor Processing: Precision scribing, dicing, and micro-drilling.
- Medical Device Manufacturing: Micromachining of metals and polymers.
- Solar Cell Production: Thin film patterning and edge isolation.
- Display Panel Fabrication: Laser cutting and structuring of display components.
- Scientific Research: High-stability laser source for experimental setups.
Frequently Asked Questions
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection applications, and other type of material processing.
The pulse frequency range of the AWAVE GR Series laser is 1-300 kHz (300 kHz to 1 MHz is optional).
The average power range of the AWAVE GR Series laser is from 10mW to 30W.
The pulse energy of the AWAVE GR Series laser is in excess of 10mJ.
Yes, the AWAVE GR Series laser can be customized. Contact Advanced Optowave for any laser requirements exceeding standard specifications.
