Description
The SUB50A-700 model is an air-cooled Electro-Optically Q-switched DPSS 1064 nm laser delivering up to 50 mJ energy and 700 ps pulse duration at 20 Hz repetition rate. Laser design is based on short laser cavity direct pumping MO and power amplifiers with the VCSEL pump technology. The know-how on thermo-stabilized structure fixed MO and AMPL elements gives extremely stable output parameters performance. Small laser form-factor and unique ≤200 ps optical jitter is welcome point for integration into OEM. Due to relatively high pulse energy, good M2≤1.3 parameter and short sub-ns pulse duration, laser delivers up to 71 MW peak power. An optional conversion module to green (532 nm) and ultraviolet (355 nm, 266 nm) is available.

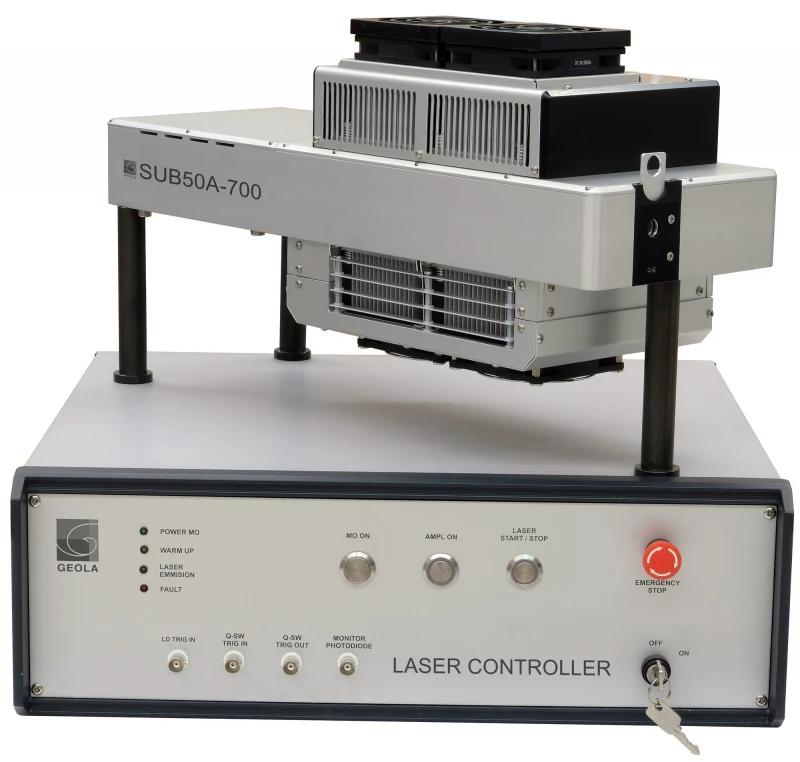

Air-Cooled SUB-Nanosecond E-O Q-Switched Laser SUB50A-700
Specifications
| Avg. Power: | 1 W |
|---|---|
| Wavelength: | 1064 nm |
| Repetition Rate: | 0.02 – 0.1 kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 0.7 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Air |
| Model: | SUB50A-700 |
| Wavelength: | 1064 nm |
| Pulse Energy: | up to 50 mJ |
| Typical Pulse Duration: | ~ 700 ps |
| Pulse To Pulse Energy Stability: | < 1 % RMS |
| Power Drift: | ± 3.0 % |
| Pulse Repetition Rate: | 20 Hz |
| Beam Profile: | Near Gaussian |

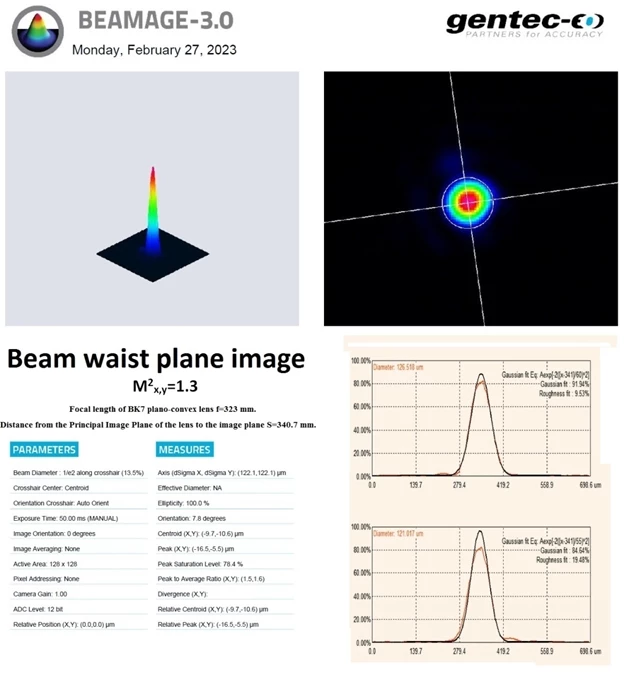

| M2: | ≤1.3 |
| Beam Divergence: | < 1 mrad |
| Polarization: | Linear, vertical |
| Spectral Linewidth: | SLM |
| Beam Pointing Stability: | ≤ 100 µrad |
| Typical Beam Diameter: | ~5 mm |
| Optical Jitter: | ≤ 200 ps RMS |
| Dimensions (Laser Head): | 167 × 478×232 mm |
| Dimensions (Controller Unit): | 470 × 445 × 165 mm |
| Beam Height: | 133 mm |
| Cooling Requirements: | Air cooled |
| Ambient Temperature: | 15 – 25 °C |
| Relative Humidity (non-condensing): | 10 – 80 % |
| Mains Voltage: | 230 VAC, single phase, 50-60 Hz |
| Power Consumption: | < 450 W |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Opticall jitter ≤ 200 ps
- Water-free cooling
- Pike power >70 MW in small form factor
- 700 ps pulse duration
- Harmonics available
Applications
- LIBS (Light Induced Breakdown Spectroscopy)
- Mass Spectroscopy (Time of flight mass spectrometry)
- LIF (Light Induced Fluorescence)
- LIDAR (Light Detection And Ranging)
- Material processing
- Remote Sensing
