Description
The PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser represents the pinnacle of laser technology, engineered and manufactured by mirSense in France. Leveraging state-of-the-art quantum cascade laser (QCL) technology, these lasers are designed to meet the demands of modern scientific research, industrial applications, and environmental monitoring with unparalleled performance and reliability.
At the heart of the PowerMir laser systems lies cutting-edge quantum cascade laser technology. By harnessing the unique properties of semiconductor materials, these lasers emit high-power pulsed radiation at a wavelength of approximately 4.8 microns. This specific wavelength range is particularly advantageous for a wide array of applications, including spectroscopy, gas sensing, and industrial processing.
One of the standout features of the PowerMir laser systems is their ITAR-free status, proudly manufactured in France. This ensures that users around the world can benefit from the advanced capabilities of these lasers without restrictions on export or use. Moreover, mirSense has achieved outstanding levels of power and wall-plug efficiency performance, making the PowerMir lasers highly cost-effective and environmentally friendly solutions.
Recognizing the diverse needs of customers, mirSense offers the PowerMir lasers in various configurations to suit different application requirements. Whether you need a plug-and-play benchtop turnkey system for laboratory research, an OEM module for integration into a larger product, or standalone HHL-packaged lasers for specific applications, there's a PowerMir solution tailored to your needs.

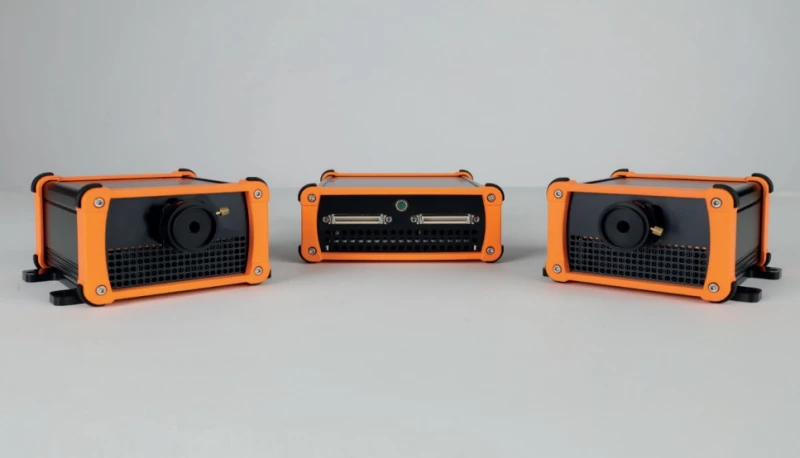

PowerMir 4.8µm High Power Pulsed Quantum Cascade Turnkey System 3000mW
Specifications
| Output Power (avg): | 3 W |
|---|---|
| Wavelength: | 4.8 um |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Pulse Frequency: | 500 kHz |
| Divergence (Standard Beam): | 3 to 6 mrad (horizontal), 2 to 4 mrad (vertical) |
| Beam Quality: | TM00 Gaussian beam, M²<1.5 |
| Output Beam Dimension: | Typically 3 mm (vertical) x 2 mm (horizontal) |
| Polarization: | Linear vertically polarized (>98%) |
| Reliability: | >3500 hours |
| Operational Temperature: | -20 to +30 °C |
| Packaging: | Hermetically sealed with nitrogen gas fill inside HHL package |
| Built-in TEC: | Included, Imax = 5.2A, Vmax = 15.7V |
| Weight: | 120 g |
| Input Power: | 24 VDC |
| Dimensions: | 4.45 x 11 x 2.5 cm |
| Mode Of Operation: | Quasi-CW, high duty cycled pulsed |
Download Data Sheet
Features
- ITAR Free Technology: Manufactured in France, the PowerMir laser systems are ITAR free, ensuring ease of export and use
- Quasi-CW Operation: Operates in a quasi-CW mode, optimizing wall-plug efficiency and minimizing thermal dissipation
- Reproducible Specs Manufacturing: Provides reproducible specifications manufacturing for series productions, ensuring consistent performance
- Beam Quality: Produces TM00 Gaussian beam with M²<1.5, ensuring high-quality output.
- Multiple System Configurations: Available in HHL-packaged lasers, OEM modules, or plug-and-play benchtop turnkey systems, offering flexibility to meet diverse application needs
- Temperature and Current Control: Incorporates temperature and current control mechanisms for precise operation and stability
- Modulation Capabilities: Supports both external (TTL) and internal modulation, allowing for flexible control of laser power
- High Reliability: Offers high reliability with over 3500 hours of operational lifespan
- Hermetically Sealed Packaging: HHL-packaged lasers feature hermetically sealed packaging with dry N2 air inside, ensuring durability and reliability in various environments
Applications
- Research and Development: Ideal for laboratory development purposes, offeringprecise control and modulation capabilities
- OEM Integration: Suitable for integration into OEM products and systems, providingreliable performance and flexibility
- Spectroscopy: Well-suited for spectroscopic applications requiring high-power outputand precise wavelength control
- Environmental Monitoring: Enables precise measurements in environmentalmonitoring applications, including gas sensing and pollution detection
- Industrial Processing: Suitable for industrial processing applications such as materialprocessing, welding, and marking
Frequently Asked Questions
What is a Quantum Cascade Laser (QCL), and how does it differ from other types of lasers?
A Quantum Cascade Laser (QCL) is a type of semiconductor laser that operates on the principle of electron transitions within specially designed quantum wells. Unlike traditional diode lasers, QCLs emit in the mid-infrared (MIR) range, making them ideal for applications such as spectroscopy, gas sensing, and industrial processing.
What are the key advantages of the PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser?
The PowerMir laser offers several key advantages, including: high-power pulsed output at a wavelength of approximately 4.8 microns; ITAR-free status, manufactured in France, ensuring unrestricted global use; outstanding power and wall-plug efficiency performance, reducing operational costs; as well as versatile configurations to suit various application requirements, from laboratory research to industrial integration.
What is the operational lifespan of the PowerMir laser systems?
The PowerMir laser systems boast exceptional reliability, with an operational lifespan exceeding 3500 hours under typical operating conditions. This ensures long-term performance and minimal downtime for users across various industries.
How does the PowerMir laser ensure precise control and modulation? .
The PowerMir laser systems feature advanced control mechanisms, including temperature and current control, external TTL modulation, and user-friendly Windows software. These capabilities allow users to fine-tune laser parameters and achieve optimal performance for their specific experiments or processes.
What are some typical applications of the PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser?
The PowerMir laser finds utility across a wide range of industries and applications, including: spectroscopic analysis and chemical sensing; gas detection and environmental monitoring; Industrial material processing, welding, and laser marking; medical diagnostics and healthcare research; defense and security applications, such as explosives and more.
Can the PowerMir laser be integrated into existing systems or equipment?
Yes, mirSense offers OEM modules designed for seamless integration into existing systems or equipment. These modules feature compact designs, precise control mechanisms, and compatibility with industry-standard communication protocols, allowing for easy integration across various platforms.
How does mirSense ensure the quality and reliability of the PowerMir laser systems?
mirSense follows rigorous quality control procedures throughout the manufacturing process to ensure the highest standards of quality and reliability. Additionally, each PowerMir laser undergoes extensive testing and validation before leaving the factory, ensuring consistent performance and customer satisfaction.
What technical support and documentation are available for PowerMir laser users?
mirSense provides comprehensive technical support and documentation for PowerMir laser users, including user manuals, application notes, and software guides. Additionally, our team of experts is available to provide assistance and troubleshooting to ensure a seamless user experience.
How can I purchase or inquire about the PowerMir 4.8µm High Power Pulsed Quantum Cascade Laser?
To purchase or inquire about the PowerMir laser systems, please contact our sales team through the "Inquire Price" button on this page. Our representatives will be happy to assist you with product inquiries, customization options, and pricing information.
