Description

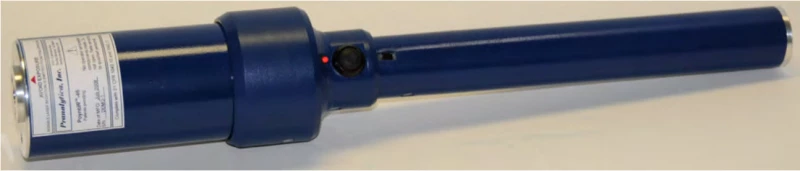

**Introducing the BeckonIR™-XX-YYYY Handheld Infrared Beacon** The BeckonIR™-XX-YYYY by Pranalytica, Inc. is a state-of-the-art handheld infrared beacon designed to deliver exceptional performance in a compact form. Utilizing advanced quantum cascade laser (QCL) technology, this autonomous beacon serves as a high average power, pulsed source of infrared radiation. Operating at a wavelength of 4.6 µm, it produces over 2.0 watts of average power, while at 8.5 µm, it generates up to 1.5 watts.
The system supports a range of wavelengths from 4 to 12 µm, each offering varying power levels to suit diverse applications. This innovative system provides a fully collimated beam with up to 90 degrees of divergence, with additional beam shapes available, including 2π coverage. Despite not being optimized for minimum size, the BeckonIR™-XX-YYYY is self-contained, featuring rechargeable or disposable batteries that allow for multi-hour operating times.
The device can be configured as a fieldable system weighing less than 400 grams, with dimensions not exceeding 15 cm x 6 cm x 3 cm, including batteries. Further size reductions can be achieved, making it an ideal choice for portable applications. **Advanced Pulse Shaping and Stability** The BeckonIR™-XX-YYYY is equipped with sophisticated pulse shaping and power conditioning electronics housed within a hermetically sealed package. This package includes the QCL and associated output beam optics, ensuring reliable performance.
The system supports a wide variety of output pulse trains, including complex sequences, and requires no field adjustments, maintaining stability over extended periods. An OEM version is also available for integration into customer instrumentation, providing flexibility for various deployment scenarios. **Contact Information** For more information or to discuss specific requirements, please contact Mr. Frank McGuire at Pranalytica, Inc., an ISO 9001 Certified Company. Reach out via phone at (310) 458-4493 or email at fxmcguire@pranalytica.com.
Model Beckon/R - Handheld Infrared Laser
Specifications |
|
|---|---|
| Output Power (avg): | 2 W |
| Wavelength: | 4.6 um |
| Pulse Duration: | 100 – 200 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Output Power Range: | W |
| Wavelength Range: | um |
Features
- High Average Power Output: The BeckonIR™-XX-YYYY delivers over 2.0 W of average power at 4.6 µm and over 1.5 W at both 4.0 µm and 8.5 µm. Other wavelengths between 4 and 12 µm are available with varying power levels.
- Versatile Wavelength Options: Available wavelengths include ~4.0 µm, ~4.6 µm, ~7.1 µm, ~8.5 µm, ~9.5 µm, with custom options between 3.8 µm and 12 µm.
- Flexible Beam Configuration: Offers collimated or divergent beam shapes with coverage from 5 milliradians to ~2π.
- Compact and Lightweight Design: The fieldable system weighs less than 400 g and measures no greater than 15 cm x 6 cm x 3 cm, including batteries. The OEM package is even more compact at 2.5 cm (W) x 9.3 cm (L) x 1.2 cm (H) and weighs approximately 50 g.
- Extended Runtime: Provides over 8 hours of continuous operation at 1 W power output at 4.6 µm.
- Rapid Charging: Fully charges in less than 3 hours.
- Pulse Flexibility: Configurable for a wide variety of output pulse trains, including complex sequences and 150 ms "superpulses" at 2 Hz, with 200 ns, 500 kHz individual pulses within the superpulse.
- Smart Features: Includes a reprogrammable Smart On/Off button and a dedicated power lockout switch for safe storage.
- Quality Assurance: Manufactured by Pranalytica, Inc., an ISO 9001 Certified Company, ensuring high-quality standards.
Applications
- High Average Power Output: The BeckonIR™-XX-YYYY can produce over 2.0 W of average power at 4.6 µm and 1.5 W at 8.5 µm. Other wavelengths between 4 and 12 µm are also available.
- Customizable Beam Shapes: Offers fully collimated beam to 90 degrees divergence and other shapes, including 2π coverage.
- Portable and Lightweight: The system is self-contained, weighing less than 400 g and measuring no more than 15 cm x 6 cm x 3 cm, including batteries.
- Long Operating Time: Provides multi-hour run times with rechargeable or disposable batteries.
- Hermetically Sealed: Encloses pulse shaping and power conditioning electronics along with QCL and optics.
- Stable and Maintenance-Free: Designed for stability over long periods with no field adjustments required.

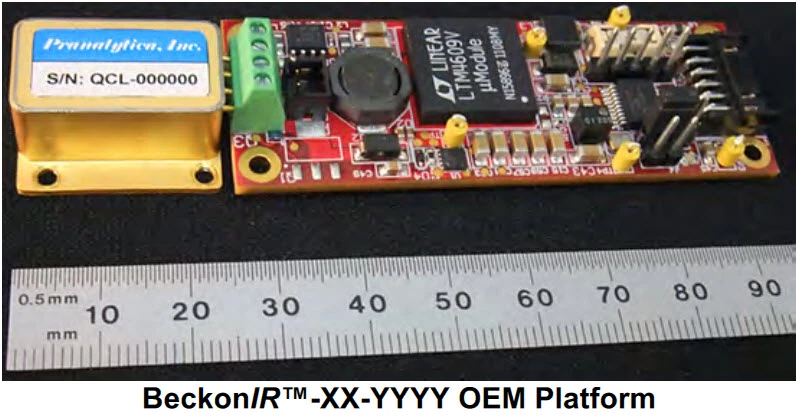

- OEM Version Available: Can be incorporated into customer instrumentation, with further size reductions possible.
- Complex Pulse Trains: Configurable for a wide variety of output pulse trains, including complex sequences.
- Smart Features: Features a smart On/Off button and a dedicated power lockout switch for safe storage.
Frequently Asked Questions
The system can produce in excess of 2.0 W of average power at a wavelength of 4.6 µm and as much as 1.5 W of average power at a wavelength of 8.5 µm. Other wavelengths between 4 and 12 µm are also available, with varying power levels.
The system provides multi-hour operating run times and can run for over 8 hours at 1 W power output at 4.6 µm.
The output beam is available with fully collimated beam to 90 degrees divergence output beam. Other beam shapes, including 2! coverage, are also available.
The special features of the system include complex optical pulse trains possible, smart On/Off button, dedicated power lockout switch for safe storage, battery drain protection feature, and smart AC charger (included) that prevents battery over-charging.
Yes, the system can be configured for a wide variety of output pulse trains, including complex sequences.
