905nm Hybrid Laser Diodes for Pulsed Operations
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The LHCVN Series from OSI Laser Diode Inc. represents a cutting-edge solution in the realm of hybrid laser diodes, specifically engineered for pulsed operations. These laser diodes are renowned for their high peak power emission, making them a reliable choice for a variety of demanding applications. With a peak emission wavelength centered around 905nm, the LHCVN Series ensures precise and consistent performance, ideal for specialized uses where accuracy is paramount.
Designed with efficiency in mind, the LHCVN Series operates at low voltage, which is a significant advantage over traditional discrete laser drivers. This capability allows for much narrower pulse widths and faster rise times, providing enhanced performance without the need for high voltage requirements. The series is compatible with all OSI Laser Diode, Inc. standard MOCVD laser diodes and can be optimally driven using commercially available MOSFET drivers, ensuring seamless integration into existing systems.

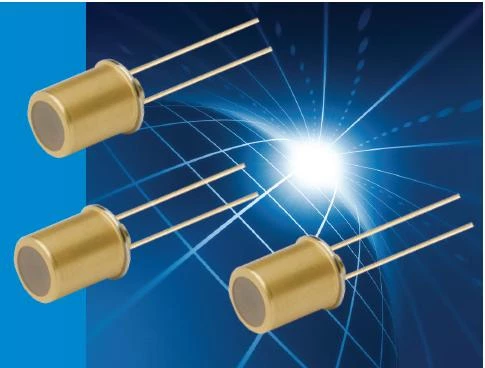

The LHCVN Series is housed in a hermetic TO5 package, which offers increased efficiency while maintaining a compact form factor. This makes it an ideal choice when space and weight are of primary concern, such as in aerospace or portable devices. Additionally, the robust design ensures reliable operation across a broad range of temperatures, making it suitable for various environmental conditions. The LHCVN Series is RoHS compliant, aligning with global standards for environmental safety and sustainability.
When handling the LHCVN Series, it is crucial to adhere to safety precautions due to the Class 3B laser classification. Proper care should be taken to avoid exposure to laser light, which can be harmful to the human eye. Furthermore, electrostatic discharge (ESD) precautions are essential to prevent damage to the diode lasers during handling. For optimal performance, the use of a MOSFET driver is recommended to trigger the hybrid laser diode effectively.
905nm Hybrid Laser Diodes for Pulsed Operations
Specifications |
|
|---|---|
| Output Power (avg): | 200 W |
| Wavelength: | 0.905 um |
| Pulse Duration: | 10 – 10 ns |
| Tuning Range Around Center Wavelength: | <= 200nm |
| Emitter Area: | 200 X 10 - 200 X 480 um |
| Beam Spread: | 9 x 25 degrees |
| Operating Temperature: | °C |
| Operating Voltage (Typical): | V |
Features
- High Peak Power Output: Up to 350 W for powerful short pulses
- 905 nm Peak Emission Wavelength: Ideal for pulsed range-finding and LIDAR
- Narrow Optical Pulse Widths: As short as 10 ns for time-of-flight accuracy
- Fast Rise/Fall Times: 2 ns typical for rapid pulse transitions
- Low Voltage Operation: Operates at voltages as low as 40–100 V
- Hermetic TO5 Package: Compact and rugged design for harsh environments
- Wide Temperature Range: Operates from 0°C to +70°C; storage up to +75°C
- RoHS Compliant: Environmentally safe and lead-free construction
Applications
- LIDAR Systems: Enables high-resolution distance measurement
- Ceilometers: Accurate cloud base detection in meteorological stations
- Surveying Equipment: Provides high peak pulses for optical range finding
- Weapons Simulation: Used in training systems requiring laser pulses
- Time-of-Flight Measurement: Precise timing in scientific and industrial uses
Frequently Asked Questions
The LHCVN series incorporates a pulsed laser firing circuit into the same package as the laser diode.
The LHCVN series is suitable for ceilometers, weapons simulation, surveying, LIDAR, and rangefinders.
The hybridization of the driver permits much narrower pulse widths and faster rise times at lower voltage requirements than discrete laser drivers.
The LHCVN series operates at a typical voltage of lower than 100V.
Please refer to your product purchase agreement for complete details or check with your OSI Laser Diode sales representative.
