High Power Quasi-CW Quantum Cascade Laser at 3.8um
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

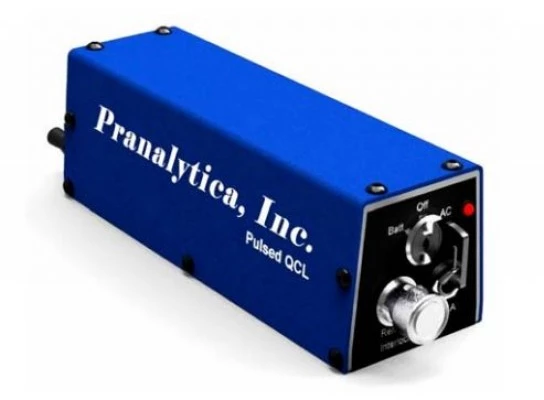

Model 1101-XX-QCW-YYYY-MicroTT-EXT is a state-of-the-art high power quasi-CW micro tabletop quantum cascade laser (QCL) system, designed for those who demand precision and reliability in infrared radiation applications. This advanced laser system delivers over 2 watts of average power at a wavelength of 4.6 µm, with other customizable wavelengths available between 3.8 and 12 µm. Engineered for bench top use, the system is passively cooled and virtually vibration-free, providing a stable and consistent performance in a compact form factor.
The laser system is self-contained, requiring only an external 20 VDC power source to operate. Inside, it houses pulse shaping and power conditioning electronics, along with a hermetically sealed package that includes the QCL and optics necessary for collimating the output laser beam. This design ensures minimal maintenance and no need for field adjustments, while guaranteeing stability over extended periods, especially in stable temperature environments.
For added convenience, the system can be equipped with an internal battery option. Using four CR123A batteries, the QCL can run for more than 30 minutes at 2 watts, with longer run times achievable at lower power settings. This feature provides flexibility and portability, making the Model 1101-XX-QCW-YYYY-MicroTT-EXT an excellent choice for various applications where mobility and ease of use are essential.
For further information or inquiries, please contact Mr. Frank McGuire at Pranalytica, Inc., an ISO 9001 Certified Company, via phone at (310) 458-4493 or email at fxmcguire@pranalytica.com.
High Power Quasi-CW Quantum Cascade Laser at 3.8um
Specifications |
|
|---|---|
| Output Power (avg): | 1.5 W |
| Wavelength: | 3.8 um |
| Pulse Duration: | 200 – 500 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Average Optical Power: | > 2.5 W at 4.6 µm, > 2.0 W at 4.0 µm, >1.5 W at 3.8 µm, > 1.2 W at 7.2 µm and > 1.5 W at 9.3 µm |
| Mode Of Operation: | Quasi-CW, high duty cycle pulsed |
| Repetition Rate: | ~ 500 kHz - 2.0 MHz |
| Wavelength: | ~3.8 µm, ~4.0 µm, 4.6 µm, 7.1 µm, 8.5 µm and 9.3 µm |
| Beam Divergence: | 5 mrad vertical, 5 mrad horizontal |
| Output Beam Spot Size: | ~ 4 mm |
| Laser Head Size: | 5.5” (L) x 1.8” (W) x 1.8” (H) |
| Laser Head Weight: | 11 Oz |
| Power Supply: | External: 20 V DC, Internal: 4 CR123A batteries |
Features
- High Power Quasi-CW Micro Tabletop Quantum Cascade Laser System: Model 1101-XX-QCW-YYYY-MicroTT-EXT offers a high average power, pulsed source of infrared radiation.
- Versatile Wavelength Options: Produces over 2 W of average power at 4.6 µm. Other available wavelengths range from 3.8 to 12 µm.
- Compact and Vibration-Free Design: Passively cooled and designed for bench top use, ensuring a virtually vibration-free operation.
- Self-Contained System: Requires only external 20 VDC power for operation, with internal pulse shaping and power conditioning electronics.
- Stable Long-Term Operation: No field adjustments needed, designed for stability over long periods in stable temperature environments.
- Optional Internal Battery Operation: With four CR123A batteries, the system runs for over 30 minutes at 2 W QCL power, with longer runtimes for lower power QCLs.
- Beam Divergence: 5 mrad vertical and 5 mrad horizontal.
- Beam Quality: Excellent (contact factory for details).
- Output Beam: Nearly collimated with a lens internal to the hermetically sealed QCL package, with an output beam spot size of ~4 mm.
- QCL Package: Hermetically sealed for high reliability in all
Applications
- Gas Sensing: Utilize the high power and specific wavelength capabilities of the QCL system for detecting various gases in industrial and environmental applications.
- Infrared Countermeasures: Employ the system's high average power and pulsed operation for defense and security applications.
- Medical Diagnostics: Use the system's tunable wavelengths for advanced medical imaging and diagnostics.
- Scientific Research: Leverage the system's stable and high-quality beam for laboratory experiments and research in physics and chemistry.
- Material Processing: Apply the QCL system in precision material processing tasks, such as cutting or engraving, where specific infrared wavelengths are beneficial.
- Environmental Monitoring: Deploy the system in remote sensing applications to monitor environmental conditions and pollutants.
- Communications: Use the system's capabilities in free-space optical communications where high power and specific wavelengths are required.
Frequently Asked Questions
A quantum cascade laser (QCL) is a type of semiconductor laser that can generate light in the mid wave to long wave infrared portions of the spectrum.
The Model 1101-XX-QCW-YYYY-MicroTT-EXT quantum cascade laser (QCL) system produces in excess of 2 W of average power at the wavelength of 4.6 µm.
The Model 1101-XX-QCW-YYYY-MicroTT-EXT quantum cascade laser (QCL) system can be used in fields such as spectroscopy, free space optical communications, and directed infrared countermeasures and other security areas.
Yes, the Model 1101-XX-QCW-YYYY-MicroTT-EXT quantum cascade laser (QCL) system is designed for bench top use and is virtually vibration-free.
Yes, the Model 1101-XX-QCW-YYYY-MicroTT-EXT quantum cascade laser (QCL) system is available with the option of internal battery operation. With four CR123A internal batteries, the run time is more than 30 minutes for a 2 W QCL.
