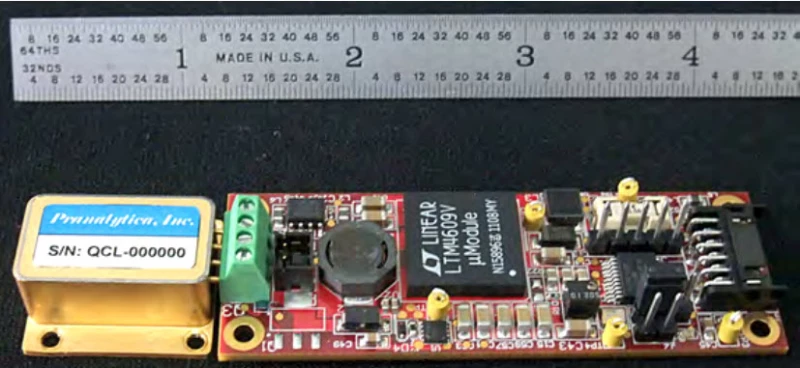

Model 1101-XX-QCW-YYYY-UC-MicroPF: High Average Power Quasi-CW Quantum Cascade Laser Platform The Model 1101-XX-QCW-YYYY-UC-MicroPF quantum cascade laser (QCL) system is a groundbreaking solution designed for OEM applications. Encased in a miniature butterfly package, this innovative product is accompanied by an ultra-small electronics driver board, making it an ideal choice for integration into various platforms. With its capability to produce over 2 W of average power at a wavelength of 4.6 µm and over 1 W at 4.0 µm, this QCL system offers versatility with other available wavelengths ranging from 3.8 µm to 12 µm.
Its passively cooled design ensures virtually vibration-free operation, perfect for environments where stability and reliability are paramount. This self-contained system requires only an external DC power source to function, simplifying integration into existing setups. The pulse shaping and power conditioning electronics are conveniently housed on the PCB, while the hermetically sealed butterfly package contains the QCL and related optics for collimating the output laser beam.
Designed for long-term stability, the system maintains consistent performance over extended periods, provided it operates within a stable temperature environment. This makes it an excellent choice for applications where precision and durability are critical. The Model 1101-XX-QCW-YYYY-UC-MicroPF is engineered to be maintenance-free, requiring no field adjustments. Its robust construction and superior beam quality ensure that it meets the high standards expected in demanding applications.
With its compact platform size of 4.25" (L) x 1" (W) x 0.5" (H) and a weight of only 50 grams, including the integrated electronics board, this laser platform is both lightweight and space-efficient. Whether for research, industrial, or specialized OEM applications, this QCL system offers a reliable and powerful solution.
High Power Quasi-CW QCL Platform for OEM Applications
Specifications |
|
|---|---|
| Output Power (avg): | 3 W |
| Wavelength: | 4.6 um |
| Pulse Duration: | 200 – 500 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Wavelength Range: | um |
Features
- High Average Power: Delivers over 2 W at 4.6 µm and over 1 W at 4.0 µm. Other wavelengths between 3.8 µm and 12 µm are available.
- Quasi-CW Operation: High duty cycle pulsed operation, factory-set. Standard output includes 200 ns – 500 ns pulses with a repetition rate of 1 MHz - 2.0 MHz (~50% duty cycle).
- Optional Configurations: Variable pulse width (20 ns to 200 ns), pulse repetition rate (50 kHz to 2.5 MHz), duty cycle (0.05% to 50%), and pulse amplitude available at extra cost.
- Compact Design: Miniature butterfly package with ultra-small electronics driver board. Platform size is 4.25” (L) x 1” (W) x 0.5” (H), weighing only 50 g.
- Beam Quality: Nearly collimated beam with excellent quality. Beam divergence is 3 mrad vertical and horizontal.
- Hermetically Sealed: QCL package is hermetically sealed for high reliability in all environments.
- Self-Contained System: Requires only an external DC power source to operate. Includes pulse shaping and power conditioning electronics on the PCB.
- Stable and Vibration-Free: Passively cooled and virtually vibration-free, designed for long-term stability in stable temperature environments.
- Electrical Requirements: 12/24 V DC @ 1 A, model dependent.
Applications
- OEM Applications: The Model 1101-XX-QCW-YYYY-UC-MicroPF is designed for OEM applications, allowing easy integration into customer platforms.
- High Average Power: Produces over 2 W of average power at 4.6 µm and over 1 W at 4.0 µm, with other wavelengths available between 3.8 µm and 12 µm.
- Compact Design: Features a miniature butterfly package and ultra-small electronics driver board, making it suitable for space-constrained applications.
- Vibration-Free Operation: The system is virtually vibration-free, ensuring stable performance.
- Self-Contained System: Requires only external DC power for operation, with pulse shaping and power conditioning electronics on the PCB.
- Hermetically Sealed QCL Package: Ensures high reliability in all environments.
- Quasi-CW Operation: Offers quasi-continuous wave operation with high duty cycle pulsed output.
- Customizable Output: Optional variable pulse width, repetition rate, duty cycle, and pulse amplitude available at extra cost.
- Beam Quality: Excellent beam quality with nearly collimated output using an internal lens.
Frequently Asked Questions
It is a high average power, pulsed source platform of infrared radiation for OEM applications in a miniature butterfly package and ultra small electronics driver board.
At a wavelength of 4.6 µm, the system produces in excess of 2 W of average power and at a wavelength of 4.0 µm, the system produces in excess of 1 W of average power. Other wavelengths between 3.8 µm and 12 µm are also available.
The system requires 12/24 V DC @ 1 A (model dependent) to operate.
The beam divergence is 3 mrad vertical and 3 mrad horizontal.
The laser platform weight (including integrated electronics board) is 50 g.
