High Power Pulsed Room Temperature QCL System at 4.6um
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

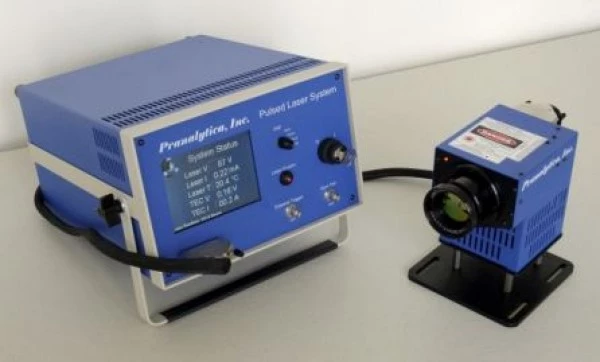

The Laser System Model 1101-46-HP-XXXX is an advanced pulsed high-power quantum cascade laser system designed for optimal performance in various demanding environments. This comprehensive system includes a laser head paired with a matched power supply, ensuring seamless integration and operation at the customer's location. The standard configuration features a hermetically sealed package, which houses the quantum cascade laser and its collimating optics, making it resilient to harsh physical conditions. The laser emits mid-wave infrared (MWIR) radiation in a nearly collimated beam with a diameter of approximately 4 mm, offering precision and reliability.
For users requiring extended range, the system can be equipped with an optional external bayonet mount infrared beam expanding lens. This accessory allows for the projection of the MWIR beam over kilometer distances, enhancing its versatility for specialized applications. The bayonet mount is compatible with various lenses, providing customization options to meet specific customer needs. The laser system supports output pulses with fixed durations ranging from 50 ns to 500 ns, and frequencies from single pulses up to 1 MHz, featuring exceptionally fast pulse rise and fall times of less than 5 ns.
The Model 1101-46-HP-XXXX is available in three versions, each offering different levels of peak pulse power output: 1.0 W, 2.0 W, and 4.0 W, all at room temperature. This flexibility allows users to select the ideal model for their power requirements. The laser operates in pulsed mode with a wavelength centered around 4.6 µm, and other wavelengths up to 12 µm are available upon request. The system's nearly diffraction-limited output beam quality, coupled with its robust design, ensures consistent performance and reliability, with a measured lifetime exceeding 3,000 hours without power degradation.
The laser head's compact physical dimensions—13 cm in width, 17 cm in height, and 15 cm in depth—along with a weight of 1.9 kg, make it a practical choice for various installations, excluding the optional lens. The accompanying power supply is engineered to provide the necessary drive current, ensuring the laser operates efficiently and effectively. With its advanced features and adaptability, the Laser System Model 1101-46-HP-XXXX represents a cutting-edge solution for high-power laser applications.
High Power Pulsed Room Temperature QCL System at 4.6um
Specifications |
|
|---|---|
| Output Power (avg): | 4 W |
| Wavelength: | 4.6 um |
| Pulse Duration: | 50 – 500 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Spectral Width: | 150 nm |
| Pulse Rise/fall Time: | less than 5 ns |
| Maximum Pulse Repetition Rate: | 1 MHz |
| Ambient Operating Temperature: | < 45°C |
| Size: | 13 cm (W), 17 cm (H), 15 cm (D) |
| Weight: | 1.9 kg |
Features
- Complete System: The Model 1101-46-HP-XXXX is supplied as a complete system with a laser head and matched power supply, ready for immediate operation.
- Hermetically Sealed Package: Ensures trouble-free operation in harsh environments, with collimating optics included.
- Beam Specifications: Emits MWIR laser radiation in a ~4 mm diameter nearly collimated beam.
- Optional Beam Expansion: Available with an external bayonet mount infrared beam expanding lens for long-distance projection.
- Pulse Specifications: Output pulses with fixed duration, user-specified between 50 ns and 500 ns, and frequency from single pulses up to 1 MHz.
- Fast Pulse Rise/Fall Time: Less than 5 ns for rapid operation.
- Triggering Options: Various internal and external triggering options available for flexible operation.
Applications
- Remote Sensing: Ideal for environmental monitoring and atmospheric studies, the laser system can detect and analyze gases over long distances.
- Industrial Process Monitoring: Used for monitoring emissions and chemical processes in industrial environments, ensuring compliance and safety.
- Military and Defense Applications: Suitable for target designation, range finding, and infrared countermeasures due to its long-range capabilities.
- Scientific Research: Facilitates advanced research in fields such as spectroscopy, material analysis, and photonics.
- Medical Diagnostics: Potential use in non-invasive medical diagnostics and imaging, particularly in the mid-infrared spectrum.
- Security and Surveillance: Effective for perimeter security and surveillance applications, offering enhanced detection capabilities in various environments.
Frequently Asked Questions
The wavelength of the Model 1101-46-HP-YYYY laser system is 4.6 µm.
The peak pulse power output of the Model 1101-46-HP-1000 version is > 1.0 W in an ambient environment with the laser head at room temperature.
The pulse length range that can be specified by the customer is 50 ns to 500 ns.
Quantum Cascade Lasers (QCLs) can be used in fields such as spectroscopy, free space optical communications, and directed infrared countermeasures and other security areas.
Yes, the laser system is available (at optional extra cost) with an external bayonet mount infrared beam expanding lens for projection of the MWIR beam over kilometer distances.
