Description
Stable Output from -40°C to +85°C
Single & Stacked Devices up to 375W
Fiber Coupled Devices up to 188W
High Reliability / High Efficiency

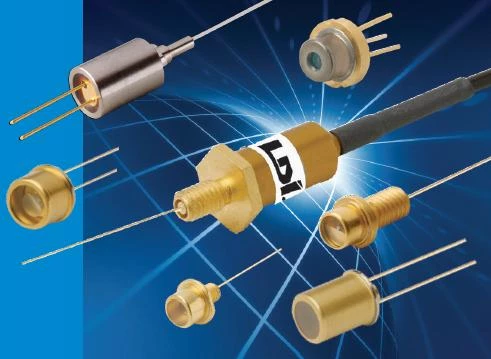

High Power Monolithic Stack Pulsed Laser Diodes
Specifications
| Output Power (avg): | 375 W |
|---|---|
| Wavelength: | 0.915 um |
| Pulse Duration: | 100 – 100 ns |
| Tuning Range Around Center Wavelength: | <= 200nm |
| Peak Wavelength: | 895 – 915 nm |
| Spectral Width: | 8 nm |
| Beam Spread: | 9 x 25 Degrees |
| Operatin G Temperature: | -40 – 85 °C |
| Threshold Current (typ): | 0.8 A |
| Peak Forward Current: | 30 A |
| Peak Power: | 60 – 375 W |
| Emitting Area: | 200 x 10 - 200 x 480 Microns |
| Fiber Core Diameter: | 200 – 600 Microns |
| Power From Fiber (typ): | 38 – 188 W |
Download Data Sheet
Features
Custom Packaging Available
Stackable
Applications
• Rangefinders
• Ceilometers
• Weapons Simulation
• Surveying Equipment
• Homeland Security
• LIDAR
• Adaptive Cruise Control
Frequently Asked Questions
What is the output power range of the High Power Monolithic Stack Pulsed Laser Diodes?
The Single & Stacked Devices have an output power range up to 375W, while the Fiber Coupled Devices have an output power range up to 188W.
What is the operating temperature range of the High Power Monolithic Stack Pulsed Laser Diodes?
The Stable Output of the laser diodes is maintained from -40°C to +85°C.
What are the applications of the High Power Monolithic Stack Pulsed Laser Diodes?
The laser diodes are used in Rangefinders, Ceilometers, Weapons Simulation, Surveying Equipment, Homeland Security, LIDAR, and Adaptive Cruise Control.
What is the warranty for the High Power Monolithic Stack Pulsed Laser Diodes?
The warranty details can be found in the product purchase agreement or by contacting the OSI Laser Diode sales representative.
What precautions should be taken while handling the High Power Monolithic Stack Pulsed Laser Diodes?
The laser diodes should be handled with extreme care to prevent electrostatic discharge. Follow ESD precautions when handling devices.
