High Duty Cycle Pulsed QCL System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description

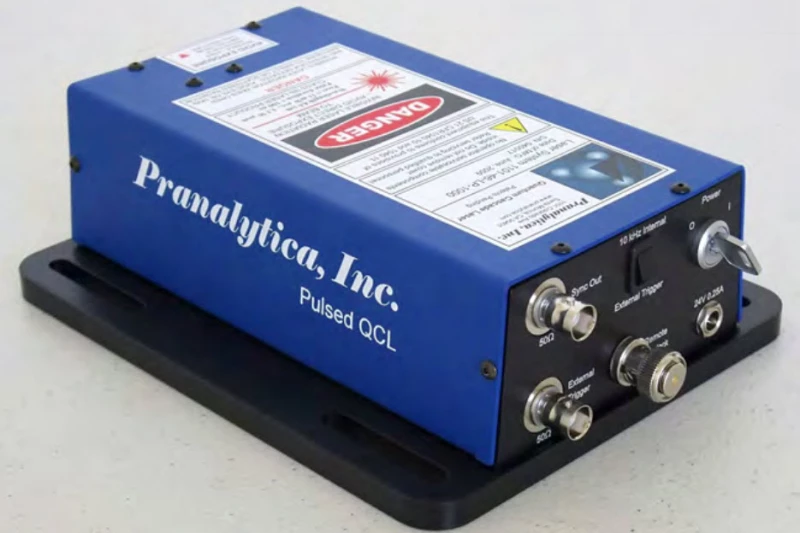

The Model 1101-XX-QCW-YYYY-TT-EXT is an advanced quantum cascade laser (QCL) system meticulously crafted for high duty cycle pulsed operation with a quasi-CW power output. This sophisticated system is tailored for bench-top applications, offering a seamless blend of precision and reliability. Enclosed within its robust design are pulse shaping and power conditioning electronics, alongside a hermetically sealed package that houses the QCL and essential optics for laser beam collimation. This ensures that the system remains stable and requires no field adjustments, maintaining its performance over extended periods in stable temperature environments.
This QCL system is engineered to deliver a fixed laser pulse width and a fixed pulse repetition frequency, which are preset at the factory according to user specifications. Additionally, it offers flexibility with an optional switch that allows selection between four different pulse widths ranging from 50 to 500 nanoseconds. This feature enhances its adaptability for various applications. Users can also benefit from the system's capability to operate with an internal trigger or a variable pulse repetition rate triggered by externally supplied TTL-level trigger pulses. A synchronization pulse is available in both modes, facilitating the integration of user electronics.
The Model 1101-XX-QCW-YYYY-TT-EXT stands out with its exceptional beam quality and nearly collimated output, achieved through an internal lens within the QCL package. The laser head is compact, measuring 8.6 inches in length, 6 inches in width, and 2.5 inches in height, and weighs just 3.5 pounds, making it easy to incorporate into various setups. The system is powered by a 24 V DC external power supply, which is included with the product.
Designed for room temperature ambient operation, this QCL system exemplifies high reliability and performance, making it an ideal choice for demanding applications. For further inquiries or to place an order, please contact Mr. Frank McGuire at Pranalytica, Inc., an ISO 9001 Certified Company, via phone at (310) 458-4493 or email fxmcguire@pranalytica.com.
High Duty Cycle Pulsed QCL System
Specifications |
|
|---|---|
| Output Power (avg): | 2.5 W |
| Wavelength: | 3.6 um |
| Pulse Duration: | 50 – 500 ns |
| Tuning Range Around Center Wavelength: | Not Applicable |
| Available Central Wavelengths: | 3.6, 3.8, 4, 4.6, 7.1, 8.3, 9.5 um |
| Rep Rate Range: | Up to 2 MHz |
Features
- High Duty Cycle Pulsed QCL System: Model 1101-XX-QCW-YYYY-TT-EXT is designed for bench top use, providing quasi-CW power output with a high duty cycle.
- Integrated Pulse Shaping and Power Conditioning: Enclosed electronics and hermetically sealed package ensure stable performance without field adjustments.
- Fixed and Variable Pulse Repetition Rates: Offers both fixed laser pulse width and repetition frequency with internal trigger, or variable rates with user-supplied TTL-level trigger pulses.
- Optional Pulse Width Selection: Switch selectable pulse widths between 50 and 500 nsec available for customized operation.
- Synchronization: Sync pulse available for synchronizing user electronics in both internal and external trigger modes.
Applications
- Infrared Countermeasures: High-power mid-IR source for defense applications.
- Gas Sensing & Spectroscopy: Precise mid-IR source for trace gas analysis and environmental monitoring.
- Scientific Research: Suitable for laboratory use in nonlinear optics, material studies, and more.
- Industrial Process Control: Mid-IR pulsed laser source for in-line sensing and material processing.
Frequently Asked Questions
It is a high duty cycle pulsed QCL system that produces quasi-CW power output and is designed for bench top use.
The applications of the Model 1101-XX-QCW-YYYY-TT-EXT quantum cascade laser system are spectroscopy and research and development (R&D).
What is the average optical power of the Model 1101-XX-QCW-YYYY-TT-EXT quantum cascade laser system?
The average optical power of the Model 1101-XX-QCW-YYYY-TT-EXT quantum cascade laser system is greater than 2.5 W (wavelength dependent).
The pulse width of the Model 1101-XX-QCW-YYYY-TT-EXT quantum cascade laser system is 50 nsec to 500 nsec (user specified and set at the factory).
The beam divergence of the Model 1101-XX-QCW-YYYY-TT-EXT quantum cascade laser system is 3 mrad vertical and 3 mrad horizontal.
