Dual Aiming Laser CVDR 46650--TO5T
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The dual aiming laser package from OSI Laser Diode, Inc. is a sophisticated assembly that integrates a 905 pulsed laser diode and a 650nm laser diode, meticulously mounted side by side on a unified platform. This innovative design ensures that the emission pattern of both laser diodes is precisely aligned along the package axis, maintaining a remarkable accuracy within +/- 0.010 inches. This alignment is crucial for applications requiring high precision and reliability.
The 905 pulsed laser diode, identified as CVD 46, operates within a peak wavelength range of 895 to 915 nm, delivering a typical peak power output of 3 watts. The compact design features an emitting width of 62 micrometers, making it ideal for applications where space is at a premium. The laser diode is engineered to operate efficiently across a wide temperature range, from -45°C to +85°C, ensuring robust performance even in demanding environments.
Complementing the 905 pulsed laser, the 650nm laser diode is tailored for rangefinding applications. It operates at a peak wavelength range of 640 to 660 nm with a power output of 5 mW. This diode is designed with an emitting width of just 5 micrometers, and like its counterpart, it supports a broad operating temperature range. Both diodes share a beam spread of 10 x 35 degrees, contributing to their versatility in various applications.
The dual laser package is RoHS compliant, reflecting OSI Laser Diode, Inc.'s commitment to environmental standards. As an ISO 9001:2008 certified company, OSI ensures that each product meets stringent quality standards, providing customers with reliable and high-performance laser solutions. Please note that while these lasers offer advanced functionalities, safety precautions, including ESD handling and avoiding direct eye exposure, are essential to prevent harm and ensure optimal operation.

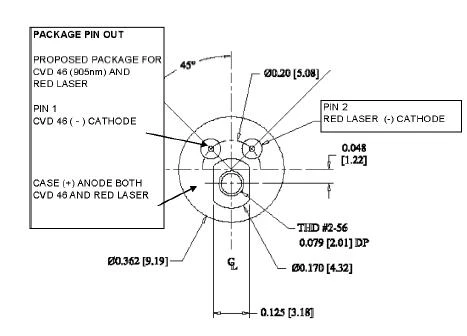

Dual Aiming Laser CVDR 46650--TO5T
Specifications |
|
|---|---|
| Output Power (avg): | 3 W |
| Wavelength: | 0.905 um |
| Pulse Duration: | 100 – 100 ns |
| Tuning Range Around Center Wavelength: | <= 200nm |
| Spectral Width FWHM: | 5 nm |
| Peak Wavelength (650 Red): | 655 nm |
| Power (650 Red): | 5 mW |
| Optical Pulse Width (650 Red): | 5 uS |
| Beam Spread: | 10 x 35 Degrees |
| Storage Temperature: | °C |
Features
- Dual-Laser Design: Integrates 905 nm pulsed and 650 nm CW laser diodes in one package
- High Peak Power IR Emission: 905 nm diode delivers up to 3 W peak optical power
- Visible Aiming Beam: 650 nm laser provides 5 mW output for alignment and visual guidance
- Tightly Aligned Emission Centers: ±0.010 in. center accuracy with 720 µm emitter spacing
- Compact TO5T Package: Ideal for integration into space-constrained rangefinding systems
- Fast Optical Performance: 1 ns rise time and 100 ns pulse width on 905 nm output
- Wide Temperature Range: Operates from -45°C to +85°C for field and industrial applications
- RoHS Compliant: Environmentally responsible design with ISO 9001:2008 certification
Applications
- Laser Rangefinders: Dual-wavelength system supports precise distance measurements with visible targeting
- Target Designators and LIDAR: Enables accurate object detection and ranging in defense or surveying tools
- Automated Optical Alignment: Supports dual-beam systems for simultaneous IR sensing and visual verification
- Industrial and Robotics Sensing: Integrated solution for robotic navigation and safety verification
- Portable Laser Systems: Compact solution for handheld or embedded OEM laser subsystems
Frequently Asked Questions
The Dual Aiming Laser CVDR 46650-TO5T is a laser package that contains a 905 pulsed laser diode and a 650nm laser diode mounted side by side on a common platform.
The Dual Aiming Laser CVDR 46650-TO5T is used for rangefinding applications.
The emission pattern of the two laser diodes in the Dual Aiming Laser CVDR 46650-TO5T will be centered on the package axis to within +/- 0.010 in.
The storage temperature range for the Dual Aiming Laser CVDR 46650-TO5T is -55 to +85 °C, and the operating temperature range is -45 to +85 °C.
Laser light emitted from any diode laser may be harmful to the human eye, so it is important to avoid looking directly into the diode laser aperture when the device is in operation. Additionally, diode lasers should be handled with extreme care to prevent electrostatic discharge.
