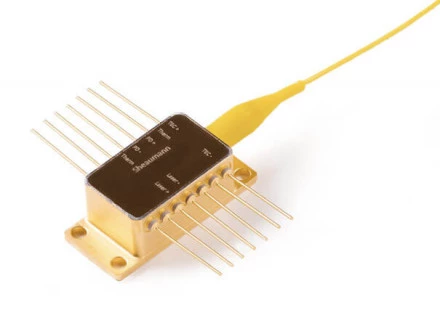

14 Pin Single-mode 830nm - 70mW Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description
Introducing a cutting-edge laser diode designed for precision and reliability, the 830nm 70mW laser diode offers exceptional performance for a variety of applications. This advanced component is equipped with an internal thermoelectric cooler (TEC), thermistor, and photodiode, ensuring optimal thermal management and precise monitoring of laser performance. The electrically isolated design enhances safety and reliability, making it a preferred choice for demanding environments.
Encased in a hermetically sealed package, this laser diode is built to withstand challenging conditions while maintaining consistent performance. The single-mode fiber and FC/APC connector provide superior beam quality and stability, ensuring efficient and precise light delivery. With a typical operating power of 70mW and a wavelength of 830nm, this laser diode is engineered for high efficiency and reliability.
Designed for continuous wave (CW) operation, this laser diode requires careful handling to prevent damage from electrostatic discharge (ESD) and excessive drive current. Users are advised to employ anti-static techniques and ensure proper heat dissipation to maintain device integrity. The product is intended as a component of an electronic system and is subject to specific compliance and export regulations.
Sheaumann offers a limited warranty on this product, reflecting our commitment to quality and customer satisfaction. Please refer to our Terms and Conditions for comprehensive warranty details. For further information or inquiries, contact our sales team. This datasheet is for general reference, and specifications may change without notice. Product availability is subject to change, so please reach out for the latest updates.
14 Pin Single-mode 830nm - 70mW Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 830 nm |
| Output Power: | 70 mW |
Features
- Integrated TEC, Thermistor & Photodiode: Provides active temperature control and power monitoring.
- Hermetically Sealed Package: Protects the device for enhanced reliability and long-term use.
- Electrically Isolated Design: Ensures safe and flexible integration into optical systems.
- Single-Mode Fiber Output: Offers stable optical coupling with high beam quality.
- FC/APC Connector: Delivers low back-reflection and consistent connectivity.
Applications
- Spectroscopy: Ideal for high-resolution optical analysis requiring stable, narrowband light.
- Medical Diagnostics: Supports advanced imaging and diagnostic systems with reliable optical output.
- Metrology: Enables precision measurements where stable laser sources are critical.
- Instrumentation: Suitable for integration into optical instruments demanding long-term stability.
- Research & Development: Perfect for laboratory use in photonics and optical component testing.
Frequently Asked Questions
The wavelength emission range of the laser module is 780-1070nm.
The butterfly module features internal TEC, thermistor, and photodiode. It is electrically isolated and hermetically sealed.
The maximum operating power of the laser module is 70mW.
To prevent device failures, it is recommended to wear an ESD wrist strap, ground all applicable work surfaces, and follow anti-static techniques when handling diode lasers.
No, the laser module is not certified in accordance with IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11.
