14 Pin Single-mode 785nm - 70mW Butterfly Module
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
Sheaumann Laser, Inc. -
On FindLight:
since 2022
Description

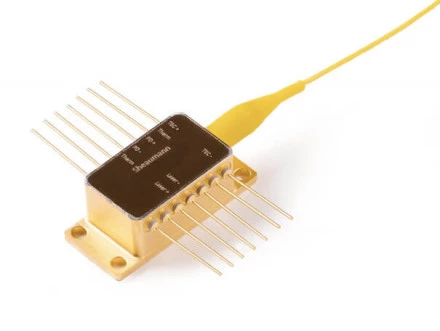

Introducing the 785nm 70mW Single-Mode Laser Diode, a high-performance component designed for precision and reliability. This laser diode is equipped with an internal thermoelectric cooler (TEC), thermistor, and photodiode, ensuring optimal performance and stability. Its electrically isolated and hermetically sealed package provides robust protection against environmental factors, making it ideal for demanding applications.
The laser diode features a single-mode fiber with an FC/APC connector, facilitating seamless integration into existing systems. With a typical operating power of 70mW and a wavelength of 785nm, this component is engineered to deliver consistent and precise output. The device operates efficiently with a typical operating current of 130mA and a voltage of 2.1V, ensuring energy-efficient performance.
Designed for continuous wave (CW) operation, this laser diode is built to withstand a range of temperatures, with a case temperature operating range from -20ºC to 50ºC. The storage temperature range extends from -40ºC to 85ºC, providing flexibility in various environments. The inclusion of a thermistor with a resistance of 10 kΩ and a B constant of 3900 K further enhances temperature management, ensuring long-term reliability.
Safety and Handling Considerations: It is crucial to handle this laser diode with care to prevent damage and ensure safety. Avoid direct exposure to the laser light, as it may be harmful to the eyes. Implementing proper electrostatic discharge (ESD) precautions, such as wearing an ESD wrist strap and grounding work surface, is essential to prevent device failure. Adhering to the specified operating limits and ensuring adequate cooling will help maintain the diode's performance and longevity.
Compliance and Warranty: This product is intended as a component of an electronic system and is not certified under IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11. It is subject to Export Administration Regulations (EAR) and requires appropriate documentation for sales. Sheaumann offers a limited warranty on this laser diode, and users are encouraged to review the Terms and Conditions for comprehensive warranty details.
14 Pin Single-mode 785nm - 70mW Butterfly Module
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Single Mode |
| Wavelength: | 785 nm |
| Output Power: | 70 mW |
Features
- High Output Power: Up to 70mW at 785nm for demanding optical applications.
- Integrated Thermal Management: Built-in TEC, thermistor, and photodiode for stability.
- Hermetically Sealed Package: Ensures long-term reliability and protection.
- Single-Mode Fiber Output: With FC/APC connector for low-loss coupling.
- Electrically Isolated: Safe and stable integration into optical systems.
Applications
- Biomedical Instrumentation: Ideal for fluorescence excitation, imaging, and diagnostics.
- Spectroscopy: Provides stable near-infrared light for precise spectral analysis.
- Interferometry: Supports high-resolution measurements and optical testing.
- Precision Metrology: Ensures accurate and reliable measurements in advanced systems.
- Optical Communications: Useful in short-reach or specialized optical transmission setups.
Frequently Asked Questions
The wavelength emission range of the laser module is 780-1070nm.
The butterfly module features internal TEC, thermistor, and photodiode. It is electrically isolated and hermetically sealed.
The maximum operating power of the laser module is 70mW.
The laser module must be passively or actively cooled in accordance with the provided specifications to prevent device failure.
No, these laser modules are not certified in accordance with IEC 60825-1 or 21 CFR 1040.10/21 CFR 1040.11.
