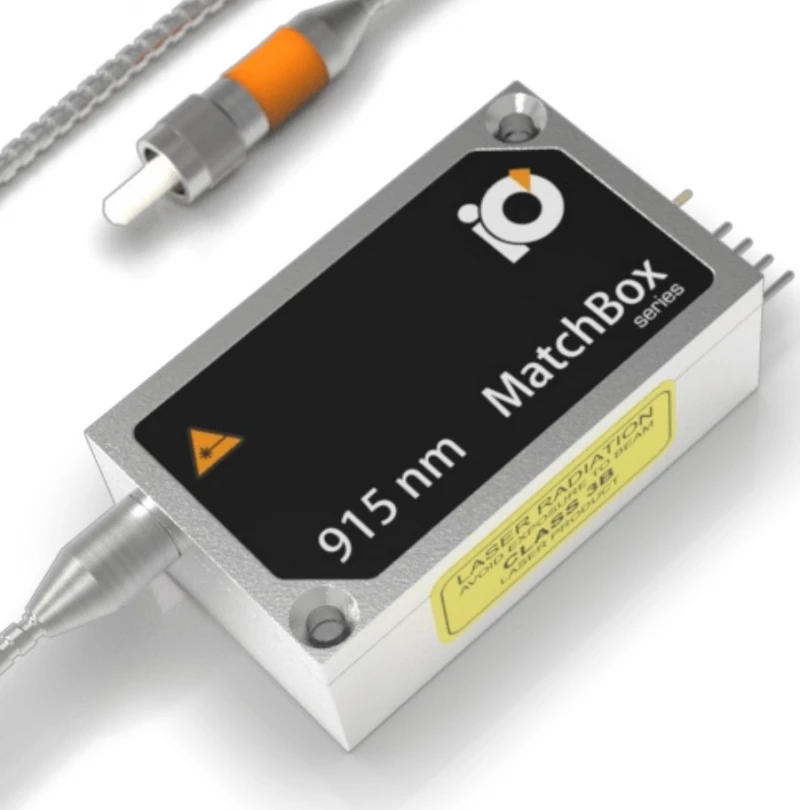

Thumbnail of 0915L-14A-NI-ST-NF: Laser Diode Module | Single Mode | 915nm | 140mW photo 1

Description

The 915L-1XA Laser Diode Module is a high-performance laser designed for various applications. It offers an ultra-compact all-in-one design with thermally stabilized optics, ensuring reliable and maintenance-free operation.

With multiple fiber coupled options and automatic power control, this laser module provides versatility and ease of use. It operates on a 5VDC input voltage and is suitable for integration into systems requiring a 915nm laser source.

0915L-14A-NI-ST-NF: Laser Diode Module | Single Mode | 915nm | 140mW

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Single Mode
Wavelength: 915 nm
Output Power: 140 mW
Fiber Length: 1 m
Laser Safety Class: 3B
Max. Power Consumption: 2 W
Storage Temperature: -10 to +50 °C
Overheat Protection: Yes
Temperature Stabilization: Internal TEC
Warm Up Time: 0.5 min
Optimum Heatsink Temperature: 20 °C
Longitudinal Modes: Multiple
External Power Supply Requirement: +5 V DC, 1.5 A
Input Voltage: 5 VDC
Transversal Modes: Multiple
Intensity Noise: 0.25 %
Power Stability: 0.05 %
Spectral Line Width FWHM: 0.5 nm
Net Weight: 0.12 kg
Dimensions: 50 x 30 x 18 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 915nm wavelength
  • Multiple fiber coupled options
  • Ultra-compact all-in-one design
  • Thermally stabilized optics
  • Monolithic design
  • Hermetically sealed
  • Automatic power control
  • 5VDC input voltage

Applications

  • Life science applications
  • Commercial flow cytometers
  • Integration into handheld devices
  • Raman spectroscopy
  • Confocal microscopy
  • Doppler LIDAR

Frequently Asked Questions

What is the wavelength of the 0915L-14A-NI-ST-NF laser diode module?
The wavelength of the 0915L-14A-NI-ST-NF laser diode module is 915nm.
What is the output power of the 0915L-14A-NI-ST-NF laser diode module?
The output power of the 0915L-14A-NI-ST-NF laser diode module is 140mW.
What is the warranty period for the 0915L-14A-NI-ST-NF laser diode module?
The warranty period for the 0915L-14A-NI-ST-NF laser diode module is 12 months.
What are the fiber coupling options for the 0915L-14A-NI-ST-NF laser diode module?
The 0915L-14A-NI-ST-NF laser diode module has multimode fiber coupling options.
What are some of the applications for the 0915L-14A-NI-ST-NF laser diode module?
The 0915L-14A-NI-ST-NF laser diode module can be used in applications such as laser diffraction particle analysis, confocal microscopy, food sorting, and flow cytometry.
