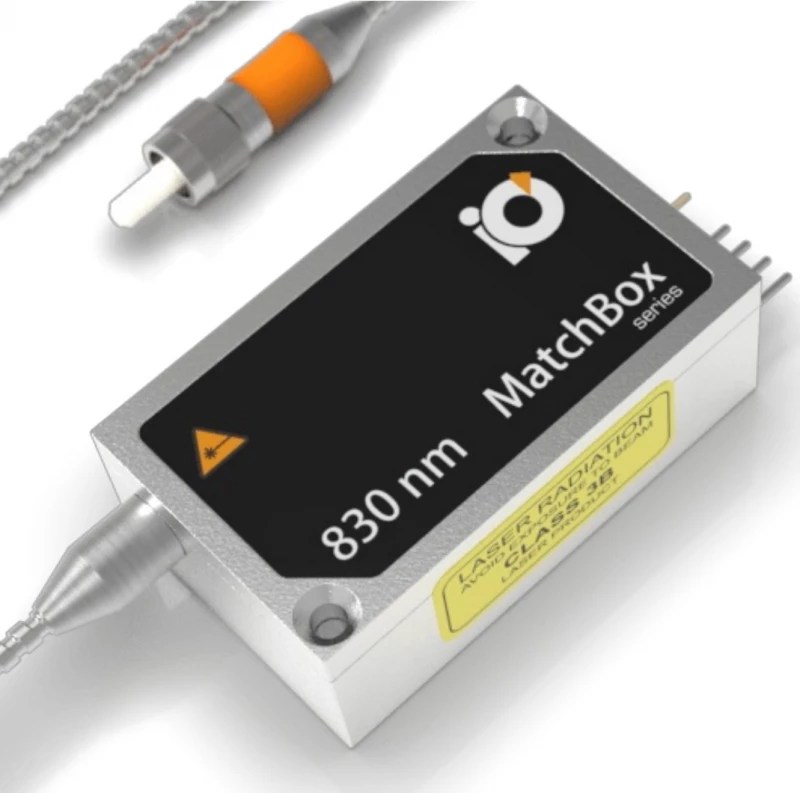

0830L-14A-NI-PT-NF: Laser Diode Module (Single Mode | 830nm | 90mW)

Name: 0830L-14A-NI-PT-NF: Laser Diode Module (Single Mode | 830nm | 90mW)
Brand: RPMC Lasers, Inc.
Availability: InStock

Description

The 830L-1XA Laser Diode Module is a high-performance laser system offered by RPMC Lasers Inc. It belongs to the Matchbox series, known for its excellent performance and reliability. This laser module operates at a wavelength of 830nm and is designed for integration into various systems.

With its ultra-compact, all-in-one design and thermally stabilized optics, it provides reliable and maintenance-free operation. The module offers multiple fiber-coupled options and is hermetically sealed, ensuring optimal performance. It features automatic power control and operates on a 5VDC input voltage.

Specifications

Laser Type:	Continuous Wave (CW), Modulated
Fiber Type:	Single Mode
Wavelength:	830 nm
Output Power:	90 mW
Fiber Length:	1 m
Max. Power Consumption:	2 W
Net Weight:	0.12 kg
Storage Temperature:	-10 to +50 °C
Overheat Protection:	Yes
Temperature Stabilization:	Internal TEC
Warm Up Time:	0.5 min
Optimum Heatsink Temperature:	20 °C
Spectral Line Width FWHM:	0.5 nm
Longitudinal Modes:	Multiple
Transversal Modes:	Multiple
External Power Supply Requirement:	+5 V DC, 1.5 A
Intensity Noise:	0.25 %
Power Stability:	0.1 %
Input Voltage:	5 VDC
Laser Safety Class:	3B
Dimensions:	50 x 30 x 18 mm

Download Data Sheet

Features

Wavelength: 830nm
Multiple Fiber Coupled Options
Ultra-compact All-in-one Design
Thermally stabilized optics
Monolithic Design
Hermetically Sealed
Automatic Power Control
5VDC Input Voltage

Applications

OEM integration
Life Science applications
Flow cytometers
Laser source for commercial applications
Portable and handheld devices

Name

Work Email

Organization (recommended)

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

RPMC Lasers, Inc.

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the output power of the 0830L-14A-NI-PT-NF laser diode module?

The output power of the 0830L-14A-NI-PT-NF laser diode module is 90mW.

What is the warranty period for the Matchbox series modules?

The Matchbox series modules have a 12-month warranty.

What are the fiber coupling options for the laser diode module?

The fiber coupling options for the laser diode module include multimode fiber with an FC/PC connector.

What is the voltage requirement for the laser diode module?

The laser diode module requires a 5V power supply, which is up-converted internally to make it suitable for various laser diodes.

What are some applications for the 0830L-14A-NI-PT-NF laser diode module?

Some applications for the 0830L-14A-NI-PT-NF laser diode module include laser diffraction particle analysis, confocal microscopy, food sorting, and flow cytometry.
