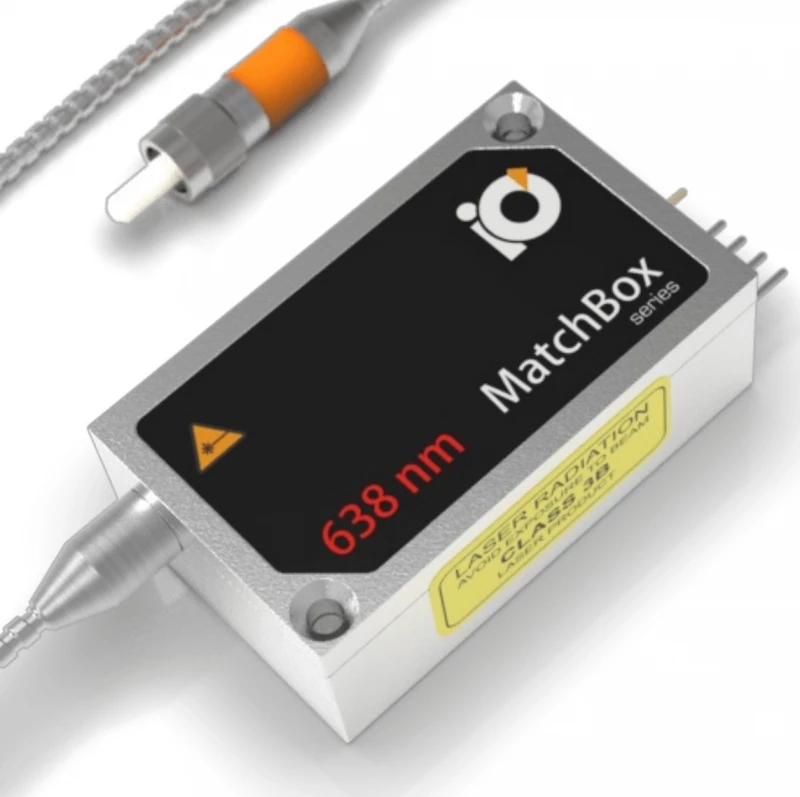

Thumbnail of 0638L-14A-NI-AT-NF: Laser Diode Module (Single Mode | 638nm | 120mW) photo 1

Description

The 638L-1XA Laser Diode Module is an ultra-compact, all-in-one laser head designed for reliable and maintenance-free operation. It operates at a wavelength of 638nm and offers multiple fiber-coupled options. With its thermally stabilized optics and hermetically sealed housing, this laser module ensures excellent performance and beam quality.

It features automatic power control and operates on a 5VDC input voltage. The 638L-1XA is suitable for integration into various systems and applications.

0638L-14A-NI-AT-NF: Laser Diode Module (Single Mode | 638nm | 120mW)

Visit the RPMC Lasers, Inc. Store

Specifications

Laser Type: Continuous Wave (CW), Modulated
Fiber Type: Single Mode
Wavelength: 638 nm
Output Power: 120 mW
Longitudinal Modes: Multiple
Spectral Line Width FWHM: 0.7 %
Power Stability: 0.05 %
Intensity Noise: 0.25 %
Transversal Modes: Multiple
Modulation Bandwidth: 10 MHz
Input Voltage: 5 VDC
External Power Supply Requiremen: +5 V DC, 1.5 A
Dimensions: 50 x 30 x 18 mm
Fiber Length: 1 m
Optimum Heatsink Temperature: 20 °C
Warm Up Time: 0.5 min
Temperature Stabilization: Internal TEC
Overheat Protection: Yes
Storage Temperature: -10 to +50 ℃
Net Weight: 0.12 kg
Max. Power Consumption: 2 W
Laser Safety Class: 3B

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 638nm laser diode module
  • Ultra-compact all-in-one design
  • Multiple fiber-coupled options
  • Thermally stabilized optics
  • Monolithic design
  • Hermetically sealed housing
  • Automatic power control
  • 5VDC input voltage

Applications

  • Commercial flow cytometers
  • Life Science applications
  • Integration into systems requiring accurate laser performance
  • Portable and handheld devices
  • Confocal microscopy
  • Doppler LIDAR
  • Optical surface flatness testing
  • Raman spectroscopy

Frequently Asked Questions

What is the wavelength of this laser diode module?
The wavelength of the laser diode module is 638nm.
What is the output power of this laser diode module?
The output power of the laser diode module is 120mW.
What are the fiber coupling options for this laser diode module?
The fiber coupling options for this laser diode module include multimode fiber with an FC/APC connector.
What is the warranty period for the Matchbox series laser diode modules?
The warranty period for the Matchbox series laser diode modules is 12 months.
What are some of the applications of this laser diode module?
Some of the applications of this laser diode module include laser diffraction particle analysis, confocal microscopy, food sorting, and flow cytometry.

Got more questions? Use the inquiry form to ask the supplier directly.
