Description
The 520L-1XA Laser Diode Module is a compact and versatile laser source that operates at a wavelength of 520nm. It offers excellent performance and reliability in an ultra-compact, all-in-one design.
The module is thermally stabilized and hermetically sealed, ensuring reliable and maintenance-free operation. With multiple fiber-coupled options, this laser diode module is customizable to meet your specific needs.

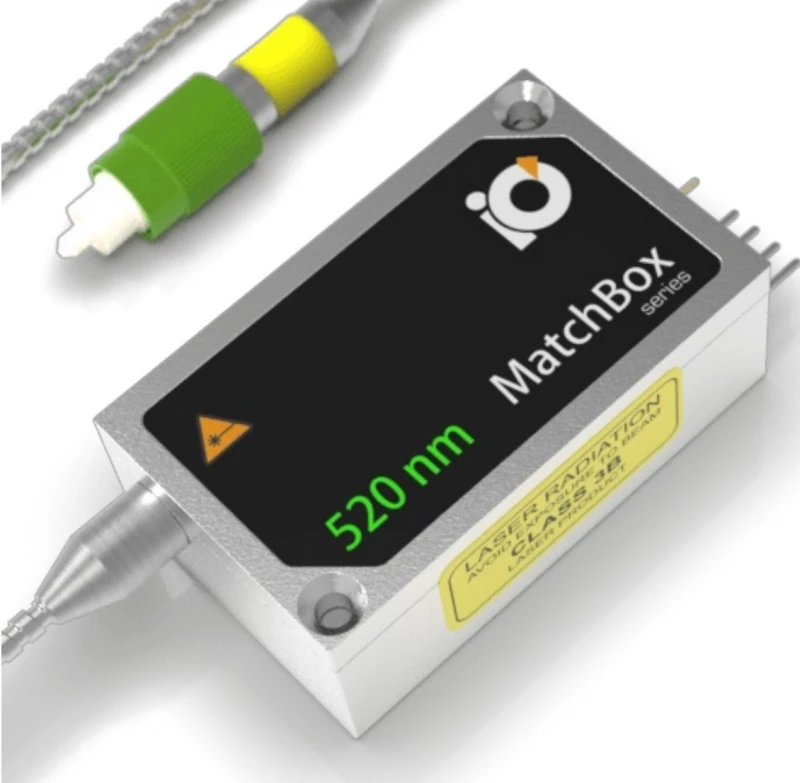

0520L-13A-NI-ST-NF Laser Diode Module (Single Mode | 520nm | 50mW)
Specifications
| Laser Type: | Continuous Wave (CW), Modulated |
|---|---|
| Fiber Type: | Single Mode |
| Wavelength: | 520 nm |
| Output Power: | 50 mW |
| Fiber Core Diamater: | Not Specified |
| Fiber Cladding Diameter: | Not Specified |
| Connector Options: | FC/APC, FC/PC, SMA |
| Spectral Line Width FWHM: | 1 nm |
| Longitudinal Modes: | Multiple |
| Longitudinal Modes: | 0.2 % |
| Intensity Noise: | 0.5 % |
| Transversal Modes: | TEM00 |
| M Effective: | 1.05 |
| Input Voltage: | 5 VDC |
| External Power Supply Requiremen: | +5 V DC, 1.5 A |
| Optimum Heatsink Temperature: | 20 °C |
| Warm Up Time: | 0.5 min |
| Temperature Stabilization: | Internal TEC |
| Overheat Protection: | Yes |
| Net Weight: | 0.12 kg |
| Max. Power Consumption: | 2 W |
| Laser Safety Class: | 3B |
| Dimensions: | 50 x 30 x 18 mm |
Download Data Sheet
Features
- Wavelength: 520nm
- Ultra-compact all-in-one design
- Thermally stabilized optics
- Monolithic design
- Hermetically sealed
- Automatic Power Control
- 5VDC Input Voltage
Applications
- Life science applications
- Flow cytometry
- Raman spectroscopy
- Confocal microscopy
- Doppler LIDAR
- Optical surface flatness testing
Frequently Asked Questions
What is the wavelength of the laser diode module?
The wavelength of the laser diode module is 520nm.
What is the output power of the laser diode module?
The output power of the laser diode module is 50mW.
What type of fiber coupling options are available for the laser diode module?
The laser diode module has single mode fiber w/ SMA connector.
What is the warranty period for the laser diode module?
The laser diode module comes with a 12-month warranty.
What are the applications of the laser diode module?
The laser diode module can be used in Laser Diffraction Particle Analysis, Confocal Microscopy, Food Sorting, and Flow Cytometry.
