Description

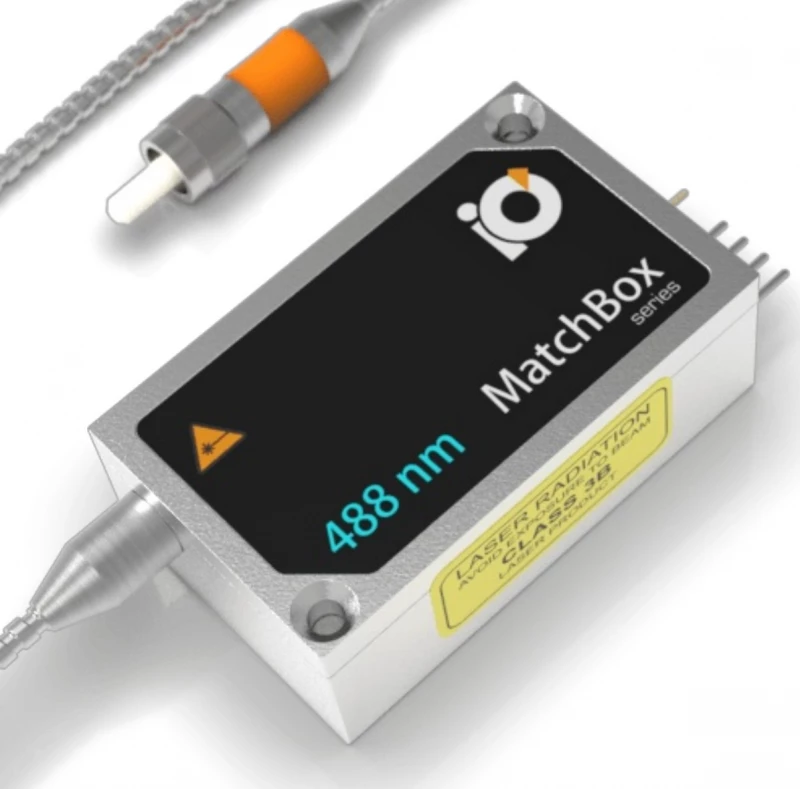

The 488L-1XA Laser Diode Module from RPMC Lasers Inc is an ultra-compact, all-in-one fiber-coupled diode laser head designed for various applications. It operates at a wavelength of 488nm and offers excellent performance and reliability.
With its thermally stabilized optics and hermetically sealed housing, this fiber-pigtailed diode laser module ensures maintenance-free operation and reliable laser performance. The module features an automatic power control and can be powered with a 5VDC input voltage. It is available in multiple configurations, including fiber-coupled options, to suit different application requirements.
0488L-14A-NI-ST-NF Laser Diode Module Single Mode 488nm 30mW
Specifications
| Laser Type: | Continuous Wave (CW), Modulated |
|---|---|
| Fiber Type: | Single Mode |
| Wavelength: | 488 nm |
| Output Power: | 30 mW |
| Fiber Length: | 1 m |
| Input Voltage: | 5 VDC |
| Optics Stabilization: | Thermally Stabilized |
| Spectral Line Width FWHM: | 1 nm |
| Longitudinal Modes: | Multiple |
| Intensity Noise: | 0.25 % |
| Power Stability: | 0.2 % |
| Transversal Modes: | Multiple |
| Modulation Bandwidth: | 10 MHz |
| External Power Supply Requirement: | +5 V DC, 1.5 A |
| Fiber Coupled Options: | Multiple options available |
| Dimensions: | 50 x 30 x 18 mm |
| Optimum Heatsink Temperature: | 20 °C |
| Warm Up Time: | 0.5 min |
| Optimum Heatsink Temperature: | 20 °C |
| Temperature Stabilization: | Internal TEC |
| Overheat Protection: | Yes |
| Storage Temperature, °C: | -10 to +50 °C |
| Net Weight: | 0.12 kg |
| Max. Power Consumption: | 2 W |
| Laser Safety Class: | 3B |
Download Data Sheet
Features
- Compact and integrated laser head design
- Stabilized optics for reliable performance
- Maintenance-free operation
- Multiple fiber-coupled options available
- Automatic power control for optimized output
- Suitable for various applications
Applications
- Life Science research
- Flow cytometry
- Commercial flow cytometers
- Laser integration into systems
- Raman spectroscopy
- Optical surface flatness testing
- Confocal microscopy
- Doppler LIDAR
Frequently Asked Questions
What is the wavelength of the fiber-coupled laser diode module?
The wavelength of the laser diode module is 488nm.
What is the output power of the laser diode module?
The output power of the laser diode module is up to 40mW.
What is the warranty period for the Matchbox series modules?
The warranty period for the Matchbox series modules is 12 months.
What are the output options for the laser modules?
The output options for the laser modules include free-space, fiber-coupled, or an SMA port.
What are the applications of the laser diode module?
The applications of the laser diode module include Laser Diffraction Particle Analysis, Confocal Microscopy, Food Sorting, and Flow Cytometry.
