Description
The 450 nm Laser Diode Module from Integrated Optics, UAB, is a sophisticated solution designed for precision-demanding applications such as flow cytometry, fluorescence, and biomedical research. This laser module is distinguished by its compact design, ensuring it occupies minimal space while delivering stable power output. Its low power consumption further enhances its appeal, making it an efficient choice for various scientific and industrial applications.
A standout feature of this laser module is its single-mode fiber, which ensures exceptional beam quality and focusability. This makes it particularly suitable for high-resolution fluorescence imaging, where precision and clarity are paramount. The module is typically equipped with an FC/PC connector, although other fiber terminations can be accommodated upon request, providing flexibility to meet specific user requirements.
The laser's optical power is adjustable, allowing users to fine-tune it from nearly 0% to 100%. However, it's important to note that certain specifications, such as central wavelength, power stability, and beam quality, are optimized at factory preset power levels. At very low power settings, users might experience reduced power stability, which is a consideration for applications requiring consistent output.
Integrated Optics ensures that each laser module undergoes rigorous testing to maintain performance standards. Long-term power tests are conducted under controlled conditions, with the laser body temperature held constant to within +/-0.1 °C. This meticulous testing process ensures that the laser module delivers reliable performance over extended periods, making it a dependable choice for demanding environments.

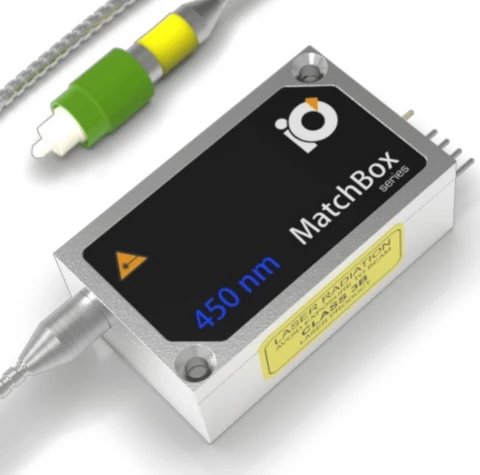

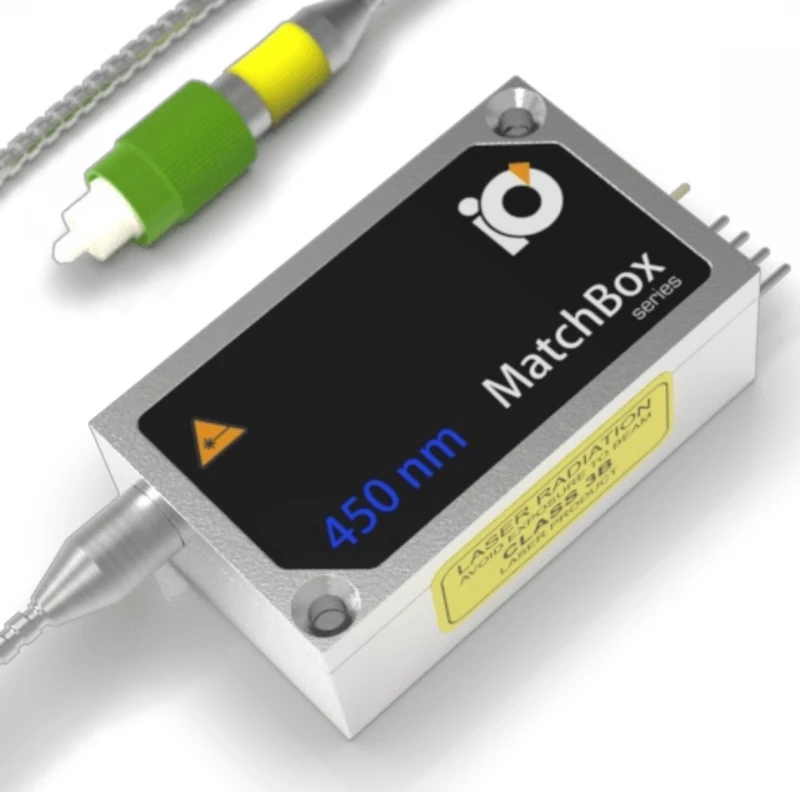

0450L-13A-NI-PT-NF Laser Diode Module Single Mode 445nm 35mW
Specifications
Laser Type: | Continuous Wave (CW), Modulated |
---|---|
Fiber Type: | Single Mode |
Wavelength: | 450 nm |
Output Power: | 35 mW |
Fiber Length: | 1 mm |
Input Current: | 1.5 A |
Max. Power Consumption: | 2 W |
Laser Safety Class: | 3B |
Net Weight: | 0.2 kg |
Storage Temperature: | -10 to +50 °C |
Overheat Protection: | Yes |
Temperature Stabilization: | Internal TEC |
Warm Up Time: | 1 min |
Optimum Heatsink Temperature: | 20 °C |
Modulation Bandwidth: | 10 MHz |
Fiber Connector: | FC/APC, FC/PC, SMA |
M Effective: | 10.5 |
Transversal Modes: | TEM00 |
Intensity Noise: | 0.25 % |
Power Stability: | 0.1 % |
Spectral Line Width FWHM: | 0.8 nm |
Beam Divergence: | < 0.6 mrad |
Beam Diameter: | < 1.5 mm |
Operating Temperature: | +15 to +35 ℃ |
Input Voltage: | 5 VDC |
Dimensions: | 50 x 30 x 18 mm |
Features
- Wavelength: 450nm
- Multiple Fiber Coupled Options
- Ultra-compact All-in-one Design
- Thermally Stabilized Optics
- Monolithic Design
- Hermetically Sealed
- Automatic Power Control
- 5VDC Input Voltage
Applications
- Flow Cytometry
- Raman Spectroscopy
- Confocal Microscopy
- Doppler LIDAR
- Optical Surface Flatness Testing
- Life Science Research
- Holography
- Interferometry
- Spectroscopy
Frequently Asked Questions
What is the wavelength of this fiber-coupled laser diode module?
What is the output power of the laser diode module?
What is the warranty period for the Matchbox series modules?
What are the applications of the 445 nm laser diode module?
What is the control interface type for the laser diode module?
