Description

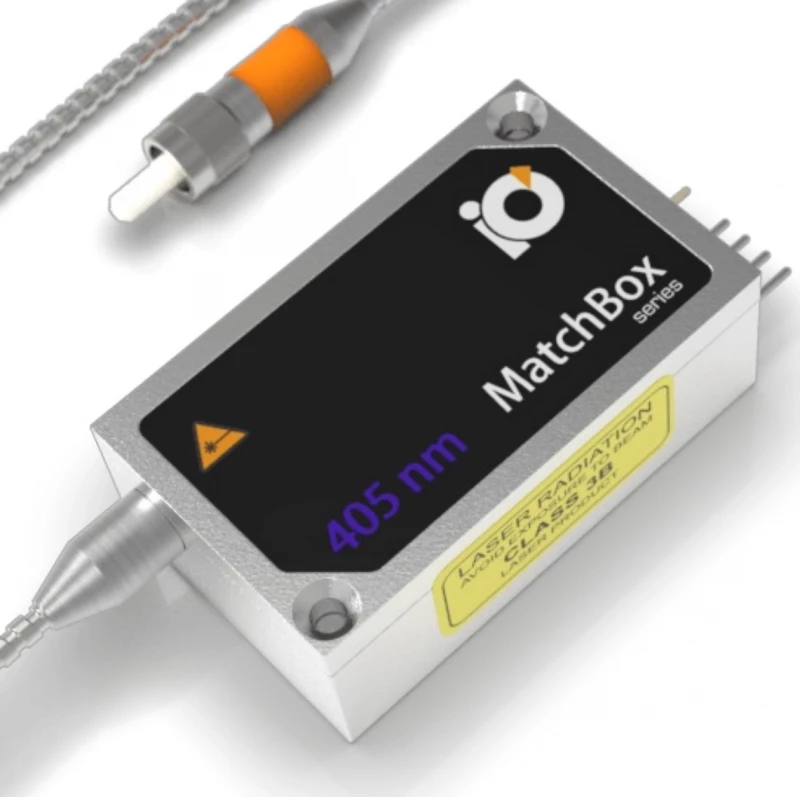

The 405L-1XA Laser Diode Module is a compact and versatile laser system from RPMC Lasers Inc. It offers excellent performance and reliability in an ultra-compact, all-in-one design. The module operates at a wavelength of 405nm and is available in multiple fiber-coupled options.
With thermally stabilized optics and a hermetically sealed housing, it ensures reliable and maintenance-free operation. The laser module features automatic power control and operates on a 5VDC input voltage.
405L-14A-NI-ST-NF: Laser Diode Module (Single Mode | 405nm | 150mW)
Specifications
| Laser Type: | Continuous Wave (CW), Modulated |
|---|---|
| Fiber Type: | Single Mode |
| Wavelength: | 405 nm |
| Output Power: | 150 mW |
| Optimum Heatsink Temperature: | 20 °C |
| Power Stability: | 0.2 % |
| Intensity Noise: | 0.25 % |
| Longitudinal Modes: | Multiple |
| Transversal Modes: | Multiple |
| Fiber Length: | 1 m |
| Input Voltage: | 5 VDC |
| Input Current: | 1.5 A |
| Spectral Line Width FWHM: | 0.5 nm |
| Max. Power Consumption: | 2 W |
| Warm Up Time: | 0.5 min |
| Overheat Protection: | Yes |
| Temperature Stabilization: | Internal TEC |
| Storage Temperature: | -10 to +50 °C |
| Dimensions: | 50 x 30 x 18 mm |
| Net Weight: | 0.120 kg |
| Laser Safety Class: | 3B |
Download Data Sheet
Features
- 405nm laser diode module
- Ultra-compact all-in-one design
- Multiple fiber-coupled options
- Thermally stabilized optics
- Hermetically sealed housing
- Automatic power control
- 5VDC input voltage
Applications
- Life science applications
- Commercial flow cytometers
- OEM integration
- Research and development
- Industrial applications
Frequently Asked Questions
What is the wavelength of the laser diode module?
The wavelength of the laser diode module is 405nm.
What is the output power of the laser diode module?
The output power of the laser diode module is 150mW.
What is the warranty period for the Matchbox series modules?
The warranty period for the Matchbox series modules is 12 months.
What are the fiber coupling options for the laser diode module?
The laser diode module has fiber coupling options.
What is the control interface type for the laser diode module?
The control interface type for the laser diode module is UART/USB.
