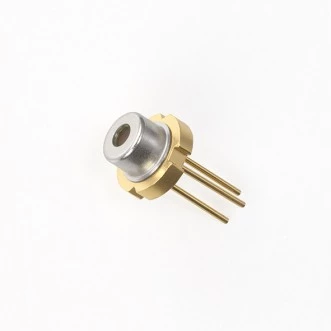

USHIO HL63520HD 638nm 2400mW Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The HL63520HD is a cutting-edge AlGaInP laser diode designed to deliver exceptional performance in a compact form factor. This laser diode operates at a shorter wavelength of 638nm, making it ideal for applications requiring precise and vibrant red light. With its dual emitter design, the HL63520HD ensures robust optical output power, providing 2.4W in continuous wave (CW) mode and an impressive 3.5W in pulse mode.
This high-power capability is complemented by a high wall plug efficiency of 43%, ensuring energy-efficient operation. Encased in a high heat dissipation 9mm CAN package, the HL63520HD is engineered for optimal thermal management. This design feature is crucial for maintaining performance and longevity, as it effectively dissipates heat generated during operation. The laser diode's multi transverse mode and TM mode oscillation further enhance its versatility, making it suitable for a wide range of optical applications.
The HL63520HD is a reliable choice for professionals seeking a powerful and efficient laser diode. Its robust construction and advanced features make it an excellent component for laser projectors, laser TVs, and other optical equipment. With its combination of high output power, efficiency, and thermal management, the HL63520HD stands out as a premier option in the field of laser diodes.
USHIO HL63520HD 638nm 2400mW Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.638 um |
| Output Power: | 2400 mW |
| Pulse Optical Output Power: | 3.5 W |
| Wavelength: | 638 nm |
| LD Reverse Voltage: | 2 V |
| Operating Temperature Range: | -10 ~ +55 °C |
| Storage Temperature Range: | -40 ~ +85 °C |
| Threshold Current: | 570 ~ 750 mA |
| Operating Voltage: | 2.4 ~ 2.8 V |
| Beam Divergence Parallel To The Junction: | 3 ~ 20 ° |
| Beam Divergence Perpendicular To The Junction: | 23 ~ 43 ° |
| Lasing Wavelength: | 632 ~ 644 nm |
Features
- Dual Emitters: The HL63520HD features dual emitters for enhanced performance and reliability.
- High Optical Output Power: Achieves 2.4W in continuous wave (CW) mode and 3.5W in pulse mode, providing powerful laser output.
- Shorter Wavelength: Operates at a wavelength of 638nm, ideal for applications requiring precise and vibrant red light.
- High Wall Plug Efficiency: Offers a high efficiency of 43%, ensuring energy-efficient operation.
- Efficient Heat Dissipation: Comes in a high heat dissipation φ9mm CAN package, maintaining optimal performance and longevity.
- Multi Transverse Mode: Supports multiple transverse modes for versatile application use.
- TM Mode Oscillation: Features TM mode oscillation for stable and reliable laser operation.
Applications
- Laser Projectors: Produces vivid red output for high-brightness projection systems.
- Laser TVs: Ensures rich, vibrant red color reproduction.
- Optical Equipment Light Source: Suitable for laboratory and industrial optical tools.
- High-Power Illumination Systems: Delivers intense red beams for specialized lighting applications.
Frequently Asked Questions
The USHIO HL63520HD laser diode can be used in laser projectors, laser TVs, and as a light source for optical equipment.
The maximum optical output power of the USHIO HL63520HD laser diode is 2.4W (CW) and 3.5W (Pulse).
The operating temperature range of the USHIO HL63520HD laser diode is -10°C to +55°C.
The USHIO HL63520HD laser diode comes in a 9mm CAN package.
The wavelength of the USHIO HL63520HD laser diode is 638nm.
