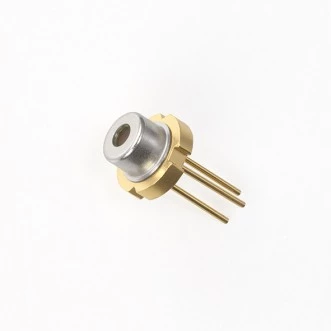

USHIO HL63290HD 638nm 2200mW Laser Diode
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2020
Description
The HL63290HD is a high-performance AlGaInP laser diode designed to deliver exceptional optical output power and reliability. With a typical wavelength of 638nm, this laser diode is engineered to meet the demanding requirements of various optical applications. Its robust construction ensures high heat dissipation, thanks to the φ9mm CAN package, which is essential for maintaining optimal performance and longevity.
One of the standout features of the HL63290HD is its ability to operate in both continuous wave (CW) and pulse modes, providing flexibility for different operational needs. In CW mode, it delivers an impressive optical output power of 2.2W, while in pulse mode, it can achieve up to 2.5W. This versatility makes it an ideal choice for applications requiring precise and powerful laser output.
The HL63290HD is designed with multi transverse mode and TM mode oscillation, ensuring stable and efficient laser operation. Its construction and design are optimized to handle high current densities, which is crucial for maintaining performance under various operating conditions. To ensure the laser diode operates within safe temperature limits, adequate heat dissipation measures are recommended, allowing the device to function effectively across a wide range of temperatures.
USHIO HL63290HD 638nm 2200mW Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.638 um |
| Output Power: | 2200 mW |
| Optical Output Power (Pulse): | 2.5 W |
| Operating Current: | 2.4 A |
| Pulse Operating Current: | 2.5 A |
| Operating Temperature: | -10 ~ +55 °C |
| Storage Temperature: | -40 ~ +85 °C |
| Threshold Current: | 600 ~ 750 mA |
| Operating Voltage: | 2.4 ~ 2.8 V |
| Beam Divergence (Parallel): | 3 ~ 20 ° |
| Beam Divergence (Perpendicular): | 23 ~ 43 ° |
| Lasing Wavelength: | 632 ~ 642 nm |
Features
- High Optical Output Power: Achieve up to 2.2W in continuous wave (CW) mode and 2.5W in pulse mode, providing robust performance for demanding applications.
- Shorter Wavelength: Typical wavelength of 638nm, ideal for precision optical applications.
- Efficient Heat Dissipation: Features a high heat dissipation φ9mm CAN package, ensuring reliable operation and longevity.
- Multi Transverse Mode: Supports multiple transverse modes, enhancing versatility in various optical setups.
- TM Mode Oscillation: Designed for TM mode oscillation, optimizing laser performance.
Applications
- Laser Projectors: Provides vivid red light for high-brightness projection.
- High-Brightness Displays: Enhances visual clarity in large-scale display systems.
- Optical Equipment Light Source: Suitable for laboratory and industrial optical systems.
- Precision Illumination Systems: Ideal for applications requiring intense, stable red beams.
Frequently Asked Questions
The absolute maximum ratings for the USHIO HL63290HD laser diode include an operating current of 2.4A, a pulse operating current of 2.5A, an LD reverse voltage of 2V, an operating temperature of -10 ~ +55°C, and a storage temperature of -40 ~ +85°C.
The applications of the USHIO HL63290HD laser diode include laser projectors and light sources for optical equipment.
The optical output power of the USHIO HL63290HD laser diode is 2.2W (CW) and 2.5W (Pulse).
The package size of the USHIO HL63290HD laser diode is φ9mm CAN package.
The wavelength of the USHIO HL63290HD laser diode is 638nm Typ.
