Description
LDX Optronics’ 780–830 nm Laser Diodes are engineered for high performance in both fiber-coupled and free-space applications. Offering exceptional output power, narrow spectral width, and reliable thermal stability, these diodes are ideal for a wide range of demanding optical systems. They feature carefully designed emitter sizes to ensure optimal coupling efficiency with minimal loss, whether for medical, industrial, or communication uses.

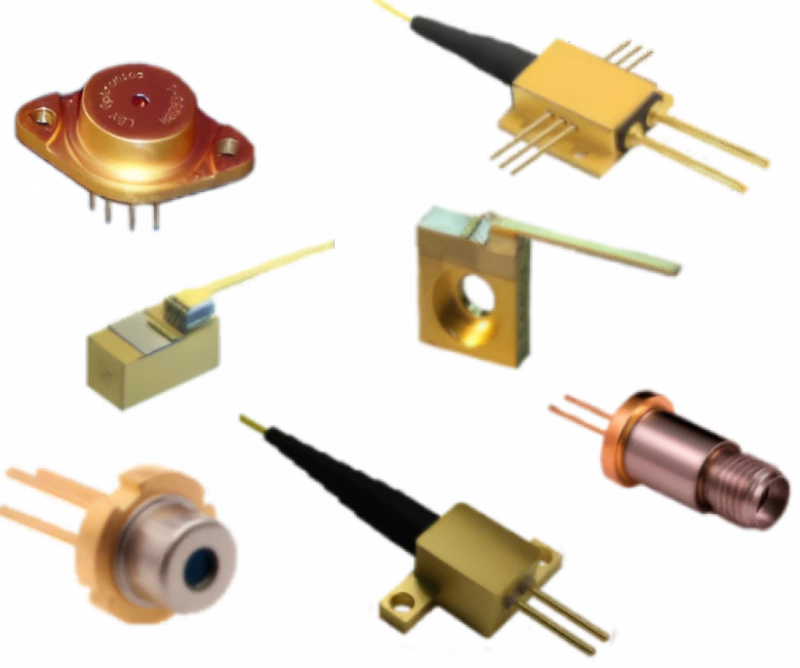

These laser diodes operate with low threshold currents and deliver stable output across broad temperature ranges, enhancing system energy efficiency and reliability. Available in HHL, BTF, and 9 mm SMA package options, they easily integrate into diverse designs requiring precision beam control. With strong polarization characteristics and tight beam divergence, they are perfect for applications needing consistent, high-quality light sources.
LDX Optronics' commitment to precision manufacturing and quality assurance ensures these diodes maintain consistent performance, making them an excellent choice for OEMs, researchers, and system integrators seeking robust and efficient laser solutions.
LDX-3A20-808: 808nm Multimode Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 0.808 um |
| Output Power: | 10000 mW |
| Emitter Size: | 200 um |
| Output From Fiber: | 8000 mW |
| Minimum Fiber Size (HHL & BTF): | 200 um |
| Minimum Fiber Size (9 Mm SMA): | 300 um |
| Operating Temperature: | 25 °C |
| Threshold Current (Typical): | 1450 mA |
| Operating Current (Typical): | 10000 mA |
| Operating Voltage (Typical): | 1.8 V |
| Beam Divergence (FWHM) θ//: | 7 |
| Beam Divergence (FWHM) θ⊥: | 28 |
| Spectral Width (FWHM): | 1.3 nm |
| Polarization: | TM |
| Acceptable Packages: | 3, 9 |
Features
- Wavelength Range: Covers 780 nm to 830 nm for broad application flexibility
- High Output Power: Engineered for efficient fiber coupling and free-space delivery
- Low Threshold Current: Reduces power consumption and thermal load
- Narrow Spectral Width: Provides high coherence and beam quality
- Multiple Packaging Options: Offered in HHL, BTF, and 9 mm SMA configurations
- Excellent Beam Stability: Strong polarization and low divergence for precise targeting
Applications
- Medical Imaging and Therapy: Supports diagnostic and treatment laser systems
- Industrial Sensing and Inspection: Enhances precision in optical measurement setups
- Optical Communication Systems: Ideal for short- and mid-range data transmission
- Research and Development: Suitable for laboratory and experimental setups
- Laser Pumping Applications: Reliable source for pumping fiber and solid-state lasers
Frequently Asked Questions
The wavelength of the LDX-3A20-808 laser diode is 808nm.
The LDX-3A20-808 laser diode produces 10000mW from a 200um emitter in the free space packages or 8000mW from the fiber in the fiber coupled packages.
The LDX-3A20-808 laser diode is suitable for diode laser solutions, scientific and industrial applications, and OEM applications.
Yes, custom packaging is available for the LDX-3A20-808 laser diode.
Yes, custom wavelengths and laser designs are available for the LDX-3A20-808 laser diode.
